Five Cores& Multi Cores Low Voltage Armoured Power Cable XLPE Sheated (LV/CU/XLPE/STA/NYBY/N2XBY))

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: ZR-YJV22-8.7/10KV-3*150MM2-#2988

Payment & Shipping Terms

Minimum Order Quantity: 200 meters

Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Get Best Price
High Light:

low voltage flexible cable

,

low voltage electrical cable

Conductor Material:
Copper/Aluminum
Jacket:
PVC
Insulation Material:
XLPE
Size:
1.5~1000mm2
Rated Voltag:
0.6kv/1kv
Type:
Low Voltage
Application:
Underground
Number Of Cores:
5cores
Conductor Material:
Copper/Aluminum
Jacket:
PVC
Insulation Material:
XLPE
Size:
1.5~1000mm2
Rated Voltag:
0.6kv/1kv
Type:
Low Voltage
Application:
Underground
Number Of Cores:
5cores
Five Cores& Multi Cores Low Voltage Armoured Power Cable XLPE Sheated (LV/CU/XLPE/STA/NYBY/N2XBY))

1.Quick Details


Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage
Application: Underground
Conductor Material: Copper/Aluminum
Jacket: PVC
Insulation color: Red, yellow, green all according to clients demand
Number of cores: 1-5cores
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

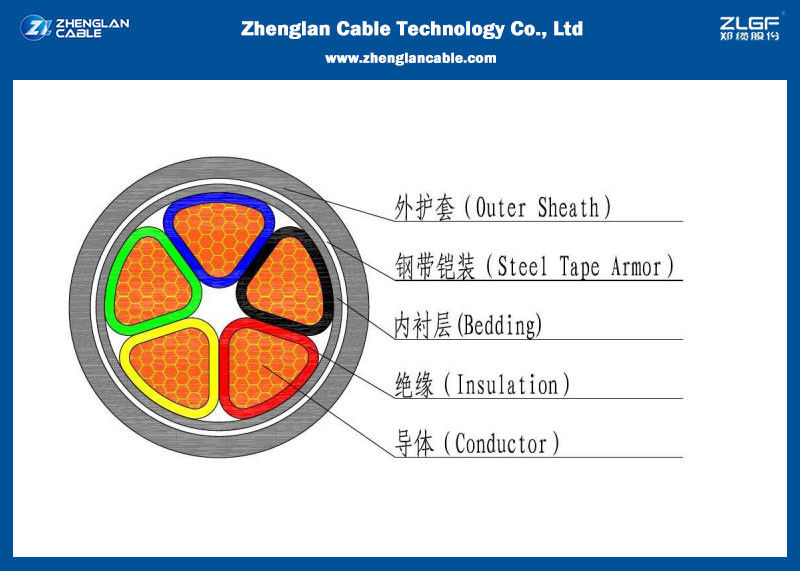

Construction:


Conductor : Annealed Copper Conductor as per IEC 60228
≤6mm2 solid (class 1) or stranded (class 2)
>6mm2 stranded (class 2)
Flexible conductor(class 5) optional.
Insulation : PVC(polyvinyl chloride) rated at 70 OC
Metallic Screen optional : Copper tape or copper wires braiding
Armored optional: :Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red

Application:
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.

Standard:
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided

    Model Description
    YJV(YJLV) Copper(Aluminum) core XLPE insulated PVC sheathed power cable
    YJV22(YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and PVC sheathed power cable
    YJV32(YJLV32) Copper(Aluminum) core XLPE insulated steel wire armoured and PVC sheathed power cable
    ZR-YJV(ZR-YJLV) Copper(Aluminum) core XLPE insulated flame retardant PVC sheathed power cable
    ZR-YJV22(ZR-YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and flame retardant PVC sheathed power cable
    ZR-YJV32(ZR-YJLV32) Copper(Aluminum) core XLPE insulated steel wire armoured and flame retardant PVC sheathed power cable
