Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: 0.6/1KV Armoured Aluminium Electric LV Power Cable （AL/PVC/XLPE/STA/NYBY/N2XBY)
Payment & Shipping Terms
Minimum Order Quantity: 200 meters
Price: 0.1-100USD/m
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 40KM/day
Conductor Material: |
Copper/Aluminum |
Jacket: |
PVC |
Insulation Material: |
XLPE |
Type: |
Low Voltage |
Application: |
Underground Power Line, Building Electric Line |
Number Of Cores: |
1-5 |
Rated Voltage: |
0.6/1KV |
Conductor Material: |
Copper/Aluminum |
Jacket: |
PVC |
Insulation Material: |
XLPE |
Type: |
Low Voltage |
Application: |
Underground Power Line, Building Electric Line |
Number Of Cores: |
1-5 |
Rated Voltage: |
0.6/1KV |
0.6/1KV Low Voltage Aluminium 300mm2 XLPE PVC Power Cable for Construction/Multi Cores Cables/Electric power cable
1.Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage
Application: Construction
Conductor Material: Copper/Aluminum
Jacket: PVC
Sizes: 1.5~1000mm2
Insulation color: Red, yellow, green all according to clients demand
Number of cores: 1-5cores
Rated voltage: 0.6/1KV
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

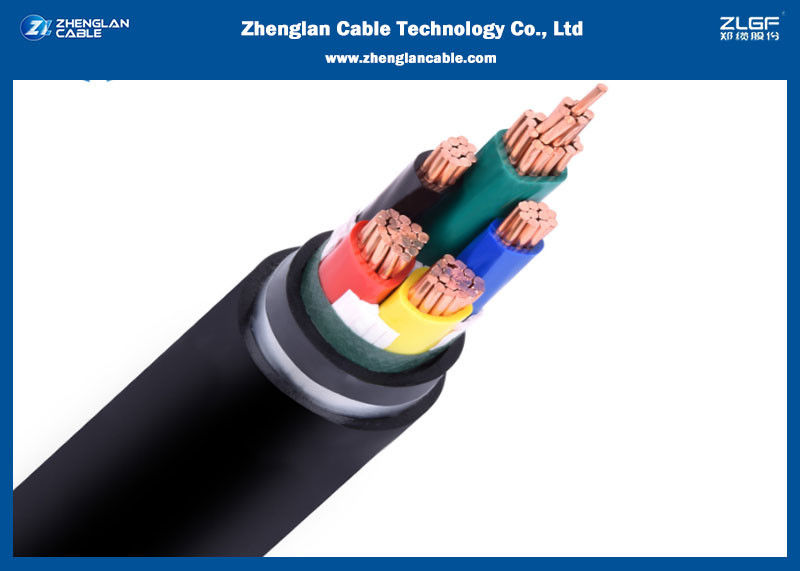

2. 0.6/1KV Armoured Aluminium Electric LV Power Cable (AL/PVC/XLPE/STA/NYBY/N2XBY) Cable structure
- Stranded bare copper conductor according to IEC 60228
- Core insulation of XLPE (cross-linked polyethylene)
- Color coded cores according to HD 308.S2
- PVC inner sheath
- Outer black sheath, PVC self-extinguishing and flame retardant,
test method IEC 60332-1 and BS 4066 PT1
3.Technical data
- Power and control cable according to BS 5467, IEC 60502
- Temperature at conductor max. +90 °C
- Temperature during installation from 0 °C to +70 °C
- Nominal voltage U o /U 0,6/1 kV
- Test voltage a.c. 3.5 kV
- Minimum bending radius 12x cable diameter
4.Application
These power and control armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards or subscriber networks, where mechanical damages to the cable may occur.
Why Choose Zhenglan Cable:
| Model | Description |
| YJV(YJLV) | Copper(Aluminum) core XLPE insulated PVC sheathed power cable |
| YJV22(YJLV22) | Copper(Aluminum) core XLPE insulated steel tape armoured and PVC sheathed power cable |
| YJV32(YJLV32) | Copper(Aluminum) core XLPE insulated steel wire armoured and PVC sheathed power cable |
| ZR-YJV(ZR-YJLV) | Copper(Aluminum) core XLPE insulated flame retardant PVC sheathed power cable |
| ZR-YJV22(ZR-YJLV22) | Copper(Aluminum) core XLPE insulated steel tape armoured and flame retardant PVC sheathed power cable |
| ZR-YJV32(ZR-YJLV32) |
Copper(Aluminum) core XLPE insulated steel wire armoured and flame retardant PVC sheathed power cable
|
0.6/1KV Armoured Aluminium Electric LV Power Cable (AL/PVC/XLPE/STA/NYBY/N2XBY) technical data
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal PVC Sheath Thickness |
Overall Diameter (Approx.) |
Weight of Cable (Approx.) |
| mm² | mm | mm | mm | mm | Kg/Km |
| 1x1.5 | 1.6 | 0.7 | 1.4 | 6.0 | 50 |
| 1x2.5 | 2.0 | 0.7 | 1.4 | 6.5 | 70 |
| 1x4 | 2.25 | 0.7 | 1.4 | 7.0 | 80 |
| 1x6 | 2.76 | 0.7 | 1.4 | 7.5 | 110 |
| 1x10 | 4.0 | 0.7 | 1.4 | 8.5 | 150 |
| 1x16 | 5.0 | 0.7 | 1.4 | 9.5 | 215 |
| 1x25 | 6.3 | 0.9 | 1.4 | 11.5 | 315 |
| 1x35 | 7.4 | 0.9 | 1.4 | 12.0 | 415 |
| 1x50 | 8.8 | 1.0 | 1.4 | 13.0 | 555 |
| 1x70 | 10.6 | 1.1 | 1.4 | 15.0 | 760 |
| 1x95 | 12.4 | 1.1 | 1.5 | 17.0 | 1025 |
| 1x120 | 14.0 | 1.2 | 1.5 | 18.5 | 1270 |
| 1x150 | 15 .5 | 1.4 | 1.6 | 21.5 | 1575 |
| 1x185 | 17.4 | 1.6 | 1.6 | 23.0 | 1955 |
| 1x240 | 20.3 | 1.7 | 1.7 | 26.0 | 2470 |
| 1x300 | 22.7 | 1.8 | 1.8 | 28.0 | 3155 |
| 1x400 | 25.4 | 2.0 | 1.9 | 32.0 | 4049 |
| 1x500 | 28.8 | 2.2 | 2.0 | 36.0 | 5100 |
| 1x630 | 30.4 | 2.4 | 2.2 | 40.0 | 6410 |
0.6/1KV Armoured Aluminium Electric LV Power Cable (AL/PVC/XLPE/STA/NYBY/N2XBY)
