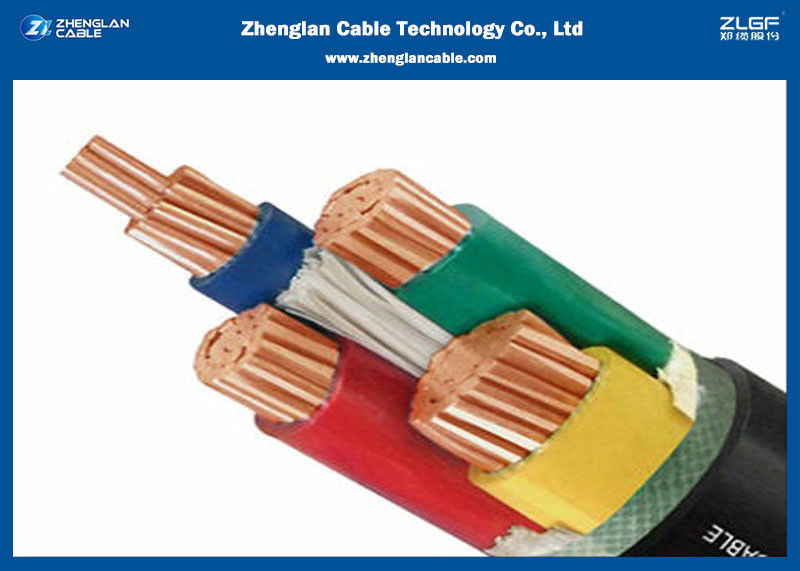

Armoured Low Smoke Zero Halogen Cables / PVC Jacket Power Cable

Product Details

Place of Origin: China

Brand Name: Zhenglan cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: 0.6/1KV Low Smoke Zero Halogen Cables Five Cores Cable

Payment & Shipping Terms

Minimum Order Quantity: 100 meters

Packaging Details: Wooden drum, wood and steel drum, as customer's request

Delivery Time: 15 days

Payment Terms: L/C, T/T,

Get Best Price
High Light:

halogen free flame retardant cables

,

low smoke halogen free cable

Material:
Copper
Armoured:
STA Or SWA
Cores:
4 Cores
Standard:
IEC 60502
Material:
Copper
Armoured:
STA Or SWA
Cores:
4 Cores
Standard:
IEC 60502
Armoured Low Smoke Zero Halogen Cables / PVC Jacket Power Cable

Chinese Supplier PVC Jacket Power Cable Low Smoke Zero Halogen Cables

Cu(AL)/XLPE/SWA/PVC LV armoured Cable Application
Cu(AL)/XLPE/SWA/PVC LV armoured Cable is a aluminum or copper cable with XLPE insulation SWA Armour. They are used for power networks, direct burial, outdoors, indoors and in cable ducts for electricity supply in low voltage installation system

Cu(AL)/XLPE/SWA/PVC LV armoured Cable construction
Conductors: Plain annealed stranded copper
Insulation: XLPE (Cross linked polyethylene)
Bedding: PVC (Polyvinyl-Chloride)
Armour/Protection: SWA (Galvanised single wire armour)
Sheath/Jacket: PVC (Polyvinyl-Chloride)
Colour: Black
Voltage: 600/1000v
Operating temperature: Maximum 90°C. Minimum bending 0°CArmoured Low Smoke Zero Halogen Cables / PVC Jacket Power Cable 0


Technical data
Operating voltage:1000 V
Test voltage: 3500V, according to IEC 60502
Operation temperature:–25°C to + 90°C
Permissible short therm: + 250°C
Bending radius:
1.5mm2 to 16mm2 - Fixed: 6 x overall diameter
25mm2 and above - Fixed: 8 x overall diameter

Core identification:
Two Core – Brown, Blue
Three Core – Brown, Black & Grey (Optional: Brown, Blue & Green/Yellow)
Four Core – Brown, Black, Grey & Blue (Optional: Brown, Black, Grey & Green/Yellow)
Five Core – Numbered Cores (Optional: Brown, Black, Grey, Blue + Green/Yellow)
Six Core and Above – Numbered Cores (optional numbered + Green and Yellow)

Standard:
BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V
IEC60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV
Flame Propagation Test to BS EN 60332-1-2 for single cableArmoured Low Smoke Zero Halogen Cables / PVC Jacket Power Cable 1

Cu(AL)/XLPE/SWA/PVC LV armoured Cable parameters

Nominal

Area

Approx

Conductor

Diameter

Nominal

Insulation

thickness

Nominal

bedding

thickness

Nominal

Steel Wire

dia.

Nominal

Sheath

thickness

Approx.

Overall

Diameter

Approx.

Weight

mm²mmmmmmmmmmmmKg/km
4x1.51.60.710.91.815415
4x2.520.710.91.817.5490
4x42.60.710.91.819600
4x63.10.710.91.820730
4x1040.711.251.823970
4x1650.711.61.8261520
4x256.30.911.61.8292010
4x357.40.911.61.9312560
4x508.8111.62.1363350
4x7010.61.11.222.2404680
4x9512.41.11.222.4445710
4x120141.21.42.52.5507500
4x15015.51.41.42.52.6559010
4x18517.41.61.42.52.86110820
4x24020.31.71.62.53.16913630
4x30022.71.81.62.53.27516820
4x40025.421.83.153.48322230
