Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: All Aluminum Alloy Conductor 630mm AAAC Bare Conductor Wire
Payment & Shipping Terms
Minimum Order Quantity: 3tons
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 100KM/Month
Material: |
Aluminum Alloy |
Size: |
From 16mm-630mm |
Quality: |
100% Test |
Standard:: |
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,CSA C49 |
Insulated: |
No |
Certificated: |
3C，ISO 9001:2015，ISO 14001:2005, CE |
Material: |
Aluminum Alloy |
Size: |
From 16mm-630mm |
Quality: |
100% Test |
Standard:: |
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,CSA C49 |
Insulated: |
No |
Certificated: |
3C，ISO 9001:2015，ISO 14001:2005, CE |

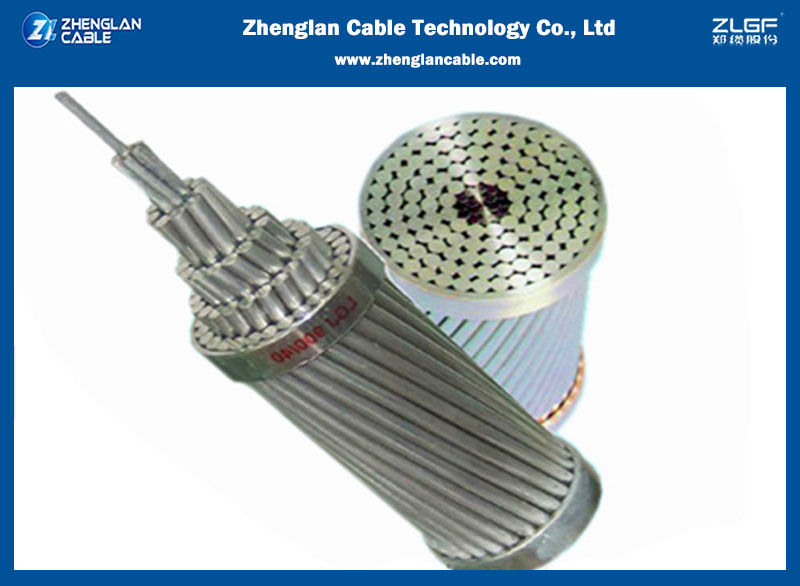

All Aluminum Alloy Conductor 630mm AAAC Bare Conductor Wire
All Aluminum Alloy Conductor 630mm AAAC Bare Conductor Wire are made out of high strength Aluminium-Magnesium-Silicon Alloy. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR. AAAC has a wide acceptance in the distribution and medium & high voltage transmission lines..
Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Type: Low Voltage
Application: Overhead
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
All Aluminum Alloy Conductor 630mm AAAC Bare Conductor Wire Technical parameters
| Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* |
| mm2 | No.x mm | mm | Kg/Km | KN | Ω/Km | A | |
| 16 | 18.4 | 7/1.83 | 5.49 | 50.4 | 5.43 | 1.7896 | 86 |
| 25 | 28.8 | 7/2.29 | 6.87 | 78.7 | 8.49 | 1.1453 | 113 |
| 40 | 46 | 7/2.89 | 8.67 | 125.9 | 13.58 | 0.7158 | 151 |
| 63 | 72.5 | 7/3.63 | 10.89 | 198.3 | 21.39 | 0.4545 | 200 |
| 100 | 115 | 19/2.78 | 13.9 | 316.3 | 33.95 | 0.2877 | 266 |
| 125 | 144 | 19/3.10 | 15.5 | 395.4 | 42.44 | 0.2302 | 305 |
| 160 | 184 | 19/3.51 | 17.55 | 506.1 | 54.32 | 0.1798 | 355 |
| 200 | 230 | 19/3.93 | 19.65 | 632.7 | 67.91 | 0.1439 | 407 |
| 250 | 288 | 19/4.39 | 21.95 | 790.8 | 84.88 | 0.1151 | 466 |
| 315 | 363 | 37/3.53 | 24.71 | 998.9 | 106.95 | 0.0916 | 535 |
| 400 | 460 | 37/3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 | 618 |
| 450 | 518 | 37/4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 | 663 |
| 500 | 575 | 37/4.45 | 31.15 | 1585.5 | 169.76 | 0.0577 | 706 |
| 560 | 645 | 61/3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 | 755 |
| 630 | 725 | 61/3.89 | 35.01 | 2000.7 | 213.9 | 0.0458 | 809 |
| 710 | 817 | 61/4.13 | 37.17 | 2254.8 | 241.07 | 0.0407 | 866 |
| 800 | 921 | 61/4.38 | 39.42 | 2540.6 | 271.62 | 0.0361 | 928 |
| 900* | 1036 | 91/3.81 | 41.91 | 2861.1 | 305.58 | 0.0321 | 992 |
| 1000* | 1151 | 91/4.01 | 44.11 | 3179 | 339.53 | 0.0289 | 1051 |
| 1120* | 1289 | 91/4.25 | 46.75 | 3560.5 | 380.27 | 0.0258 | 1118 |
| 1250* | 1439 | 91/4.49 | 49.39 | 3973.7 | 424.41 | 0.0231 | 1185 |
All Aluminum Alloy Conductor 630mm AAAC Bare Conductor Wire reference images
