Aluminum XLPE Low Voltage 0.6/1KV Triplex Service Drop Cable

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 0.6/1KV Three+1 Cores Power Cable (Unarmoured) XLPE Insulated

Payment & Shipping Terms

Minimum Order Quantity: 300 meters

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 12 days

Payment Terms: L/C, T/T,

Get Best Price
High Light:

0.6/1KV Triplex Service Drop Cable

,

XLPE Triplex Service Drop Cable

,

XLPE triplex service drop wire

Material:
99.99% Oxyzen Free Copper
Application:
Power Station
Insulation:
XLPE
Out Sheath Color:
Black Or Customized
Core:
3+1
Cable Drum Length:
Customized
Characted:
Unarmoured
Material:
99.99% Oxyzen Free Copper
Application:
Power Station
Insulation:
XLPE
Out Sheath Color:
Black Or Customized
Core:
3+1
Cable Drum Length:
Customized
Characted:
Unarmoured
Aluminum XLPE Low Voltage 0.6/1KV Triplex Service Drop Cable

Aluminum Conductor XLPE Insulated Low Voltage Triplex Service Drop Cable

Description:
0.6/1KV XLPE Insulated Cables (Unarmoured)

IEC60502,IEC60228,GB/T 12706.1-2008
CE,CCC,KEMA,ISO


Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Application:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request


Insulation:
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):
1 Core: Red or Black;   2 Cores: Red, Black;    3 Cores: Red, Yellow, Blue;   4 Cores: Red, Yellow, Blue, Black;     5 Cores: Red, Yellow, Blue, Black, Green;  Above 5 Cores: Black Cores with White numerals

Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.


Armour:
Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths:
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
Cable Parameters:
Three+1 Cores Power Cable (Unarmoured)

Nominal
Cross
Section

Diameter of
Conductor
(Approx.)

Nominal
Insulation
Thickness

Nominal
PVC Sheath
Thickness

Overall
Diameter
(Approx.)

Weight
of Cable
(Approx.)

mm²(3)mm(1)mm(3)mm(1)mmmmmmKg/Km
3x 16/105.04.00.70.71.820.0825
3x 25/166.35.00.90.71.822.81235
3x 35/167.45.00.90.71.824.81565
3x 50/258.86.31.00.91.828.52220
3x 70/3510.67.41.10.91.932.02925
3x 95/5012.48.81.112.137.53525
3x120/7014.010.61.21.12.241.54940
3x150/7015.510.61.41.12.345.06250
3x185/9517.412.41.61.12.550.57450
3x240/12020.314.01.71.22.656.09500
3x300/15022.715.51.81.42.864.512100
3x400/18525.417.42.01.63.170.018900

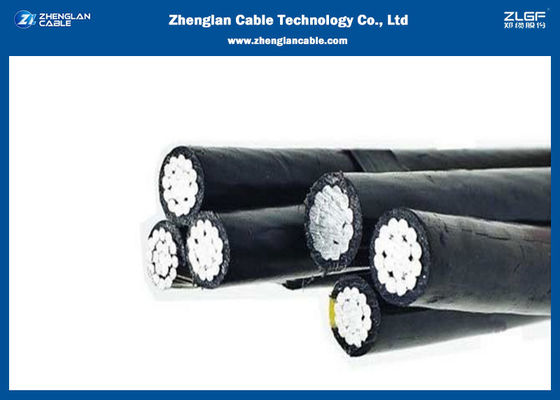

Aluminum XLPE Low Voltage 0.6/1KV Triplex Service Drop Cable 0
