11kv SAC MV IEC60502-2 Overhead Insulated Cable

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005

Model Number: MV overhead insulated Cable SAC cable

Payment & Shipping Terms

Minimum Order Quantity: 1000meters

Price: Negotiable

Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Supply Ability: 80Km/Month

Get Best Price
High Light:

IEC60502-2 Overhead Insulated Cable

,

11kv Overhead Insulated Cable

,

11kv sac cable

Name:
11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable
Structure:
AL / SC / XLPE / HDPE
Conductor Material:
Aluminum
Insulation Material:
XLPE
Outer Sheath Color:
Black
Application:
Overhead Transmission Use
Quality:
Confirm To IEC60502-2
Standard:
ISO 9001:2015
Name:
11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable
Structure:
AL / SC / XLPE / HDPE
Conductor Material:
Aluminum
Insulation Material:
XLPE
Outer Sheath Color:
Black
Application:
Overhead Transmission Use
Quality:
Confirm To IEC60502-2
Standard:
ISO 9001:2015
11kv SAC MV IEC60502-2 Overhead Insulated Cable

11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable



Description of 11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable



Construction: AL/SC/XLPE/HDPE
(1) Conductor: Aluminium (class 2, compacted circular)
(2) Conductor screen: Semi-conductive compound
(3) Insulation: XLPE
(4) Outer sheath: HDPE

 Cable identification:
- Conductor screen: black color
- Insulation: Natural color of XLPE
- Outer sheath: Black

11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable​ Characteristics:
- Rated voltage: 6.35/11(12)kV
- Max. conductor temperature in normal use: 90oC
- Min. bend radius: 8 x D (D: overall diameter of cable)



11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable application:
For used in primary aerial cable on pole.




Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA





11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable with reference to IEC60502-2

Nominal cross sectional area Diameter of conductor Thickness of insulation Thickness of outer sheath Approx. overall diameter DC resistance of conductor at 20oC Approx. weight
Mm2 mm mm mm mm Ω/km kg/km
35 6.90 3.4 1.5 18.7 0.868 299
50 8.15 3.4 1.6 20.2 0.641 366
70 9.75 3.4 1.7 22.0 0.443 449
95 11.45 3.4 1.7 23.8 0.320 550
120 12.85 3.4 1.8 25.3 0.253 641
150 14.30 3.4 1.8 26.8 0.206 753
185 15.95 3.4 1.9 28.6 0.164 885
240 18.25 3.4 1.9 30.9 0.125 1,092

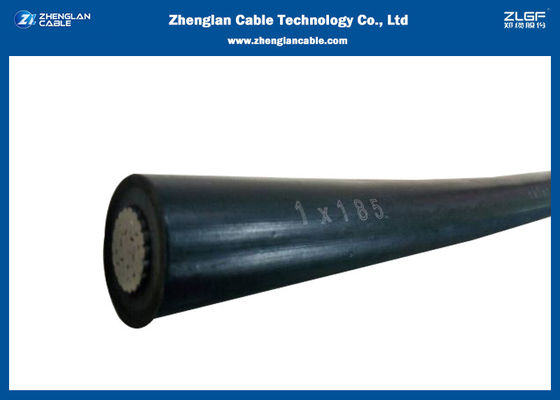

11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable images

11kv SAC MV IEC60502-2 Overhead Insulated Cable 0

11kv SAC MV IEC60502-2 Overhead Insulated Cable 1



11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable packages

overhead insulated cable packages
