Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: Service Drop Cable
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized
Delivery Time: 15-18 days
Payment Terms: T/T
Supply Ability: 100Km/Month
Conductor Material: |
Aluminum |
Insulation Material: |
Black XLPE |
Application: |
Overhead |
Quality: |
100% Test |
Standard: |
IEC60502-1 |
Structure: |
AL/XLPE |
Core Number: |
2core, 3core, 4core |
Voltage: |
0.6-1kv |
Conductor Material: |
Aluminum |
Insulation Material: |
Black XLPE |
Application: |
Overhead |
Quality: |
100% Test |
Standard: |
IEC60502-1 |
Structure: |
AL/XLPE |
Core Number: |
2core, 3core, 4core |
Voltage: |
0.6-1kv |
0.6 / 1 kv xlpe covered aluminum cable aerial bunched cable with neutral cable
Aerial Bundle Cables are cables for overhead line power, usually comes with combining multiple single core cables together. With applications including temporary power distribution to street lighting and secondary pole-to-pole service cables, they are lightweight stranded aluminium conductors, both single core and multi-cores. Whilst Aerial Bundle Cables are used in rural power distribution in some countries, they are more commonly used in temporary power installations such as on construction sites.
Insulation: XLPE, PE
GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
We can also manufacture ABC cable according to customer's special requirements.
core identification being provided by ribs on the insulation: Phases by longitudinal ribs (I, II, III) or 111, 222, 333
0.6 / 1 kv xlpe covered aluminum cable aerial bunched cable with neutral cable for overhead use parameters
| SI.No. | Description and Type of Cable | Number of Wires | Thickness of XLPE Insulation | Approx overall Diameter | Approx Weight of Cable | Breaking Load of Messenger | Maximum D.C Resistance | AC Current Rating | |||
| Phase | Messenger | Phase | Messenger | Phase | Messenger | Amps | |||||
| mm | mm | mm | Kg/KM | KN (min) | Ohms/Km | In air at 40°C | |||||
| With insulated messenger conductor | |||||||||||
| 1 | 3 C x 16 mm2 + 25 mm2 (insulated)+16 mm2 | 7 | 7 | 1.2 | 1.2 | 23.5 | 369 | 7 | 1.91 | 1.38 | 62 |
| 2 | 3 Cx25 mm2 + 25 mm2 (insulated)+16 mm2 | 7 | 7 | 1.2 | 1.2 | 25 | 457 | 7 | 1.2 | 1.38 | 82 |
| 3 | 3Cx35 mm2 + 25mm2(insulated)+16mm2 | 7 | 7 | 1.2 | 1.2 | 27.5 | 554 | 7 | 0.868 | 1.38 | 103 |
| 4 | 3 C x 35 mm2 + 35 mm2 (insulated)+16 mm2 | 7 | 7 | 1.2 | 1.2 | 28.4 | 586 | 10.1 | 0.868 | 0.986 | 103 |
| 5 | 3Cx50 mm2 + 35mm2(insulated)+16mm2 | 7 | 7 | 1.5 | 1.2 | 32.5 | 760 | 10.1 | 0.641 | 0.986 | 127 |
| 6 | 3Cx70 mm2 + 50mm2(insulated)+16mm2 | 7 | 7 | 1.5 | 1.5 | 37.5 | 1007 | 14 | 0.443 | 0.689 | 154 |
| 7 | 3Cx70 mm2 + 70mm2(insulated)+16mm2 | 7 | 7 | 1.5 | 1.5 | 39.5 | 1070 | 19.7 | 0.443 | 0.492 | 154 |
| 8 | 3 C x 95 mm2 + 70 mm2 (insulated)+16 mm2 | 19 | 7 | 1.5 | 1.5 | 42.5 | 1304 | 19.7 | 0.32 | 0.492 | 188 |
| 9 | 3 C x 120 mm2 + 70 mm2 (insulated)+16 mm2 | 19 | 7 | 1.6 | 1.5 | 46.8 | 1550 | 19.7 | 0.253 | 0.492 | 218 |
| 10 | 3 C x 150 mm2 + 70 mm2 (insulated)+16 mm2 | 19 | 7 | 1.8 | 1.5 | 50.8 | 1860 | 19.7 | 0.206 | 0.492 | 248 |

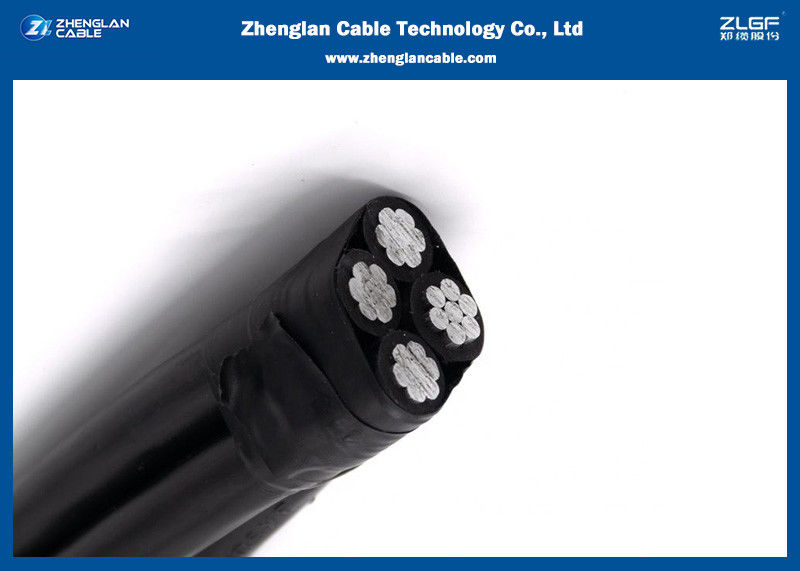

0.6 / 1 kv xlpe covered aluminum cable aerial bunched cable with neutral cable images
0.6 / 1 kv xlpe covered aluminum cable aerial bunched cable with neutral cable packages
About Zhenglan Cable Technology CO., Ltd.
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.
0.6 / 1 kv xlpe covered aluminum cable aerial bunched cable with neutral cable FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
For ABC cable MOQ is 1000m.
