Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015, ISO 14001:2005, CE;
Model Number: AAC 500mm²
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15 days
Payment Terms: L/C, T/T,
Material: |
Hard Drawn Aluminum Wire |
Out Sheath Color: |
None |
Core: |
Normal OR CUSTOMIZED |
Cable Drum Length: |
Wooden |
Characted: |
Bare Conductor |
Nominal Area: |
10-1500sqmm |
Jacket: |
None |
Application: |
Overhead Line |
Material: |
Hard Drawn Aluminum Wire |
Out Sheath Color: |
None |
Core: |
Normal OR CUSTOMIZED |
Cable Drum Length: |
Wooden |
Characted: |
Bare Conductor |
Nominal Area: |
10-1500sqmm |
Jacket: |
None |
Application: |
Overhead Line |

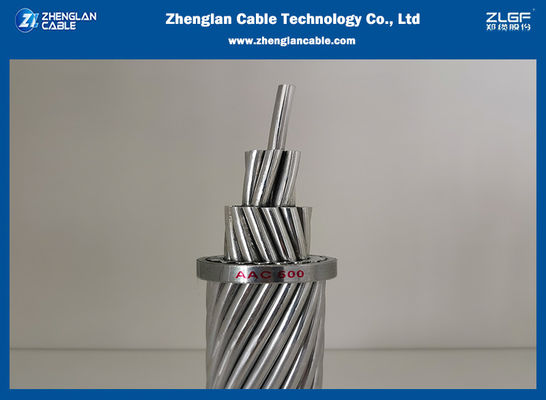

500sqmm AAC All Aluminum Conductor For Overhead Transmission Lines ISO 9001:2015
Applications
Stranded 1350 aluminum conductors shown in this section of data are classified as follows:
Class AA For bare conductors usually used in overhead lines.
Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.
Construction
Aluminum alloy 1350-H19 wires, concentrically stranded.
STANDARD
ASTMB231,BS215 Part1,DIN48201,IEC61089
IEC 61089
|
Specification No.
|
Nominal cross section mm²
|
No.of single wire
|
Diameter mm |
Unit length weight kg/km
|
Rating tension resistance kN
|
DC resistance 20℃ Ω/km
|
|
| Single wire | Stranded wire | ||||||
|
10 16 25 40 63 |
10 16 25 40 63 |
7 |
1.35 1.71 2.13 2.7 3.39 |
4.05 5.12 6.40 8.09 10.2 |
27.4 43.8 68.4 109.4 172.3 |
1.95 3.04 4.50 6.80 10.39 |
2.8633 1.7896 1.1453 0.7158 0.4545 |
|
100 125 160 200 250 |
100 125 160 200 250 |
19
|
2.59 2.89 3.27 3.66 4.09 |
12.9 14.5 16.4 18.3 20.5 |
274.8 343.6 439.8 549.7 687.1 |
17.00 21.25 26.40 32.00 40.00 |
0.2877 0.2302 0.1798 0.1439 0.1151 |
|
315 400 450 500 560 |
315 400 450 500 560 |
37 |
3.29 3.71 3.94 4.15 4.39 |
23.0 26.0 27.5 29.0 30.7 |
867.9 1102.0 1239.8 1377.6 1542.9 |
51.97 64.00 72.00 80.00 89.60 |
1.0916 0.0721 0.0641 0.0577 0.0515 |
|
630 710 800 900 1000 |
630 710 800 900 1000 |
61 |
3.63 3.85 4.09 4.33 4.57 |
32.6 34.6 36.8 39.0 41.1 |
1738.3 1959.1 2207.4 2483.3 2759.2 |
100.80 113.60 128.00 144.00 160.00 |
0.0458 0.0407 0.0361 0.0321 0.0289 |
|
1120 1250 1400 1500 |
1120 1250 1400 1500 |
91 |
3.96 4.18 4.43 4.58 |
43.5 46.0 48.7 50.4 |
3093.5 3452.6 3866.9 4143.1 |
179.2 200.00 224.00 240.00 |
0.0258 0.0231 0.0207 0.0193 |
