600V 1Cx35mm2 Aluminium Conductor Wire IEC60502-1 Al/XLPE Covered Line

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005; CCC

Model Number: 600 V,1Cx95mm2 Al/XLPE Insulated Cable overhead insulated cable IEC60502-1

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T

Supply Ability: 15,000 KM/Year

Get Best Price
High Light:

1Cx35mm2 Aluminium Conductor Wire

,

600V Aluminium Conductor Wire

,

1Cx35mm2 600v aluminum wire

Insulation Material:
XLPE Or PVC
Conductor Material:
Aluminum
Application:
Overhead
Quality:
100% Test
Standard:
GB/T 12527-2008, IEC60502-1
Structure:
AL/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
Insulation Material:
XLPE Or PVC
Conductor Material:
Aluminum
Application:
Overhead
Quality:
100% Test
Standard:
GB/T 12527-2008, IEC60502-1
Structure:
AL/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
600V 1Cx35mm2 Aluminium Conductor Wire IEC60502-1 Al/XLPE Covered Line

600 V,1Cx35mm2 Al/XLPE Covered Line Wire Aluminum Conductor IEC60502-1​



Covered Line Wire Aluminum Conductor IEC60502-1 parameters

Nominal cross sectional area(mm²) Wire Minimum no. Conductor diameter(mm)

Nominal Insulation thickness

(mm)

Single wire average nominal diameter maximum value(mm) Max. Conductor resistance at 20 ℃(Ω/km) Min insulation resistance at rated working temper(MΩ*km Single wire tensile strength(N)
Aluminum Aluminum alloy 70℃ 90℃ Aluminum Aluminum alloy
10 6 3.8 1.0 6.5 3.08 3.574 0.0067 0.67 1650 2514
16 6 3.8 1.2 8.0 1.91 2.217 0.0065 0.65 2517 4022
25 6 6.0 1.2 9.4 1.20 1.393 0.0054 0.54 3762 6284
35 6 7.0 1.4 11.0 0.868 1.007 0.0054 0.54 5177 8800
50 6 8.4 1.4 12.3 0.641 0.744 0.0046 0.46 7011 12569
70 12 10.0 1.4 14.1 0.443 0.514 0.0040 0.40 10354 17596
95 15 11.6 1.6 16.5 0.320 0.371 0.0039 0.39 13727 23880
120 15 13.0 1.6 18.1 0.253 0.294 0.0035 0.35 17339 30164
150 15 14.6 1.8 20.2 0.206 0.239 0.0035 0.35 21033 37706
185 30 16.2 2.0 22.5 0.164 0.190 0.0035 0.35 26732 46503
240 30 18.4 2.2 25.6 0.125 0.145 0.0034 0.34 34679 60329
300 30 20.8 2.2 27.2 0.100 0.116 0.0033 0.33 43349 75411
400 53 23.2 2.2 30.7 0.0778 0.0904 0.0032 0.32 55707 100548



Conductor:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.



Insulation: PVC, XLPE, PE



Standards:
GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.



Application:

APPLICATION: Used primarily for overhead secondary distribution lines.



Below construction are also commonly used around the world.

A) Duplex Service Drop
   Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For       service at 600 volts or lower at a conductor temperature of 75 maximum.



B) Triplex Service Drop
    Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase       to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .

   3 cores consisting of standard aluminium conductors, insulated with XLPE insulation
   + One sheath lighting aluminium conductor with XLPE insulation(optional)
  + One messenger Al-alloy conductor (bare or covered)
  The messenger conductor can be of galvanised steel wire also.
   The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

It meets or exceeds the following specifications:



  C ) Quadruplex Service Drop
    Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where               connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at           conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.



ALL- ALUMINUM parameters

CODE



WORD

SIZE (AWG OR KCMIL) STRAND- ING COVER THICKNESS (MILS) TOTAL DIAMETER (MILS) RATED STRENGTH (LBS.) WEIGHT PER 1000 FT. (LBS.) ALLOWABLE



AMPACITY+

XLP Conv. Poly HD Poly
ALL- ALUMINUM
Apple 6 1 30 222 445 31 31 105
Plum 6 7 30 238 510 56 34 105
Pear 4 1 30 264 710 47 47 135
Apricot 4 7 30 285 790 51 51 140
Cherry 2 1 45 348 1100 78 78 180
Peach 2 7 45 373 1220 84 84 85 180
Nectarine 1 7 45 408 1470 104 104 210
Quince 1/0 7 60 477 1790 136 136 240
Orange 2/0 7 60 522 2260 167 167 280
Fig 3/0 7 60 570 2740 205 205 320
Olive 4/0 7 60 626 3450 253 253 370
Pomegranate 4/0 19 60 632 3620 247 247 370
Mulberry 266.8 19 60 694 4470 305 305 430
Annona 336.4 19 60 765 5540 377 377 495
Molles 397.5 19 80 861 6400 462 462 545
Huckleberry 477 37 80 931 7820 538 538 610
Paw Paw 556.5 37 80 992 8950 619 619 670
Breadfruit 636.0 61 95 1081 10500 715 715 720
Persimmon 795 61 95 1186 12900 877 877 881 825
Grapefruit 1033.5 61 95 1326 16500 1118 970

+Ampacity ratings based on 75°C conductor temperature 25°C ambient temperature elevation – sea level. Emissivity 0.91 coefficient of absorption 0.95. Thermal resistivity of covering – 375°C M /Watt-CM.



Wind speed 2 ft./sec. in sun.





Product show

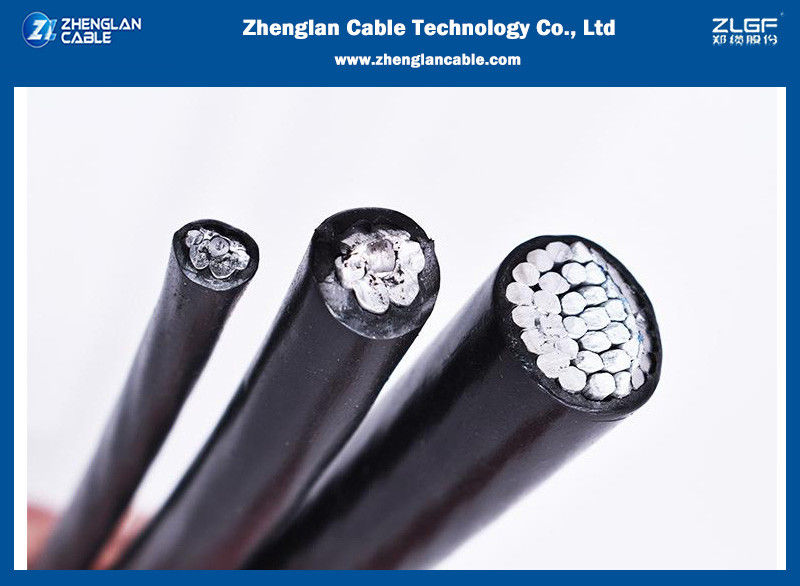

600V 1Cx35mm2 Aluminium Conductor Wire IEC60502-1 Al/XLPE Covered Line 0

600V 1Cx35mm2 Aluminium Conductor Wire IEC60502-1 Al/XLPE Covered Line 1

600V 1Cx35mm2 Aluminium Conductor Wire IEC60502-1 Al/XLPE Covered Line 2





600V 1Cx35mm2 Aluminium Conductor Wire IEC60502-1 Al/XLPE Covered Line 3
