RHZ1-OL-AL CWS Screened XLPE LSOH Cable 18/30kv 1x240sqmm

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 1x240sqmm power cable

Payment & Shipping Terms

Minimum Order Quantity: 3000m

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15 Working Days

Payment Terms: L/C, T/T, Western Union

Get Best Price
High Light:

CWS Screened XLPE LSOH Cable

,

18/30kv XLPE LSOH Cable

,

RHZ1-OL-AL ls0h cable

Material:
Cu
Out Sheath Color:
Black
Core:
1C
Cable Drum Length:
As Per Request
Characted:
Unarmored
Specification:
Al/xlpe/cws/lsoh
Referece Standard:
IEC60502-2
Insulation:
XLPE
Material:
Cu
Out Sheath Color:
Black
Core:
1C
Cable Drum Length:
As Per Request
Characted:
Unarmored
Specification:
Al/xlpe/cws/lsoh
Referece Standard:
IEC60502-2
Insulation:
XLPE
RHZ1-OL-AL CWS Screened XLPE LSOH Cable 18/30kv 1x240sqmm

RHZ1-OL-AL CWS Screened XLPE LSOH Cable 18/30kv 1x240sqmm



Applications:

RHZ1-OL-AL XLPE insulated, CWS screened, LSOH sheathed cable 18/30kv 1x240sqmm IEC60502-2 are designed for distribution of electrical power with nominal voltage Uo/U ranging from 12/20(24)KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.



Construction:

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.



Conductors

Either aluminium or copper conductors are used. Conductors will be circular, compacted & stranded and shall comply with IEC 60228 class 2.





RHZ1-OL-AL XLPE insulated, CWS screened, LSOH sheathed cable 18/30kv 1x240sqmm reference technical data sheets:



Nom.

Cross-

Section

Area

  Unarmoured Cables Aluminium Wire Armoured Cables

Nom.

Insulation

Thickness

Copper

Tape

Thickness

Copper

Wire

Screen

Area*

Nom.

Sheath

Thickness

Approx.

Overall

Diameter



Nom.

Bedding

Thickness

Armour

Wire

Size

Nom.

Sheath

Thickness

Approx.

Overall

Diameter



mm² mm mm mm² mm mm kg/km mm mm mm mm kg/km
25 4.5 0.1 16 1.8 22 640 480 1.2 1.6 1.8 28 1020 860
35 4.5 0.1 16 1.8 23 760 540 1.2 1.6 1.9 29 1170 950
50 4.5 0.1 16 1.8 24 900 610 1.2 1.6 1.9 30 1340 1040
70 4.5 0.1 16 1.8 26 1140 710 1.2 1.6 2.0 32 1610 1190
95 4.5 0.1 16 1.8 27 1420 830 1.2 2.0 2.1 35 2020 1430
120 4.5 0.1 16 1.9 29 1700 950 1.2 2.0 2.1 36 2310 1570
150 4.5 0.1 25 1.9 31 1990 1070 1.2 2.0 2.2 38 2660 1740
185 4.5 0.1 25 2.0 32 2380 1230 1.2 2.0 2.2 39 3070 1920
240 4.5 0.1 25 2.1 35 3010 1490 1.2 2.0 2.3 42 3750 2240
300 4.5 0.1 25 2.1 37 3620 1720 1.3 2.5 2.4 46 4590 2690
400 4.5 0.1 35 2.2 41 4490 2070 1.3 2.5 2.5 49 5550 3120
500 4.5 0.1 35 2.3 43 5460 2460 1.3 2.5 2.6 52 6590 3600
630 4.5 0.1 35 2.4 48 6790 2590 1.4 2.5 2.7 57 8060 4110



Nom.

Cross-

Section

Area

  Unarmoured Cables Aluminium Wire Armoured Cables


Nom.

Insulation

Thickness

Copper

Tape

Thickness

Copper

Wire

Screen

Area*

Nom.

Sheath

Thickness

Approx.

Overall

Diameter

Weight

Nom.

Bedding

Thickness

Armour

Wire

Size

Nom.

Sheath

Thickness

Approx.

Overall

Diameter

Weight
            CU AL         Cu AL
mm² mm mm mm² mm mm kg/km mm mm mm mm kg/km
50 8.0 0.1 16 2.0 31 1250 960 1.2 2.0 2.2 38 1910 1640
70 8.0 0.1 16 2.0 34 1510 1090 1.2 2.0 2.3 41 2240 1820
95 8.0 0.1 16 2.1 35 1830 1240 1.2 2.0 2.3 42 2570 1980
120 8.0 0.1 16 2.1 37 2110 1360 1.3 2.5 2.4 45 3060 2310
150 8.0 0.1 25 2.2 38 2420 1510 1.3 2.5 2.5 47 3430 2510
185 8.0 0.1 25 2.2 40 2830 1680 1.3 2.5 2.5 50 3890 2720
240 8.0 0.1 25 2.3 43 3500 1980 1.4 2.5 2.6 52 4630 3120
300 8.0 0.1 25 2.4 45 4150 2250 1.4 2.5 2.7 54 5330 3430
400 8.0 0.1 35 2.5 49 5070 2640 1.5 2.5 2.8 58 6360 3930
500 8.0 0.1 35 2.6 52 5945 2965 1.6 2.5 2.9 61 7670 4490
630 8.0 0.1 35 2.7 56 7445 3555 1.7 2.5 3.0 65 8870 5020



RHZ1-OL-AL XLPE insulated, CWS screened, LSOH sheathed cable 18/30kv 1x240sqmm pictures:

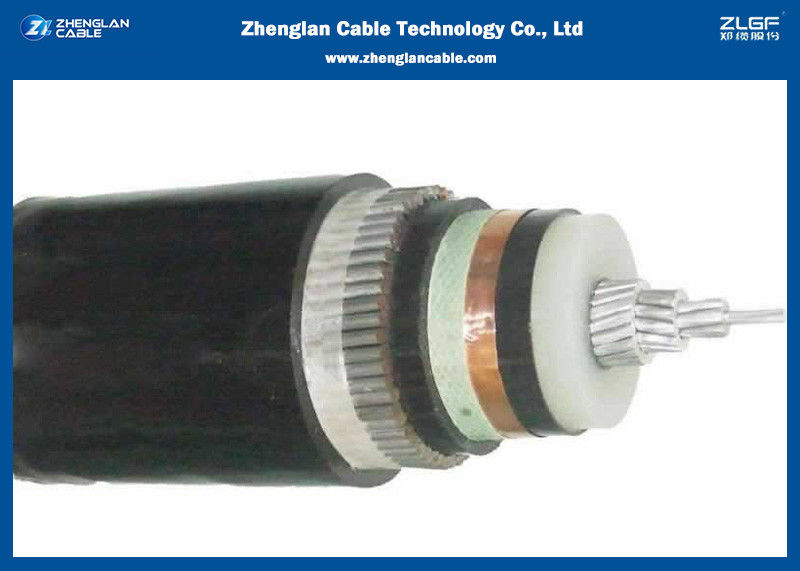

single core MV cable 1x150



RHZ1-OL-AL XLPE insulated, CWS screened, LSOH sheathed cable 18/30kv 1x240sqmm Package:



RHZ1-OL-AL CWS Screened XLPE LSOH Cable 18/30kv 1x240sqmm 1



Testing:
