3 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: medium voltage copper cable 3Cx95sqmm IEC60502-2 CU-XLPE-STA-PVC

Payment & Shipping Terms

Minimum Order Quantity: 1500m

Price: Negotiable

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 10-15 workdays for bulk order

Payment Terms: L/C, T/T,, Western Union

Get Best Price
High Light:

3 Core Medium Voltage Power Cables

,

STA Medium Voltage Power Cables

,

3c PVC Armored Electrical Cable

Material:
CU
Out Sheath Color:
Black
Core:
3 Core
Cable Drum Length:
As Per Request
Characted:
STA
Specification:
Cu/xlpe/sta/pvc
Name:
Medium Voltage Copper Cable 3Cx95sqmm MV Copper Cable IEC60502-2 Cu-xlpe-sta-pvc
Referece Standard:
IEC60502-2
Material:
CU
Out Sheath Color:
Black
Core:
3 Core
Cable Drum Length:
As Per Request
Characted:
STA
Specification:
Cu/xlpe/sta/pvc
Name:
Medium Voltage Copper Cable 3Cx95sqmm MV Copper Cable IEC60502-2 Cu-xlpe-sta-pvc
Referece Standard:
IEC60502-2
3 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored

medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc APPLICATIONS:



This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.



STANDARD:

International: IEC 60502-2(3.6/6KV to 18/30KV)



Cable Construction

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.



Conductors

Copper conductor, circular stranded compacted, water blocked.



Conductor Screen

Extruded semi-conductive compound.



Insulation

XLPE(Cross-linked polyethylene)



Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.



Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.



Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.



Over Sheath

PVC, FR-PVC, PE or LSOH



Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.





medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc ​reference technical parameters



Three core 6/10kv without armor

Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 3.4 0.1 16 14.3 1.6 41 2400 1900
35 7.10 3.4 0.1 16 15.3 1.6 43 2800 2200
50 8.25 3.4 0.1 16 16.5 1.7 46 3400 2500
70 9.90 3.4 0.1 16 18.1 1.7 50 4200 2900
95 11.7 3.4 0.1 16 19.9 1.8 54 5300 3400
120 13.3 3.4 0.1 16 21.3 1.8 57 6200 3900
150 14.3 3.4 0.1 25 22.5 1.9 60 7200 4400
185 16.3 3.4 0.1 25 24.5 1.9 64 8600 5100
240 18.7 3.4 0.1 25 26.9 2.0 70 10700 6100
300 20.9 3.4 0.1 25 29.1 2.1 75 12900 7100
400 23.7 3.4 0.1 25 31.9 2.2 81 15900 8500



Three core 8.7/15kv without armor

Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 4.5 0.1 16 16.5 1.7 46 3500 2400
35 7.10 4.5 0.1 16 17.5 17 48 3800 2600
50 8.25 4.5 0.1 16 18.7 1.7 51 4400 3000
70 9.90 4.5 0.1 16 20.3 1.8 55 4200 2900
95 11.7 4.5 0.1 16 22.1 1.8 59 5300 3400
120 13.1 4.5 0.1 16 23.5 1.8 62 6400 4000
150 14.3 4.5 0.1 25 24.7 1.9 65 7400 4500
185 16.3 4.5 0.1 25 26.7 1.9 69 10000 5800
240 18.7 4.5 0.1 25 29.1 2.0 75 12200 6800
300 20.9 4.5 0.1 25 31.3 2.1 80 14400 7900
400 23.7 4.5 0.1 35 34.1 2.2 87 17500 9300





medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc images

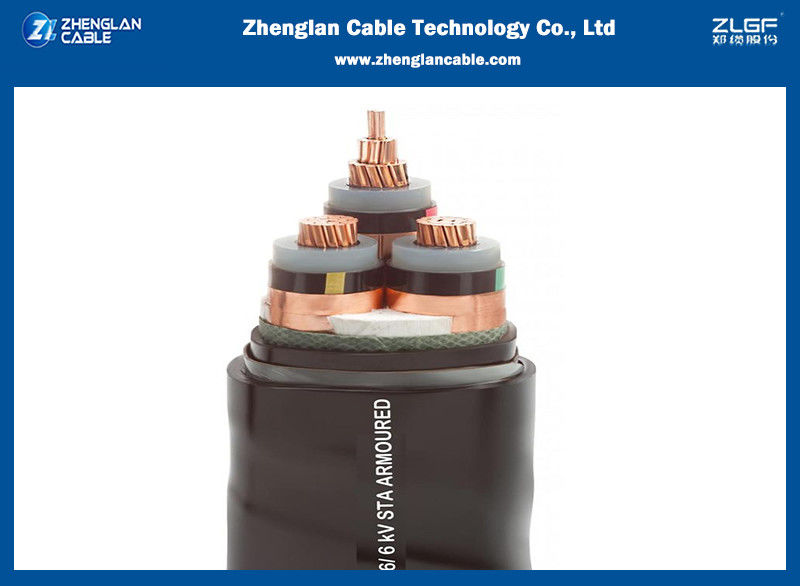

3 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored 03 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored 1





medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc​ ​​​​ Package

3 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored 2



Cable testing

3 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored 3
