Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: GSW 50mm2 Extra High Strengh galvanized steel wire strand overhead bare conductor ASTM A363
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 30,000 ton/year
Material: |
Galvanized Steel Wire &strand |
Standard:: |
ASTM |
Brand: |
Zhenglan Cable |
Wire Gauge: |
Single Steel Diameter Size 1.4-4.8mm |
Material: |
Galvanized Steel Wire &strand |
Standard:: |
ASTM |
Brand: |
Zhenglan Cable |
Wire Gauge: |
Single Steel Diameter Size 1.4-4.8mm |
GSW 50mm2 Extra High Strengh galvanized steel wire strand overhead bare conductor ASTM A363
Application
Galvanized steel wire are usually made up of 6 ,19 or 37 zinc-coated steel wires. They are suitable for power transmission lines, overhead conductor, communication cable, the power distribution poles, messenger strand,stay wire / earth wire / guy wire, ACSR etc.
Available size and type
(1)Galvanized steel wire :Φ1.44-4.77 mm
(2)Galvanized strand:7 wires,19 wires, 37 wires,Φ1.57-4.0 mm
(3)Armoring steel wire 0.9mm and above
STANDARD
Basic design to A475 or A363 or ASTM B498 or BS EN 50189 standards
1.Material: high carbon steel wire
2.Galvanized steel wire size: Φ1.44-4.77 mm.
3.Strand size:
7 wires of singer diameter 1.44 mm -4.2 mm;
19 wires of singer diameter 1.44 mm-3.5 mm;
37 wires of singer diameter 1.44 mm-3.5mm;
4.Tensile strength: different Grade from min.1470 N/ ㎡ to min.1960N/㎡
5.Zinc coating According to ASTM A475 clsA
6.Packing: larger coil,as per customer's requirement
GSW 50mm2 Extra High Strengh galvanized steel wire strand overhead bare conductor ASTM A363 Date Sheets:
Nominal Cross Section Area | No. | Dia.Of Wire | Overall Diameter | Weight of Conductor | Breaking Load |
mm2 | No. | mm | mm | kg/km | kN |
50 | 7 | 2.90 | 8.70 | 366 | 52.17 |
50 | 19 | 1.80 | 9.00 | 384 | 53.35 |

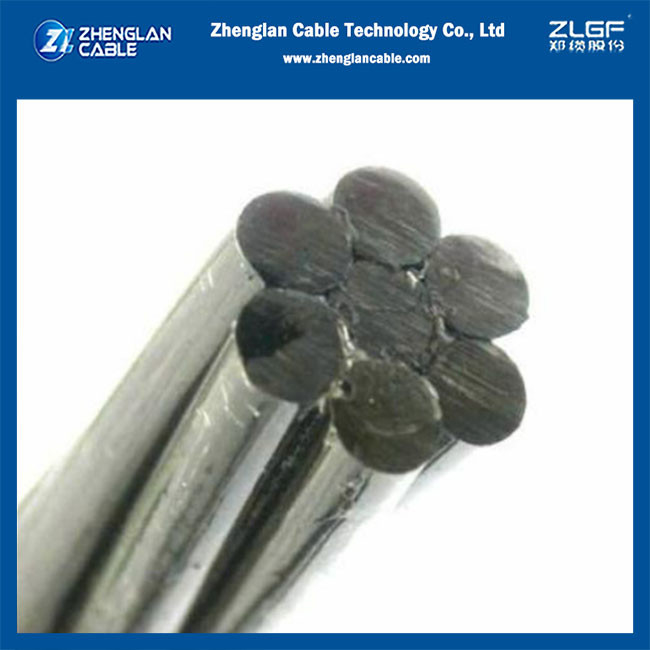

GSW 50mm2 Extra High Strengh galvanized steel wire strand overhead bare conductor ASTM A363 Product Image:
