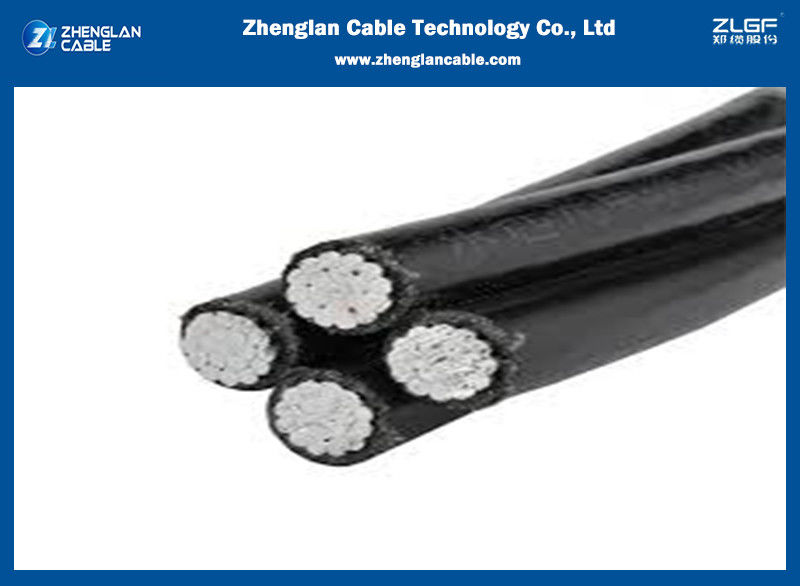

1kv Aerial Bundled Cable Cond. Al 3x70+1x50mm2 Aislados Quadruplex Service Drop Cable
Contact Person : Linda Yang
Phone Number : +86 16638166831
WhatsApp : +8616638166831
|Minimum Order Quantity :||300 meters||Price :||Negotiable|
|Packaging Details :||Wooden drum, wooden-steel drum, coil or plastic drum or customized||Delivery Time :||15-25 days|
|Payment Terms :||T/T, L/C,||Supply Ability :||100Km/Month|
|Place of Origin:||Henan, China||Brand Name:||Zhenglan Cable|
|Certification:||3C，ISO 9001:2015，ISO 14001:2005||Model Number:||Aerial Insulated Cable|
|Name:||Aerial Bundled Cables||Insulation Material:||XLPE|
|Quality:||100% Test||Model:||ABC Cable|
|Standard:||ISO 9001:2015||Structure:||AL/XLPE Or PVC|
Quadplex XLPE Aerial Bundled Cables,
ISO 9001:2015 Aerial Bundled Cables,
Quadplex XLPE aerial bundle conductor
Aluminum Duplex Triplex Quadplex XLPE Aerial Bundled Cables ISO 9001:2015
Aerial bundled cable is weatherproof PVC, PE and XLPE insulated overhead cable under AC rated voltage of 1kv in overhead power line. 0.6/1kv Aerial Insulated Cable consists of Aluminum, Hard Copper or Soft Copper, Aluminum alloy Core, PVC/PE/XLPE Insulation
Place of Origin:CHINA
Model Number:aerial bundle cable
Type:Low Voltage, low voltage overhead abc cable
Conductor Material: Aluminum
Insulation Material: XLPE
Product name:0.6/1kv aluminum aerial cable
Supply Ability:100000Meter per Month
|Nominal Area||Number /Dia.||Insulation Thickness||Dcresistance PHASE||NEUTRAL Rated Strength kn||Delivery Lerngth|
|mm2||mm||mm||& Ω /km||AAC||AAAC||km|
|Phase Conductor||Cross Section (mm)||25||35||50||70||35||70||70|
|Number of Wires||7||7||7||12||7||12||12|
|Insulation Thickness (mm)||1.4||1.6||1.6||1.8||1.6||1.8||1.8|
|D.C.Resistance At 20 ℃(Ohm/km)||1.2||0.868||0.641||0.443||0.868||0.443||0.443|
|Minium Rated Strength(daN)||300||-||-||-||-||-||-|
|Messenger||Cross Section (mm)||54.6||54.6||54.6||54.6||54.6||54.6||70|
|Number of Wires||7||7||7||7||7||7||7|
|Insulation Thickness (mm)||1.6||1.6||1.6||1.6||1.6||1.6||1.5|
|D.C.Resistance A 20 ℃( Ohm/km)||0.63||0.63||0.63||0.63||0.63||0.63||0.5|
|Minium Rated Strength(daN)||1660||1660||1660||1660||1660||1660||2050|
|Public Lighting||Cross Section (mm)||-||-||-||-||16||16||-|
|Number of Wires||-||-||-||-||7||7||-|
|Insulation Thickness (mm)||-||-||-||-||1.2||1.2||-|
|D.C.Resistance At 20 ℃(Ohm/km)||-||-||-||-||1.91||1.91||-|
|Minium Rated Strength(daN)||-||-||-||-||190||190||-|
Ariel bunded cable Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Public lighting: Aluminium 1350 insulated with cross-linked polyethylene XLPE.
4. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.
5. Core identification: rib markings
Aerial bundled cable reference STANDARDS
IEC 60228; IEC 60811-201; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-502; IEC 60811-507; IEC 60811-511; ASTM B 231; ICEA S-76-474;
NTP 370.254; NTP 370.258; NTP-IEC 60228; NFC 33-209
(Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) - Year - Sequential length.
0.6/1kv CAAI cable Application:
This cable usually used for urban and rural overhead secondary distribution networks, with voltages up to 1000 V. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
