Product Details:
|
Insulation Material: | XLPE | Conductor Material: | Cu/AL |
---|---|---|---|
Application: | Power Station | Type: | Low Voltage |
Standards: | IEC60502, NF C33-209, GB 12527-90 ASTM | Rated Voltage: | 0.6/1KV |
Cover: | PE | ||
High Light: | low voltage flexible cable,low voltage underground cable,PE Sheathed Power Cable XLPE Insulated |

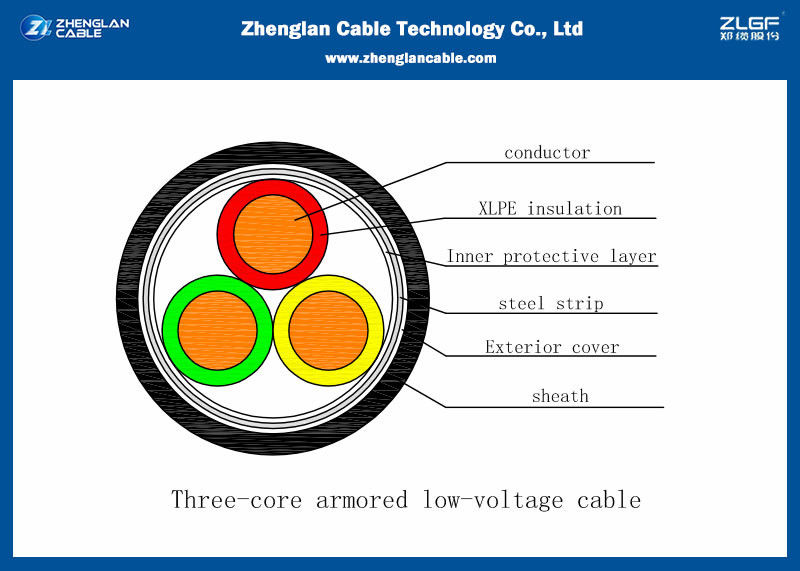

(AL/CU) Conductor, XLPE Insulated, Steel Tape Armoured, PE Sheathed Power Cable(N2XB2Y/NA2XB2Y)
Application:
General application as power cable. In low voltage distribution power networks, industrial installations, in buildings and operation stations. In fixed installations, indoor and outdoor areas. It can be installed in dry or wet locations; where mechanical strength is required.but it couldn't bear great pulling force. Used for power station, industry, switchgear and urban power supply network.
Electrical Properties:
Rated Voltage Uo/U (Um) | 600/1000V, BS5467 |
Max. DC resistance of the conductor at 20°C | 7.41Ohm/km |
Perm current rating in air 30°C | 32A |
Permissible current rating buried 20°C | 44A |
Installation Temperature | Minimum: 0°C,Maximum: 60°C |
Installation Type | Outdoor Direct burial |
Operating Temperature | Maximum: 90°C. |
Short-circuit Maximum Conductor Temperature: | 250°C. |
Min. Bending Radius | 12 x cable O.D for multi-core armoured cables |
Packing Details:
1. standard seaworthy drum (wooden drum,wooden steel drum, steel drum) are available;
2. drum size can be customized or meeting container the Max.load size;
3. drum overall diameter can be from 1 meter to 2.5 meters;
4. under customer requirement with certain length packed in rolls wrapped in plastic tape or Nylon plastic tape.
Construction Parameters:
IEC 60502-1
Nominal Cross Section of Conductor | Nominal Diameter of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Copper Tape Screen | Nominal Thickness of Inner Sheath | Nominal Thickness of Steel Tape Armouring | Nominal Thickness of PE Sheath | Approx. Overall Diameter | Approx. Weight | |
Al Conductor | Cu Conductor | ||||||||
No. X mm2 | mm | mm | mm | mm | mm | mm | mm | kg/m | kg/m |
3 X 25 | 6.0 | 3.4 | 0.1 | 1.3 | 0.5 | 2.0 | 43.4 | 2.16 | 2.61 |
3 X 35 | 6.9 | 3.4 | 0.1 | 1.3 | 0.5 | 2.0 | 45.4 | 2.36 | 2.99 |
3 X50 | 8.2 | 3.4 | 0.1 | 1.4 | 0.5 | 2.2 | 48.8 | 2.69 | 3.54 |
3 X 70 | 9.7 | 3.4 | 0.1 | 1.5 | 0.5 | 2.3 | 52.4 | 3.10 | 4.33 |
3 X 95 | 11.3 | 3.4 | 0.1 | 1.5 | 0.5 | 2.4 | 56.1 | 3.56 | 5.26 |
3 X 120 | 12.8 | 3.4 | 0.1 | 1.5 | 0.5 | 2.5 | 59.5 | 4.04 | 6.19 |
3 X 150 | 14.2 | 3.4 | 0.1 | 1.5 | 0.5 | 2.6 | 62.7 | 4.49 | 7.19 |
3 X 185 | 15.9 | 3.4 | 0.1 | 1.6 | 0.5 | 2.6 | 66.6 | 5.12 | 8.49 |
3 X 240 | 18.3 | 3.4 | 0.1 | 1.7 | 0.5 | 2.8 | 72.4 | 5.99 | 10.42 |
3 X 300 | 20.4 | 3.4 | 0.1 | 1.8 | 0.5 | 3.0 | 77.5 | 6.86 | 12.42 |
3 X 400 | 23.2 | 3.4 | 0.1 | 1.9 | 0.8 | 3.2 | 85.4 | 8.97 | 16.05 |
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
