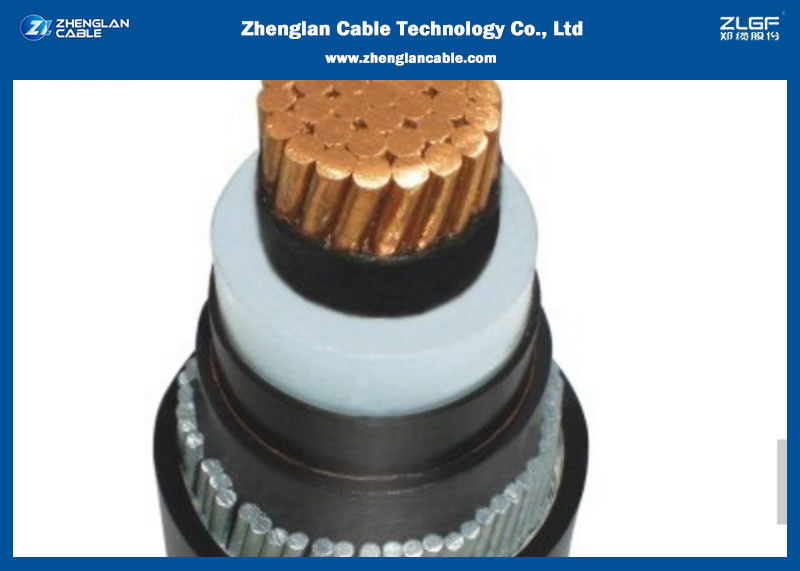

18/30KV MV Single Core Armoured Power Cable, Insulated Cable according to IEC 60502/60228

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 18/30KV Single Core Power Cable (Armoured)

Payment & Shipping Terms

Minimum Order Quantity: 300 meters

Price: 1-100USD/m

Packaging Details: Wooden drum, wood and steel drum, as customer's request

Delivery Time: 12 days or as customer's request

Payment Terms: L/C, T/T,

Supply Ability: 60000meters/day

Get Best Price
Highlight:

medium voltage underground cable

,

xlpe medium voltage cables

,

30KV MV Armoured Power Cable

Material:
CU&AL
Out Sheath Color:
Black Or Customized
Core:
1core Or 3core
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
Customized
Characted:
STA/SWA Armoured
Material:
CU&AL
Out Sheath Color:
Black Or Customized
Core:
1core Or 3core
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
Customized
Characted:
STA/SWA Armoured
18/30KV MV Single Core Armoured Power Cable, Insulated Cable according to IEC 60502/60228

18/30KV MV Single Core Armoured Power Cable, Insulated Cable according to IEC 60502/60228



Cable Construction

Conductors

Either aluminium or copper conductors are used. Conductors up to 630mm² will be circular, compacted & stranded and shall comply with IEC 60228 class 2. 630mm² conductor will be circular stranded type on which a layer of semi-conducting tape will be applied.

Conductor Screen

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field. By careful material selection and special attention to process parameters, we produce the insulation screen layers with the required degree of stripping force as stipulated by the applicable national or international standard.

Insulation

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.

Inner Sheath (Bedding) for Armoured Cables

Extruded layer of PVC or PE is applied over the laid up cores for armoured cables. PVC is normally of grade ST2 and PE of grade ST7 as per IEC 60502 Part 2.

Armouring

In case of armoured cables, the armour is applied helically over inner sheath. For single core cables, it is of aluminium wires and for multicore cables, the armour can be of one among the following options:

a) Galvanized steel wire.

b) Galvanized steel tape.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE. our

medium voltage cables are normally supplied with red PVC over sheaths complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.



Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.


18/30KV MV Single Core Armoured Power Cable, Insulated Cable according to IEC 60502/60228

Copper Conductor XLPE Insulated cable, three cores Cable Parameters:

Nominal Cross Section (mm2) Nominal Thickness of Insulation (mm) Size of Armor Approximate Overall Diameter and Weight Recommended Current Rating (A)
Steel Tape Fine Steel Wire YJV YJY YJV22 YJV23 YJV32 YJV33
Layer x Thickness Diameter (mm) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km) In Ground In Air

50 8 2 x 0.5 2.5 68.3 4466 68.3 4167 74.1 6241 74.1 5906 78.8 9319 78.8 8940 219 216
70 8 2 x 0.5 2.5 72.2 5305 72.2 4979 78 7179 78 6815 82.7 10442 82.7 10032 269 269
95 8 2 x 0.5 2.5 75.9 6272 75.9 5918 82.1 8313 82.1 7907 86.6 11668 86.6 11227 321 325
120 8 2 x 0.8 3.15 79.2 7212 79.2 6831 86.8 10222 86.8 9780 90.1 12867 90.1 12395 364 374
150 8 2 x 0.8 3.15 82.9 8326 82.9 7915 90.5 11471 90.5 10997 93.8 14266 93.8 13761 409 425
185 8 2 x 0.8 3.15 86.6 9582 86.6 9140 94.6 12949 94.6 12427 97.9 15829 97.9 15275 461 485
240 8 2 x 0.8 3.15 92.3 11565 92.3 11068 100.3 15146 100.3 14577 103.6 18246 103.6 17644 534 569
300 8 2 x 0.8 3.15 97 13611 97 13067 105.3 17438 105.3 16811 108.6 20663 108.6 20001 601 651
400 8 2 x 0.8 3.15 104.5 17014 104.5 16391 112.9 21155 112.9 20450 116.2 24616 116.2 23876 683 753
