Product Details:
|
| Insulation Material: | XLPE | Conductor Material: | Aluminum, Al Alloy |
|---|---|---|---|
| Application: | Overhead Transmission Use | Quality: | 100% Test |
| Model: | ABC Cable | Standard: | ISO 9001:2015 |
| Structure: | Al/xlpe+bare Al Alloy | Voltage: | 0.6/1kv |
| High Light: | aluminium overhead power cables,flexible building wire,MV XLPE Overhead Insulated Cable |
||
Neutral Supported ABC Cables LV MV Overhead Insulated Cable Service drop Cable Duplex Service Drop Cable
Application:
This cable usually used for urban and rural overhead secondary distribution networks, with voltages up to 1000 V. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.
Neutral Supported LV MV Overhead Insulated Cable / Service Drop Cable Duplex Service Drop Cable Data sheets:
| Cable Size | Current Rating (Note 1) | Short Circuit Rating (Note 2) | Conductor Resistance @ 20°C | Conductor Resistance (ac) @ 80°C | Self Supporting System | Supporting Core System | |||||||
| Induction Reactance @ 50Hz | Impendance (z) @ 50Hz at 80°C |
Supporting Core Size | Induction Reactance @ 50Hz | Impendance (z) @ 50Hz at 80°C |
|||||||||
| mm² | (A) | kA | ( /km) | ( /km) | ( /km) | ( /km) | mm² | ( /km) | ( /km) | ||||
| 25 | 105 | 2.3 | 1.200 | 1.490 | 0.096 | 1.493 | 54.6 | 0.101 | 1.493 | ||||
| 35 | 144 | 3.2 | 0.868 | 1.078 | 0.096 | 1.082 | 54.6 | 0.097 | 1.082 | ||||
| 50 | 183 | 4.6 | 0.641 | 0.796 | 0.090 | 0.801 | 54.6 | 0.089 | 0.801 | ||||
| 70 | 228 | 6.4 | 0.443 | 0.550 | 0.089 | 0.557 | 54.6 | 0.086 | 0.557 | ||||
| 95 | 277 | 8.5 | 0.320 | 0.397 | 0.086 | 0.406 | 54.6 | 0.081 | 0.405 | ||||
| 120 | 322 | 11.0 | 0.253 | 0.314 | 0.084 | 0.325 | 70 | 0.079 | 0.324 | ||||
| 150 | 350 | 13.8 | 0.206 | 0.256 | 0.082 | 0.269 | 95 | 0.079 | 0.268 | ||||

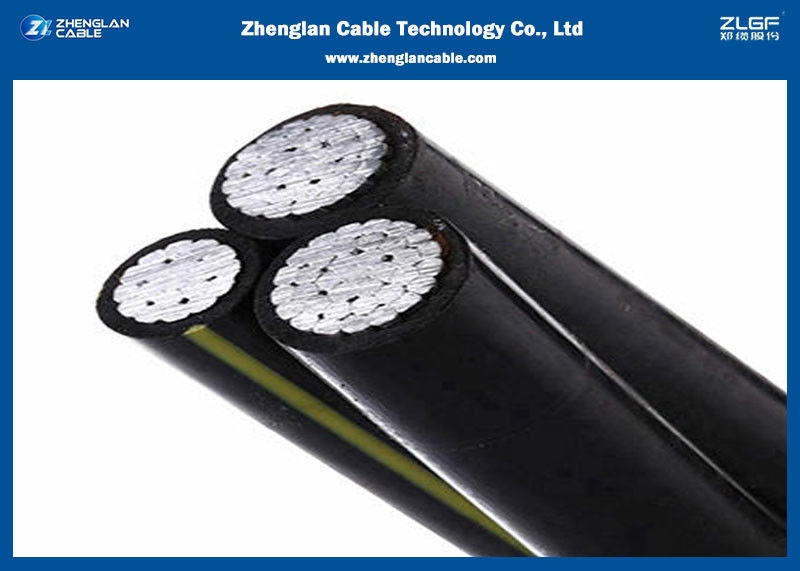

Neutral Supported LV MV Overhead Insulated Cable / Service Drop Cable Duplex Service Drop Cable Picturs:
About zhenglan cable
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.
