6/10KV XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY)

6/10KV  XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY)
6/10KV  XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY)
6/10KV  XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY) 6/10KV  XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY) 6/10KV  XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY)

Large Image :  6/10KV XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY)

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO9001,CCC, CE, Etc
Model Number: 6/10KV XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured )
Payment & Shipping Terms:
Minimum Order Quantity: 200 meters
Packaging Details: drum , reel or as your request.
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,

6/10KV XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY)

Description
Jacket: PVC Insulation: XLPE
Type: Medium Voltage Number Of Cores: 1
Rated Voltage: 6/10KV Product Standard: IEC 60502
High Light:

multi conductor power cable

,

xlpe medium voltage cables

6/10KV XLPE Insulated PVC Sheath and Cu Copper Power Cable (Armoured ) (CU/PVC/XLPE/LSZH/STA/NYBY/N2XBY)

1.Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material:XLPE
Type: Medium Voltage
Conductor: High quality oxygen-free copper
Jacket: PVC
Sizes: 1.5~1000mm2
Executive Standard: IEC 60502
Certificate: CE, RoHS, CCC, KEMA and more others at request
Packaging Details: drum , reel or as your request.

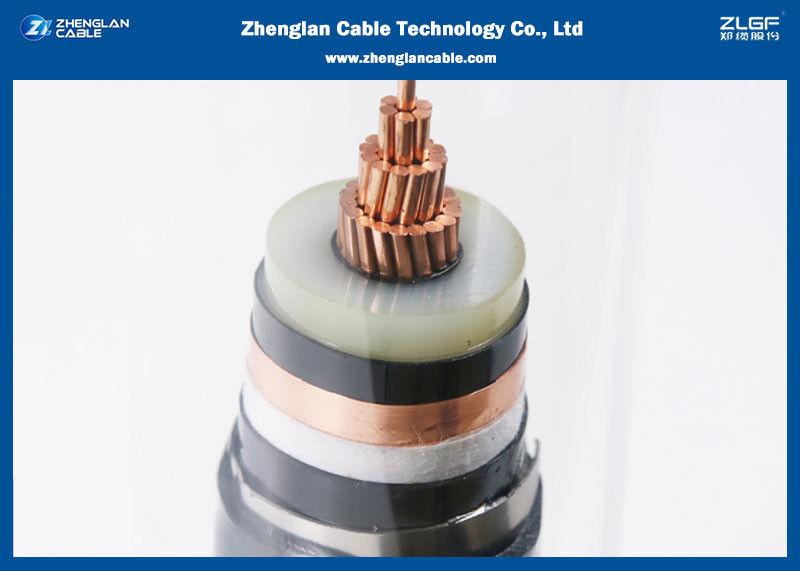

Cable Construction
Circular bare copper-conductor of stranded wires to HD 383
Inner semi-conducting coating
Conductor insulation of cross-linked Polyethylene (XLPE), PE-compound DIX8 to HD 620.1
Outer extrusion of semi-conducting coating spliced with the insulation
Wrapping of conductive material
Shield: Braiding of copper wires with one or two tape(s) applied helically
Wrapping
PVC outer jacket, compound DMV6 to HD 620.1
Jacket color: Red

Application
Suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switch boards and power stations. Due to the good laying characteristic, this cable can also be installed in difficult in difficult line guide ways.
The inner conducting layer between the conductor and the XLPE insulation and the firmly bonded outer conducting layer on the XLPE insulation assures a construction free of partial discharges with high operational reliabilities.



Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom armor thickness(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 3.4 0.1 16 12.5 0.5 2.3 44 3200 2700
35 7.10 3.4 0.1 16 13.5 0.5 2.4 46 3700 2000
50 8.25 3.4 0.1 16 14.7 0.5 2.5 49 4300 3400
70 9.90 3.4 0.1 16 16.3 0.5 2.6 53 5200 3900
95 11.7 3.4 0.1 16 18.1 0.5 2.8 57 6400 4600
120 13.1 3.4 0.1 16 19.5 0.5 2.9 61 7400 5200
150 14.3 3.4 0.1 25 20.7 0.5 3.0 64 8500 5700
185 16.3 3.4 0.1 25 22.7 0.5 3.1 68 10000 6500
240 18.7 3.4 0.1 25 25.3 0.5 3.3 74 12300 7600
300 20.9 3.4 0.1 25 27.9 0.5 3.4 79 14600 8800
400 23.7 3.4 0.1 35 31.1 0.8 3.7 87 18700 11300


Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provide
