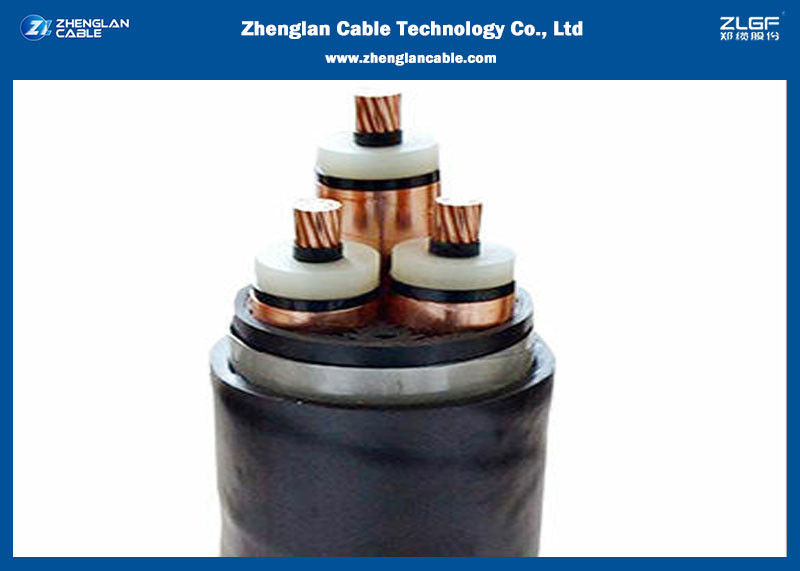

Nominal Section:25~400mm² 8.7/10KV XLPE Insulated MV Power Cables (Armoured )for Power Station (CU/XLPE/DSTA/N2XBY)

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 8.7/10KV Three Cores Power Cable (Armoured)

Payment & Shipping Terms

Minimum Order Quantity: 300 meters

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 12 days

Payment Terms: L/C, T/T,

Get Best Price
Highlight:

multi conductor power cable

,

xlpe medium voltage cables

Material:
CU
Out Sheath Color:
Black Or Customized
Core:
3
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
Material:
CU
Out Sheath Color:
Black Or Customized
Core:
3
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
Nominal Section:25~400mm² 8.7/10KV XLPE Insulated MV Power Cables (Armoured )for Power Station (CU/XLPE/DSTA/N2XBY)

8.7/10KV XLPE Insulated MV Power Cables (Armoured )



Cable Construction

medium voltage cables are manufactured using the monosil process. We provide the highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of PVC insulated cables for use up to 6KV and XLPE/EPR insulated cables for use at voltages up to 35 KV. The materials are all kept in cleanliness-controlled conditions throughout the production process in order to ensure the absolute homogeneity of the finished insulation materials.

Conductors

Either aluminium or copper conductors are used. Conductors up to 630mm² will be circular, compacted & stranded and shall comply with IEC 60228 class 2. 630mm² conductor will be circular stranded type on which a layer of semi-conducting tape will be applied.



Conductor Screen

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field. By careful material selection and special attention to process parameters, we produce the insulation screen layers with the required degree of stripping force as stipulated by the applicable national or international standard.

Insulation

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.



Inner Sheath (Bedding) for Armoured Cables

Extruded layer of PVC or PE is applied over the laid up cores for armoured cables. PVC is normally of grade ST2 and PE of grade ST7 as per IEC 60502 Part 2.

Nominal Section:25~400mm² 8.7/10KV XLPE Insulated MV Power Cables (Armoured )for Power Station (CU/XLPE/DSTA/N2XBY) 0

Armouring

In case of armoured cables, the armour is applied helically over inner sheath. For single core cables, it is of aluminium wires and for multicore cables, the armour can be of one among the following options:

a) Galvanized steel wire.

b) Galvanized steel tape.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE. our

medium voltage cables are normally supplied with red PVC over sheaths complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.



Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.




Cable Parameters:
8.7/10KV Medium Voltage Three Cores Power Cable (Amoured)



Normal cross sectional area
(mm²)
Appro conductor dia
(mm)
Nom insulation thickness
mm)
Copper tape thickness
(mm)
Copper wire screen area
(mm²)
Appro. Insulation dia
(mm)
Nom armor thickness
(mm)
Nom sheath thickness
(mm)
Appro overall diameter
(mm)
Appro weight
(kg/km)
                  CU AL
25 6.05 3.4 0.1 16 16.5 0.5 2.5 49 3800 3300
35 7.10 3.4 0.1 16 17.5 0.5 2.6 51 4300 3600
50 8.25 3.4 0.1 16 18.7 0.5 2.7 54 4900 4000
70 9.90 3.4 0.1 16 20.3 0.5 2.8 58 5900 4600
95 11.7 3.4 0.1 16 22.1 0.5 2.9 62 7100 5300
120 13.1 3.4 0.1 16 23.5 0.5 3.0 66 8100 5900
150 14.3 3.4 0.1 25 24.7 0.5 3.1 69 9200 6400
185 16.3 3.4 0.1 25 26.7 0.5 3.3 74 10900 7400
240 18.7 3.4 0.1 25 29.1 0.5 3.4 79 13100 8500
300 20.9 3.4 0.1 25 31.3 0.5 3.6 86 16400 10600
400 23.7 3.4 0.1 35 34.1 0.8 3.9 93 19700 12300
