Product Details:
|
| Material: | Aluminium Alloy | Core: | Normal Or Customized |
|---|---|---|---|
| Cable Mark: | Ink Printing Or Embossing Content Customized | Characted: | Bare Conductor |
| Armoured: | No | Nominal Area: | 18.4~1439 |
| High Light: | bare aluminum wire,all aluminum conductor |
||
Overhead Bare Conductor Wire(Nominal Area:1036mm2), AAAC Conductor according to IEC 61089
APPLICATION
AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.
AAAC-DIN 48201-6
| Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* | |
| Nominal | Teorical | ||||||
| mm^2 | mm^2 | No.×mm | mm | kg/km | KN | Ω/Km | A |
| 16 | 15.89 | 7/1.70 | 5.1 | 43 | 4.44 | 2.0742 | 78 |
| 25 | 24.25 | 7/2.10 | 6.3 | 66 | 6.77 | 1.3593 | 102 |
| 35 | 34.36 | 7/2.50 | 7.5 | 94 | 9.6 | 0.9591 | 126 |
| 50 | 49.48 | 7/3.00 | 9 | 135 | 13.82 | 0.666 | 158 |
| 50 | 48.35 | 19/1.80 | 9 | 133 | 13.5 | 0.6849 | 156 |
| 70 | 65.81 | 19/2.10 | 10.5 | 181 | 18.38 | 0.5032 | 189 |
| 95 | 93.27 | 19/2.50 | 12.5 | 256 | 26.05 | 0.3551 | 234 |
| 120 | 116.99 | 19/2.80 | 14 | 322 | 32.68 | 0.2831 | 269 |
| 150 | 147.11 | 37/2.25 | 15.8 | 406 | 41.09 | 0.2256 | 309 |
| 185 | 181.62 | 37/2.50 | 17.5 | 500 | 50.73 | 0.1828 | 352 |
| 240 | 242.54 | 61/2.25 | 20.3 | 670 | 67.74 | 0.1371 | 420 |
STANDARD
Basic design to BS 3242 / BS EN 50182/ NFC34125 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.
CONSTRUCTION

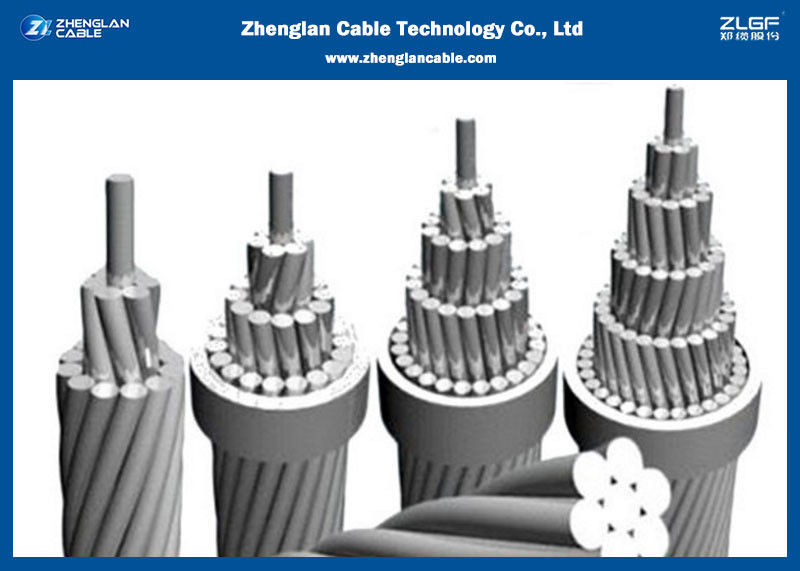

AAAC conductor is a concentric lay stranded conductor consisting of Aluminum Alloy 6201-T81 wires, similar in appearance to a 1350 grade aluminum conductor.
Notes: DC resistance at 20°C of the 6201-T81 alloy has a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.
Standards: AAAC conductors meet or exceed the following:
NFC 34 125, EN 50182
Requirements of the National Electrical Code
ELECTRICAL PROPERTIES
| density@20ºC | 2.70 kg/dm |
| Temperature Coefficient@20°C | 0.00360 (°C) |
| resistivity@20°C | 0.0326 Ohms mm2/m |
| linear Expansivity |
23 x10-6 (°C) |
SERVICE CONDITIONS
| Ambient Temperature | -5°C - 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 - 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
CONSTRUCTION PARAMETERS
• IEC 60189
| Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* |
| mm2 | No.x mm | mm | Kg/Km | KN | Ω/Km | A | |
| 16 | 18.4 | 7/1.83 | 5.49 | 50.4 | 5.43 | 1.7896 | 86 |
| 25 | 28.8 | 7/2.29 | 6.87 | 78.7 | 8.49 | 1.1453 | 113 |
| 40 | 46 | 7/2.89 | 8.67 | 125.9 | 13.58 | 0.7158 | 151 |
| 63 | 72.5 | 7/3.63 | 10.89 | 198.3 | 21.39 | 0.4545 | 200 |
| 100 | 115 | 19/2.78 | 13.9 | 316.3 | 33.95 | 0.2877 | 266 |
| 125 | 144 | 19/3.10 | 15.5 | 395.4 | 42.44 | 0.2302 | 305 |
| 160 | 184 | 19/3.51 | 17.55 | 506.1 | 54.32 | 0.1798 | 355 |
| 200 | 230 | 19/3.93 | 19.65 | 632.7 | 67.91 | 0.1439 | 407 |
| 250 | 288 | 19/4.39 | 21.95 | 790.8 | 84.88 | 0.1151 | 466 |
| 315 | 363 | 37/3.53 | 24.71 | 998.9 | 106.95 | 0.0916 | 535 |
| 400 | 460 | 37/3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 | 618 |
| 450 | 518 | 37/4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 | 663 |
| 500 | 575 | 37/4.45 | 31.15 | 1585.5 | 169.76 | 0.0577 | 706 |
| 560 | 645 | 61/3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 | 755 |
| 630 | 725 | 61/3.89 | 35.01 | 2000.7 | 213.9 | 0.0458 | 809 |
| 710 | 817 | 61/4.13 | 37.17 | 2254.8 | 241.07 | 0.0407 | 866 |
| 800 | 921 | 61/4.38 | 39.42 | 2540.6 | 271.62 | 0.0361 | 928 |
| 900* | 1036 | 91/3.81 | 41.91 | 2861.1 | 305.58 | 0.0321 | 992 |
| 1000* | 1151 | 91/4.01 | 44.11 | 3179 | 339.53 | 0.0289 | 1051 |
| 1120* | 1289 | 91/4.25 | 46.75 | 3560.5 | 380.27 | 0.0258 | 1118 |
| 1250* | 1439 | 91/4.49 | 49.39 | 3973.7 | 424.41 | 0.0231 | 1185 |
