Overhead Bare Conductor ACSR 100/17mm2 Aluminum Conductor With Steel reinforced Cable

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: Overhead Bare Conductor ACSR 100/17mm2 Aluminum Conductor With Steel reinforced Cable

Payment & Shipping Terms

Minimum Order Quantity: 300 meters

Price: 0.1-100USD/m

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 15 days

Payment Terms: L/C, T/T,

Supply Ability: 15-30ton/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                acsr aluminum conductor steel reinforced, overhead line conductor


Material:	AL&STEEL	Out Sheath Color:	None
Cable Drum Length:	Normal Or Customized	Characted:	Bare Conductor
Country Of Original:	Henan, China	Total Area:	16~1120

Material:	AL&STEEL
Out Sheath Color:	None
Cable Drum Length:	Normal Or Customized
Characted:	Bare Conductor
Country Of Original:	Henan, China
Total Area:	16~1120

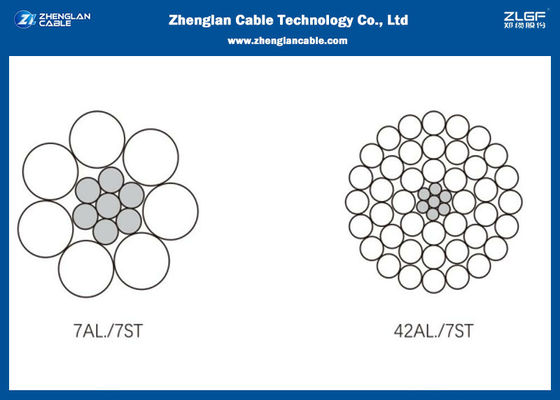

Overhead Bare Conductor ACSR 100/17mm2 Aluminum Conductor With Steel reinforced Cable

Overhead Bare Conductor ACSR 100/17mm2 Aluminum Conductor With Steel reinforced Cable

Bare Conductor Electrical Cable APPLICATION

ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

Bare Conductor Electrical Cable STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Bare Conductor Electrical Cable CONSTRUCTION

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

ELECTRICAL PROPERTIES

density@20ºC	Aluminium: 2.703 kg/dm
density@20ºC	Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C	Aluminium: 0.00403 (°C)
resistivity@20°C	Aluminium: Should not exceed 0.028264
linear Expansivity	Aluminium: 23 x10 (°C)
linear Expansivity	Galvanised Steel: 11.5 x10 (1/°C)

SERVICE CONDITIONS

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m
Seismic Acceleration	0.12 - 0.05g
Isokeraunic level	10 – 18
relative Humidity	5 – 100%

TECHNICAL DATA

Numbers of Wires		Modules of Elasticity		Coeficient of linear Expansion
AL	STEEL	Kg/mm2	Lb/in2	1/Cº	1/Fº
6	1	81	11.5 x10⁶	19.1 x10^-6	10.6 x10^-6
6	7	77	11.0 x10⁶	19.8 x10^-6	11.0 x10^-6
12	7	107	15.2 x10⁶	15.3 x10^-6	8.5 x10^-6
18	1	67	9.5 x10⁶	21.2 x10^-6	11.8 x10^-6
24	7	74	10.5 x10⁶	19.6 x10^-6	10.9 x10^-6
26	7	77	10.9 x10⁶	18.9 x10^-6	10.5 x10^-6
28	7	79	11.2 x10⁶	18.4 x10^-6	10.2 x10^-6
30	7	82	11.6 x10⁶	17.8 x10^-6	9.9 x10^-6
30	19	80	11.4 x10⁶	18.0 x10^-6	10.0 x10^-6
32	19	82	11.7 x10⁶	17.5 x10^-6	9.7 x10^-6
54	7	70	9.9 x10⁶	19.3 x10^-6	10.7 x10^-6
54	19	68	9.7 x10⁶	19.4 x10^-6	10.8 x10^-6

Overhead Bare Conductor ACSR 100/17mm2 Aluminum Conductor With Steel reinforced Cable CONSTRUCTION PARAMETERS

• IEC 60189

Code Number	Area			No. of Wires		Wire Dia.		Diameter		Linear Mass	A1/S1 A Conductor Rated Strength	Max. DC Resistance at 20°C
Code Number	Alum.	Steel	Total	No. of Wires		Alum.	Steel	Core	Cond.	Linear Mass	A1/S1 A Conductor Rated Strength	Max. DC Resistance at 20°C
mm²	mm²	mm²	mm²	Al.	St.	mm	mm	mm	mm	kg/km	kN	Ω/km
16	16	2.7	18.7	6	1	1.84	1.84	1.64	5.53	64.6	6.08	1.7934
25	25	4.2	29.2	6	1	2.3	2.3	2.3	6.91	100.9	9.13	1.1478
40	40	6.7	46.7	6	1	2.91	2.91	2.91	8.74	161.5	14.4	0.7174
63	63	10.5	73.5	6	1	3.66	3.66	3.66	11	254.4	21.63	0.4555
100	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	34.33	0.2869
125	125	6.9	132	18	1	2.97	2.97	2.97	14.9	397.9	29.17	0.2304
125	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	45.69	0.231
160	160	8.9	169	18	1	3.36	3.36	3.36	16.8	509.3	36.18	0.18
160	160	26.1	186	26	7	2.8	2.18	6.53	17.7	644.9	57.69	0.1805
200	200	11.1	211	18	1	3.76	3.76	3.76	18.8	636.7	44.22	0.144
200	200	32.6	233	26	7	3.13	2.43	7.3	19.8	806.2	70.13	0.1444
250	250	24.6	275	22	7	3.8	2.11	6.34	21.6	880.6	68.72	0.1154
250	250	40.7	291	26	7	3.5	2.72	8.16	22.2	1007.7	87.67	0.1155
315	315	21.8	337	45	7	2.99	1.99	5.97	23.9	1039.3	79.03	0.0917
315	315	51.3	366	26	7	3.93	3.05	9.16	24.9	1269.7	106.83	0.0917
400	400	27.7	428	45	7	3.36	2.24	6.73	26.9	1320.1	98.36	0.0722
400	400	51.9	452	54	7	3.07	3.07	9.21	27.6	1510.3	123.04	0.0723
450	450	31.1	481	45	7	3.57	2.38	7.14	28.5	1485.2	107.47	0.0642
450	450	58.3	508	54	7	3.26	3.26	9.77	29.3	1699.1	138.42	0.0643
500	500	34.6	535	45	7	3.76	2.51	7.52	30.1	1650.2	199.41	0.0578
500	500	64.8	565	54	7	3.43	3.43	10.3	30.9	1887.9	153.8	0.0578
560	560	38.7	599	45	7	3.98	2.65	7.96	31.8	1848.2	133.74	0.0516
560	560	70.9	631	54	19	3.63	2.18	10.9	32.7	2103.4	172.59	0.0516
630	630	43.6	674	45	7	4.22	2.81	8.44	33.8	2079.2	150.45	0.0459
630	630	79.8	710	54	19	3.85	2.31	11.6	34.7	2366.3	191.77	0.0459
710	710	49.1	759	45	7	4.48	2.99	8.96	35.9	2343.2	169.56	0.0407
710	710	89.9	800	54	19	4.09	2.45	12.3	36.8	2666.8	216.12	0.0407
800	800	34.6	835	72	7	3.76	2.51	7.52	37.6	2480.2	167.41	0.0361
800	800	66.7	867	84	7	3.48	3.48	10.4	38.3	2732.7	205.33	0.0362
800	800	101	901	54	19	4.44	2.61	13	39.1	3004.9	243.52	0.0362
900	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2790.2	188.33	0.0321
900	900	75	975	84	7	3.69	3.69	11.1	40.6	3074.2	226.5	0.0322
1000	1000	43.2	1043	72	7	4.21	2.8	8.41	42.1	3100.3	209.26	0.0289
1120	1120	47.3	1167	72	19	4.45	1.78	8.9	44.5	3464.9	234.53	0.0258
1120	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3	3811.5	283.17	0.0258
1250	1250	102	1352	84	19	4.35	2.61	13.1	47.9	4253.9	316.04	0.0232
1250	1250	52.8	1303	72	19	4.7	1.88	9.4	47	3867.1	261.75	0.0231
