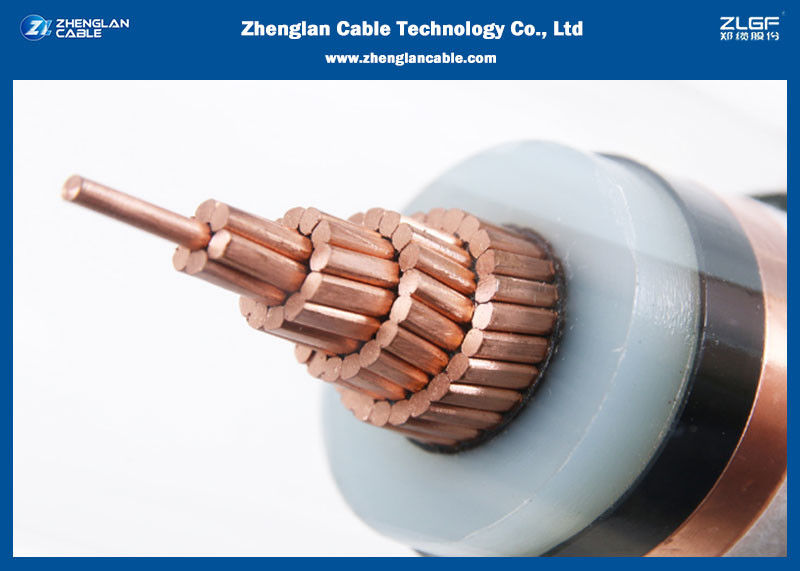

Single Core Insulated Cable 0.6/1KV Low Voltage ( Armoured ) , PVC Insulated CableIEC 60502-1, IEC 60228

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 0.6/1KV Single Core Power Cable (Armoured)

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 12 days

Payment Terms: L/C, T/T,

Get Best Price
High Light:

low voltage underground cable

,

low voltage electrical cable

Application:
Power Station
Insulation:
PVC
Out Sheath Color:
Black Or Customized
Core:
1
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
Application:
Power Station
Insulation:
PVC
Out Sheath Color:
Black Or Customized
Core:
1
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
Single Core Insulated Cable 0.6/1KV Low Voltage ( Armoured ) , PVC Insulated CableIEC 60502-1, IEC 60228

Single Core Insulated Cable/ 0.6/1KV Low Voltage (Armoured) , PVC Insulated Cable



Description:
0.6/1KV PVC Insulated Cables (Armoured)
IEC60502,IEC60228,GB/T 12706.1-2008
CE,CCC,KEMA,ISO



Application:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706.2-2008

Other standards such as BS7870,DIN and ICEA upon request



Certificates:
CE, ROHS,KEMA and more others at request



Cable Parameters:

Single Core Power Cable (Armoured)

Nominal

Area

Approx

Conductor

Diameter

Nominal

Insulation

thickness

Nominal

bedding

thickness

Nominal

Alum

Wire dia.

Nominal

Sheath

thickness

Approx.

Overall

Diameter

Approx.

Weight

mm2 mm mm mm mm mm mm Kg/Km
1x10 4 1.0 1.0 0.8 1.8 14 300
1x16 5 1.0 1.0 0.8 1.8 15 375
1x25 6.3 1.2 1.0 0.8 1.8 16 500
1x35 7.4 1.2 1.0 0.8 1.8 18 625
1x50 8.8 1.4 1.0 1.25 1.8 20 835
1x70 10.6 1.4 1.0 1.25 1.8 22 1075
1x95 12.4 1.6 1.0 1.25 1.8 24 1385
1x120 14.0 1.6 1.0 1.6 1.8 26 1700
1x150 15.5 1.8 1.0 1.6 1.8 28 2025
1x185 17.4 2.0 1.0 1.6 1.8 31 2450
1x240 20.3 2.2 1.0 1.6 1.9 34 3100
1x300 22.7 2.4 1.0 2.0 2.0 38 3900
1x400 25.4 2.6 1.2 2.0 2.1 42 4875
1x500 28.8 2.8 1.2 2.0 2.2 45 6050
1x630 30.4 2.8 1.2 2.0 2.4 50 7625
