Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable LV overhead insulated cable AAC/XLPE Phase Cable AAAC Neutral
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: 0.1-80USD/m
Packaging Details: Wooden drum, wooden-steel drum, coil or plastic drum or customized
Delivery Time: 15-18 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100Km/Month
Insulation Material: |
XLPE/PVC |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Quality: |
100% Test |
Standard: |
BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 |
Phase Cable: |
Aerial Bundle Cable |
Neutral Cable: |
Bare AAAC Or AAAC/XLPE |
Street Lighting Cable: |
With Or Without |
Insulation Material: |
XLPE/PVC |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Quality: |
100% Test |
Standard: |
BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 |
Phase Cable: |
Aerial Bundle Cable |
Neutral Cable: |
Bare AAAC Or AAAC/XLPE |
Street Lighting Cable: |
With Or Without |
Overhead Insulated Cable ABC 4x25mm2 For Overhead Power Transmission Duplex/triplex Aluminum XLPE/PVC BS IEC SANS DIN
Application:
Overhead line is a line which is erected by tower to transmit electric energy at a certain height. For the high-voltage transmission and distribution network, the ground insulation of the overhead line is generally based on air, and the distribution line (except 380V under 10kV) generally uses bare conductor. However, due to the complex urban distribution environment, short-circuit grounding and lightning strike often occur, resulting in the decrease of power supply reliability. So far, the overhead line under 10kV generally uses insulated conductor (that is, the outer layer of conductor is wrapped with insulation layer), which is the so-called insulated overhead cable.
Insulation: PVC, XLPE, PE
GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
Construction of NFC 33-209 Standard ABC Cable
| Cross Section of Conductor (mm2) |
Min.Nos. of Wires for Conductor (mm) |
Insulation Thickness (mm) |
Average Max. O.D.per Single-core (mm) |
Max.Conductor Resistance at 20ºC (Ω/km) |
Min Insulated Resistance at Rated Working Temperature (MΩ.km) |
Cable Tensile Breaking Force | |
| 2x10 | 6 | 1.00 | 6.5x13.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 2x16 | 6 | 1.20 | 8.0x16.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 2x25 | 6 | 1.20 | 9.4x18.8 | 1.2 | 0.0054 | 0.54 | 3762 |
| 2x35 | 6 | 1.40 | 11.0x22.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 2x50 | 6 | 1.40 | 12.3x24.6 | 0.641 | 0.0046 | 0.46 | 7011 |
| 2x70 | 12 | 1.40 | 14.1x28.2 | 0.443 | 0.004 | 0.4 | 10354 |
| 2x95 | 15 | 1.60 | 16.5x33.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 2x120 | 15 | 1.60 | 18.1x36.2 | 0.252 | 0.0035 | 0.35 | 17339 |
| 2x150 | 15 | 1.80 | 20.2x40.4 | 0.206 | 0.0035 | 0.35 | 21033 |
| 2x185 | 30 | 2.00 | 22.5x45.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 2x240 | 30 | 2.20 | 25.6x51.2 | 0.125 | 0.0034 | 0.34 | 34679 |
| 4x10 | 6 | 1.00 | 6.5x26.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 4x16 | 6 | 1.20 | 8.0x32.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 4x25 | 6 | 1.20 | 9.4x37.6 | 1.2 | 0.0054 | 0.54 | 3762 |
| 4x35 | 6 | 1.40 | 11.0x44.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 4x50 | 6 | 1.40 | 12.3x49.2 | 0.641 | 0.0046 | 0.46 | 7011 |
| 4x70 | 12 | 1.40 | 14.1x56.4 | 0.443 | 0.004 | 0.4 | 10354 |
| 4x95 | 15 | 1.60 | 16.5x66.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 4x120 | 15 | 1.60 | 18.1x72.4 | 0.252 | 0.0035 | 0.35 | 17339 |
| 4x150 | 15 | 1.80 | 20.2x80.8 | 0.206 | 0.0035 | 0.35 | 21033 |
| 4x185 | 30 | 2.00 | 22.5x90.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 4x240 | 30 | 2.20 | 25.6x102.4 | 0.125 | 0.0034 | 0.34 | 34679 |

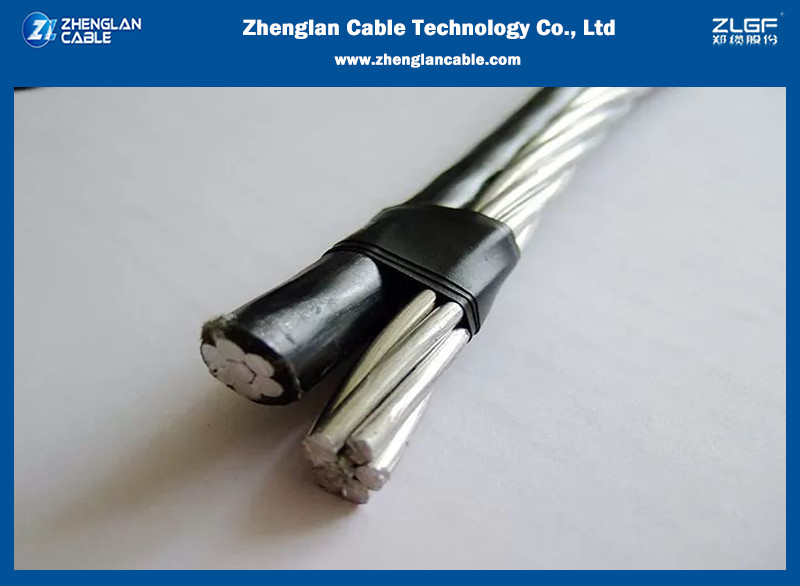

Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable images
Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable packages
About Zhenglan Cable Technology CO., Ltd.
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Our main products are
overhead power transmission use bare conductor(ACSR, AAC, etc)
1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
450/750V instrument use control cable (shielded or unshielded)
300/300V, 300/500V, 450/750V fixed installation use building wire
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
