ACSR Linnet Aluminum Conductor Steel Reinforced 232M Bare Overhead Transmission Lines

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: ACSR (Al 26/2.57mm; St:7/2mm)overhead bare aluminum conductor with steel reinforced ASTM232/232M

Payment & Shipping Terms

Minimum Order Quantity: 1ton

Price: 0.1-100USD/m

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 7-15 days

Payment Terms: L/C, T/T,

Supply Ability: 15-30ton/day

Get Best Price
High Light:

Aluminum Bare Conductor Steel Reinforced

,

overhead bare aluminum conductor 232M

,

Bare Conductor Overhead Transmission Lines

Material:
AL&STEEL
Out Sheath Color:
None
Cable Drum Length:
Normal Or Customized
Characted:
Bare Conductor
Country Of Original:
Henan, China
Total Area:
13.3~903.2
Material:
AL&STEEL
Out Sheath Color:
None
Cable Drum Length:
Normal Or Customized
Characted:
Bare Conductor
Country Of Original:
Henan, China
Total Area:
13.3~903.2
ACSR Linnet Aluminum Conductor Steel Reinforced 232M Bare Overhead Transmission Lines

ACSR Linnet 26/7 Aluminum Conductor Steel Reinforced Bare Conductor Overhead transmission lines ASTM232/232M Standard



Application

ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.



Bare Conductor Electrical Cable STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.



Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.



Bare Conductor Electrical Cable CONSTRUCTION

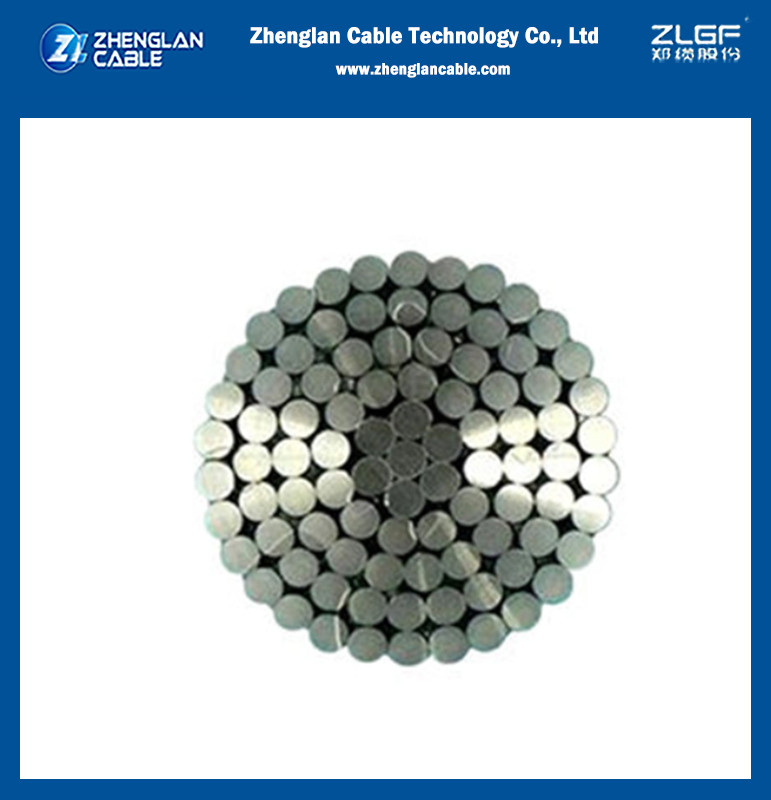

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.



ELECTRICAL PROPERTIES

density@20ºC Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C Aluminium: 0.00403 (°C)
resistivity@20°C Aluminium: Should not exceed 0.028264

linear Expansivity



Aluminium: 23 x10 (°C)
Galvanised Steel: 11.5 x10 (1/°C)



SERVICE CONDITIONS

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 - 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%



TECHNICAL DATA

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6



Parameters

AMERICAN STANDARD ASTM B232-B232 M1999
Code Word Stranding Stranding Nominal Overall Diameter Mass Rated Strength
    Aluminium Wires Steel Wires
    Number Diameter Number Diameter
      mm   mm mm kg/Km kN
Raven 6/1 6 3.37 1 3.37 10.11 216.08 19.48
Minorca 12/7 12 2.44 7 2.44 12.22 411.18 50.26
Quail 6/1 6 3.78 1 3.78 11.35 272.04 23.58
Leghorn 12/7 12 2.69 7 2.69 13.46 499.28 60.5
Guinea 12/7 12 2.92 1 2.92 14.63 589.76 71.17
Pigeon 6/1 6 4.25 1 4.25 12.75 343.02 29.45
Dotterel 12/7 12 3.08 7 3.08 15.42 656.13 76.95
Dorking 12/7 12 3.2 7 3.2 16.03 707.92 83.18
Brahma 16/19 16 2.86 19 2.48 18.14 1003.91 126.33
Cochin 12/7 12 3.37 7 3.37 16.87 783.96 92.08
Penguin 6/1 6 4.77 1 4.77 14.3 432.76 37.14
Partidge 26/7 26 2.57 7 2 16.31 546.01 50.26
Waxwing 18/1 18 3.09 1 3.09 15.47 430.23 30.69
Ostrich 26/7 26 2.73 7 2.12 17.27 613.42 56.49
Oriole 30/7 30 2.69 1 2.69 18.82 783.37 76.95
Linnet 26/7 26 2.89 7 2.25 18.29 687.53 62.72
Widgeon 18/1 18 3.47 1 3.47 17.37 542.88 38.7
Lark 30/7 30 2.92 7 2.92 20.47 925.34 90.3
Ibis 26/7 26 3.14 7 2.44 19.89 812.54 72.51



ACSR Linnet Aluminum Conductor Steel Reinforced 232M Bare Overhead Transmission Lines 0
ACSR Linnet Aluminum Conductor Steel Reinforced 232M Bare Overhead Transmission Lines 1

ACSR Linnet Aluminum Conductor Steel Reinforced 232M Bare Overhead Transmission Lines 2
