Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: aluminum conductor with steel reinforced
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 100KM/Month
Material: |
Aluminium&ganvalnized Steel Wire |
Quality: |
100% IEC Test |
Standard:: |
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,Gost839 |
MOQ: |
3tons |
Material: |
Aluminium&ganvalnized Steel Wire |
Quality: |
100% IEC Test |
Standard:: |
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,Gost839 |
MOQ: |
3tons |
ACSR conductor 95/16mm2 overhead aluminum conductor GOST 839
Application:
Aluminium Conductors Steel reinforced (ACSR) are concentrically stranded conductor with one or more layers of hard drawn Aluminium wire on galvanized steel wire core which are coated with zinc with Class A / Class B Coating. The core can be single wire or stranded depending on the size of the conductors.
Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
Standard:
ACSR manufactured by us that meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc, NFC, SS -etc
ACSR conductor 95/16mm2 overhead aluminum conductor GOST 839 Technical parameters
Nominal Area | Sectional Area | Stranding | Diameter of Complete Conductor | Weight | Rated Strength | DC Resistance @ 20°C | Current Capacity | ||||
No. of Wires | Wire diameter | ||||||||||
Aluminium | Steel | Aluminium | Steel | @ 75°C | @ 85°C | ||||||
(mm²) | (No.) | (No.) | (mm) | (mm) | (mm) | (Kg/km) | KN | (Ω/Km) | (Ampere) | (Ampere) | |
10/1.8 | 10.6/1.77 | 6 | 1 | 1.5 | 1.5 | 4.5 | 42.7 | 4.09 | 2.7064 | 60 | 70 |
16/2.7 | 16/2.69 | 6 | 1 | 1.85 | 1.85 | 5.6 | 64.9 | 6.22 | 1.7818 | 77 | 91 |
25/4.2 | 24.9/4.15 | 6 | 1 | 2.3 | 2.3 | 6.9 | 100.3 | 9.3 | 1.1521 | 100 | 119 |
35/6.2 | 36.9/6.15 | 6 | 1 | 2.8 | 2.8 | 8.4 | 148 | 13.52 | 0.7774 | 126 | 151 |
40/6.7 | 40/6.7 | 6 | 1 | 2.91 | 2.91 | 8.74 | 161.3 | 14.4 | 0.7172 | 132 | 158 |
50/8.0 | 48.2/8.04 | 6 | 1 | 3.2 | 3.2 | 9.6 | 195 | 17.11 | 0.5951 | 148 | 178 |
63/10.5 | 63/10.5 | 6 | 1 | 3.66 | 3.66 | 10.97 | 254 | 21.63 | 0.4553 | 173 | 209 |
Nov-70 | 68/11.3 | 6 | 1 | 3.8 | 3.8 | 11.4 | 276 | 24.13 | 0.4218 | 181 | 219 |
70/72 | 68.4 /72.2 | 18 | 19 | 2.2 | 2.2 | 15.4 | 755 | 96.83 | 0.4194 | 191 | 234 |
95/16 | 95.4/15.9 | 6 | 1 | 4.5 | 4.5 | 13.5 | 385 | 33.37 | 0.3007 | 221 | 269 |
95/141 | 91.2/141 | 24 | 37 | 2.2 | 2.2 | 19.8 | 1357 | 180.78 | 0.3146 | 230 | 285 |
100/16.7 | 100/16.7 | 6 | 1 | 4.61 | 4.61 | 13.82 | 403.2 | 34.33 | 0.2868 | 227 | 277 |
120/19 | 118/18.8 | 26 | 7 | 2.4 | 1.85 | 15.2 | 471 | 41.52 | 0.244 | 268 | 328 |
120/27 | 114/26.6 | 30 | 7 | 2.2 | 2.2 | 15.4 | 528 | 49.47 | 0.2531 | 264 | 323 |
125/6.9 | 125/6.9 | 18 | 1 | 2.97 | 2.97 | 14.85 | 397.9 | 29.17 | 0.2304 | 275 | 336 |
125/20.4 | 125/20.4 | 26 | 7 | 2.47 | 1.92 | 15.67 | 503.5 | 45.69 | 0.2308 | 277 | 339 |
150/19 | 148/18.8 | 24 | 7 | 2.8 | 1.85 | 16.8 | 554 | 46.31 | 0.2046 | 298 | 366 |
150/24 | 149/24.2 | 26 | 7 | 2.7 | 2.1 | 17.1 | 599 | 52.28 | 0.2039 | 299 | 368 |
150/34 | 147/34.3 | 30 | 7 | 2.5 | 2.5 | 17.5 | 675 | 62.64 | 0.2061 | 299 | 368 |
160/8.9 | 160/8.9 | 18 | 1 | 3.36 | 3.36 | 16.82 | 509.4 | 36.18 | 0.18 | 317 | 390 |
160/26.1 | 160/26.1 | 26 | 7 | 2.8 | 2.18 | 17.73 | 644.5 | 57.69 | 0.1803 | 320 | 394 |
185/24 | 187/24.2 | 24 | 7 | 3.15 | 2.1 | 18.9 | 705 | 58.08 | 0.154 | 349 | 432 |
185/29 | 181/29 | 26 | 7 | 2.98 | 2.3 | 18.8 | 728 | 62.06 | 0.1591 | 344 | 425 |
185/43 | 185/43.1 | 30 | 7 | 2.8 | 2.8 | 19.6 | 846 | 77.77 | 0.1559 | 349 | 433 |

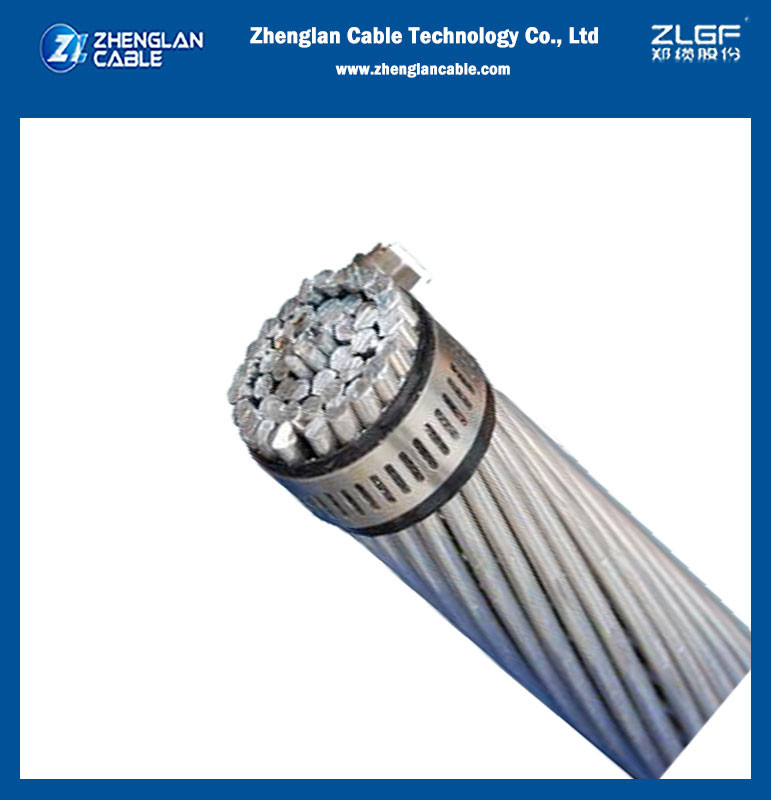

ACSR conductor 95/16mm2 overhead aluminum conductor GOST 839 Product show:
Why you choose us?
If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
