Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO9001, 3C, CE, Etc
Model Number: 1kv XLPE insulated Cable Underground aluminum cable 1x300mm2 power cable
Payment & Shipping Terms
Minimum Order Quantity: 200 meters
Price: 0.5-100USD/m
Packaging Details: Wooden drum, steel wooden drum or customized
Delivery Time: 7-10Working Days
Payment Terms: L/C, T/T , Western Union
Supply Ability: 50000m/day
Outer Sheath: |
PVC |
Insulation Material: |
XLPE |
Size: |
1.5~500mm2 |
Type: |
Low Voltage |
Core Number: |
1core |
Rated Voltage: |
0.6/1KV |
Conductor: |
Aluminum |
Application: |
Underground |
Outer Sheath: |
PVC |
Insulation Material: |
XLPE |
Size: |
1.5~500mm2 |
Type: |
Low Voltage |
Core Number: |
1core |
Rated Voltage: |
0.6/1KV |
Conductor: |
Aluminum |
Application: |
Underground |

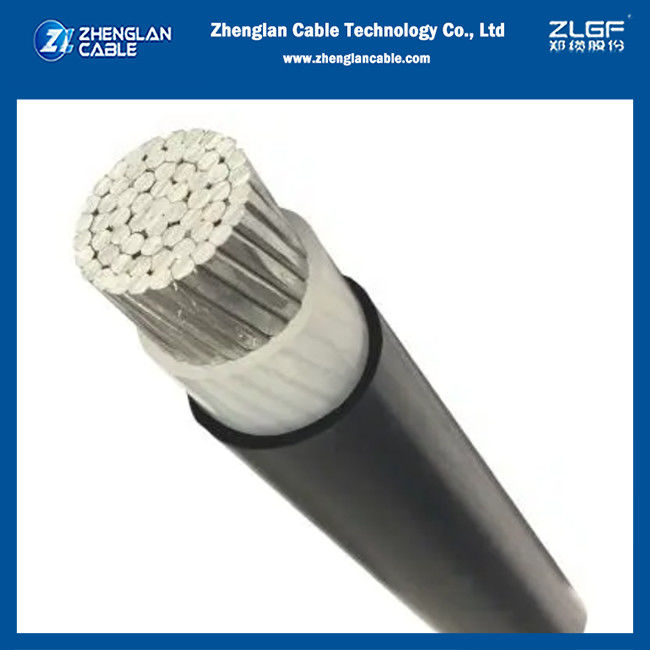

1kv XLPE insulated Cable Underground aluminum cable 1x300mm2 power cable
Application:
Construction:
Conductor: Class 2 stranded aluminum as per IEC 60228
Insulation: XLPE material and thickness shall be as per IEC 60502-1 rated for 90°C continuous operation.
Outer Sheath: Extruded PVC Type ST2 as per IEC 60502-1.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, UV Resistance PVC, Low Smoke Zero Halogen are available on special request. Also, special sheathing materials such as MDPE or HDPE are available on request.
Operating characteristics
1.Cable laying temperature: ≥0°C
2.Cable conductor long-term allowable working temperature:≤90°C
3.Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
4.Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable
1kv XLPE insulated Cable Underground aluminum cable 1x300mm2 power cable Parameters Table:
| Nonmetallic sheath, unarmored aluminum cable | ||||
| Conductor dimensions (mm2) | Insulation thickness (mm) | Sheath thickness | Outer diameter (approximate) | Cable weight (Kg/km) |
| mm | mm | Aluminum core | ||
| 1C | 1C | 1C | ||
| 1.5 | 0.7 | 1.4 | 5.6 | 35 |
| 2.5 | 0.7 | 1.4 | 6 | 42 |
| 4 | 0.7 | 1.4 | 6.5 | 50 |
| 6 | 0.7 | 1.4 | 7 | 60 |
| 10 | 0.7 | 1.4 | 8.1 | 80 |
| 16 | 0.7 | 1.4 | 9.2 | 106 |
| 25 | 0.9 | 1.4 | 10.6 | 146 |
| 35 | 0.9 | 1.4 | 11.8 | 185 |
| 50 | 1 | 1.4 | 13.2 | 241 |
| 70 | 1.1 | 1.4 | 15 | 317 |
| 95 | 1.1 | 1.5 | 16.9 | 409 |
| 120 | 1.2 | 1.5 | 18.5 | 498 |
| 150 | 1.4 | 1.6 | 20.6 | 619 |
| 185 | 1.6 | 1.6 | 22.7 | 750 |
| 240 | 1.7 | 1.7 | 25.3 | 947 |
| 300 | 1.8 | 1.8 | 27.9 | 1163 |
| 400 | 2 | 1.9 | 31.6 | 1514 |
| 500 | 2.2 | 2 | 35 | 1869 |
1kv XLPE insulated Cable Underground aluminum cable 1x300mm2 power cable Products show:
