Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO, 3C, CE, Etc
Model Number: 0.6/1(1.2kv) power cable aluminum cable xlpe insulated lszh sheathed IEC60502-1, IEC60332-1
Payment & Shipping Terms
Minimum Order Quantity: 200-1000m depends on cable's nominal cross sectional
Price: 0.5-100USD/m
Packaging Details: Wooden drum, steel wooden drum or as request
Delivery Time: 7-10Working Days depends on actual quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000m/day
Outer Sheath: |
LSZH |
Insulation: |
XLPE (Cross Linked Polyethylene) |
Size: |
1.5~500mm2 |
Conductor Shape: |
Circular |
Core Number: |
1C |
Rated Voltage: |
0.6/1KV |
Conductor: |
Aluminum |
Application: |
Underground |
Outer Sheath: |
LSZH |
Insulation: |
XLPE (Cross Linked Polyethylene) |
Size: |
1.5~500mm2 |
Conductor Shape: |
Circular |
Core Number: |
1C |
Rated Voltage: |
0.6/1KV |
Conductor: |
Aluminum |
Application: |
Underground |
0.6/1(1.2kv) power cable aluminum cable xlpe insulated lszh sheathed IEC60502-1, IEC60332-1
Application:
Construction:
Conductor: Class 2 stranded aluminum as per IEC 60228 or AAC as per ASTMB230/230M
Insulation: XLPE material and thickness shall be as per IEC 60502-1 rated for 90°C continuous operation.
Outer Sheath: PVC Type ST2 as per IEC 60502-1 or low smoke Halogen free Polyolefin ST7.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, UV Resistance PVC, Low Smoke Zero Halogen are available on special request. Also, special sheathing materials such as MDPE or HDPE are available on request.
Operating characteristics
1. Cable laying temperature: ≥0°C
2. Cable conductor long-term allowable working temperature:≤90°C
3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
4. Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm
Note: D is actual outer diameter of the cable
0.6/1(1.2kv) power cable aluminum cable xlpe insulated lszh sheathed IEC60502-1, IEC60332-1 Table:
Single Core Nonmetallic sheath, unarmored aluminum cable | ||||
Conductor dimensions | Insulation thickness | Sheath thickness | Outer diameter (approximate) | Aluminum core Cable weight |
mm2 | mm | mm | mm | Kg/km |
1.5 | 0.7 | 1.4 | 5.6 | 35 |
2.5 | 0.7 | 1.4 | 6 | 42 |
4 | 0.7 | 1.4 | 6.5 | 50 |
6 | 0.7 | 1.4 | 7 | 60 |
10 | 0.7 | 1.4 | 8.1 | 80 |
16 | 0.7 | 1.4 | 9.2 | 106 |
25 | 0.9 | 1.4 | 10.6 | 146 |
35 | 0.9 | 1.4 | 11.8 | 185 |
50 | 1 | 1.4 | 13.2 | 241 |
70 | 1.1 | 1.4 | 15 | 317 |
95 | 1.1 | 1.5 | 16.9 | 409 |
120 | 1.2 | 1.5 | 18.5 | 498 |
150 | 1.4 | 1.6 | 20.6 | 619 |
185 | 1.6 | 1.6 | 22.7 | 750 |
240 | 1.7 | 1.7 | 25.3 | 947 |
300 | 1.8 | 1.8 | 27.9 | 1163 |
400 | 2 | 1.9 | 31.6 | 1514 |
500 | 2.2 | 2 | 35 | 1869 |

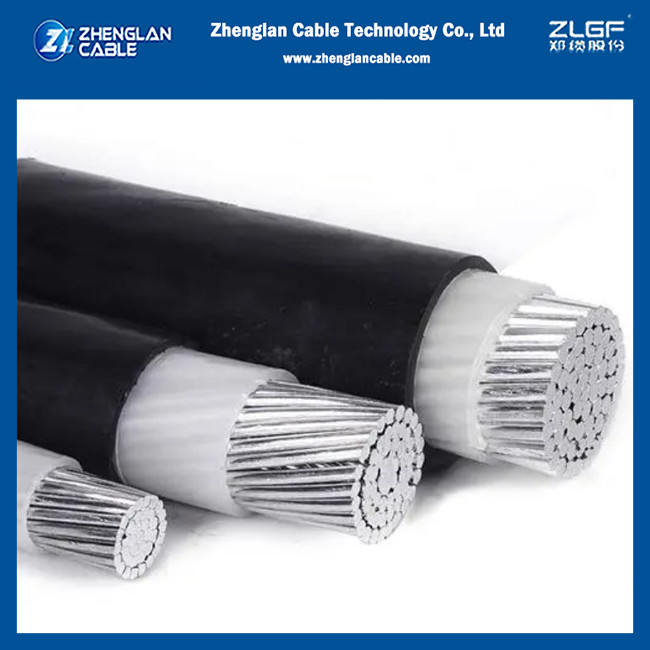

0.6/1(1.2kv) power cable aluminum cable xlpe insulated lszh sheathed IEC60502-1, IEC60332-1 Products show:
