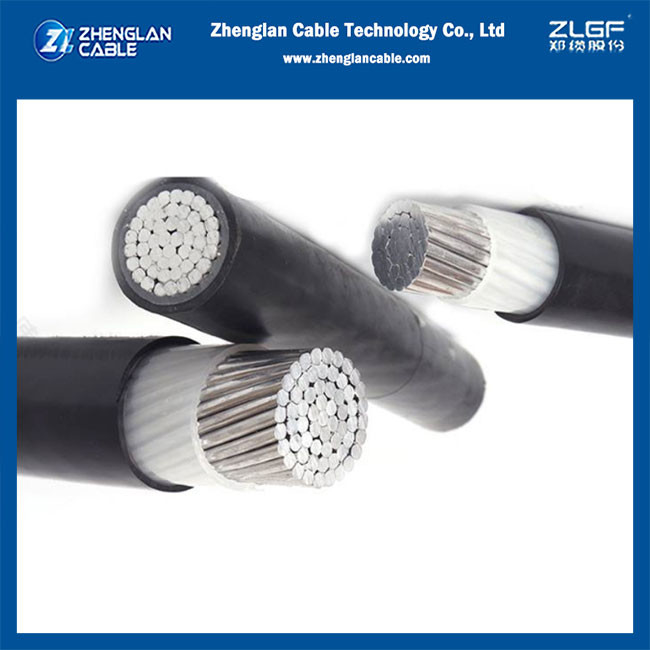

Insulated Lszh Sheathed Aluminum Cable Underground Vde0276 Na2xh Xlpe

NA2XH XLPE INSULATED LSZH SHEATHED ALUMINUM CABLE UNDERGROUND CABLE VDE0276


Applications:

0.6/1kv xlpe insulated PVC-st2 sheathed 90℃ low voltage power cable AAC/XLPE/PVC IEC60502-1, IEC60332-1 cables is applicable for AC 50Hz transmission and distribution lines with rated voltage of 1.8/3KV or below. The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706- 2008 and international standards IEC60502-2005.

Operating characteristics

1. Cable laying temperature: ≥0°C

2. Cable conductor long-term allowable working temperature:≤90°C

3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C

4. Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request

NA2XH XLPE INSULATED LSZH SHEATHED ALUMINUM CABLE UNDERGROUND CABLE VDE0276 Insulation:

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code:

Outer Sheath material and feature: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Cable Sheaths's Fire Performance: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

NA2XH XLPE INSULATED LSZH SHEATHED ALUMINUM CABLE UNDERGROUND CABLE VDE0276 Cable Parameters:

NA2XH XLPE INSULATED LSZH SHEATHED ALUMINUM CABLE UNDERGROUND CABLE VDE0276 Productos show:
