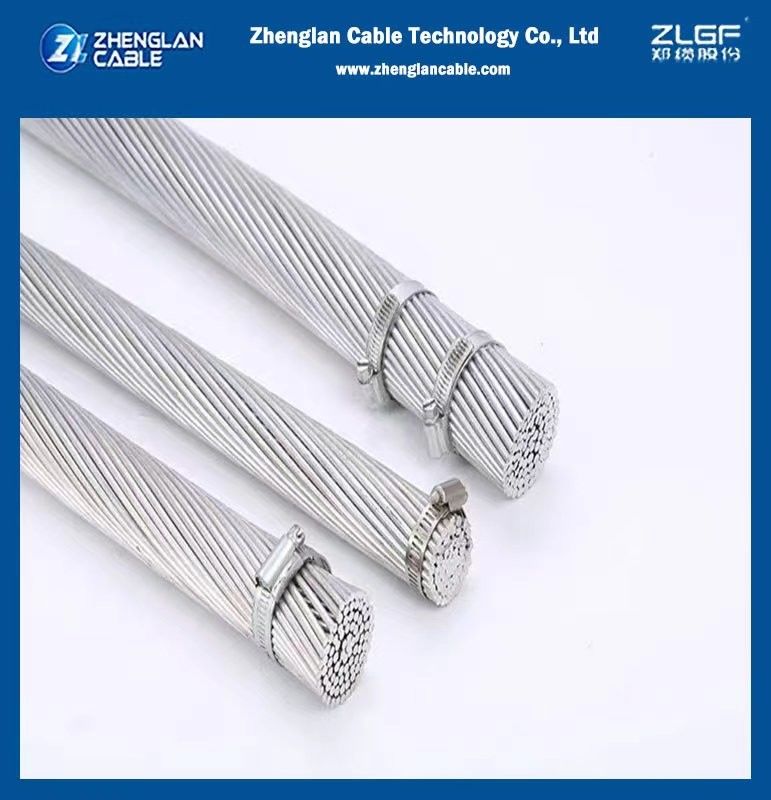

Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089

Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089
Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089
Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089 Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089 Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089

Large Image :  Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: aluminum conductor with aluminum alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 100KM/Month

Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089

Description
Material: Aluminium&aluminum Alloy Quality: 100% IEC Test
Standard: IEC 60189 MOQ: 3tons
High Light:

Overhead Transmission Aluminum Conductor

,

Aluminum Alloy Reinforced Bare Conductor

,

250sqmm Aluminum Bare Conductor

Overhead Transmission Aluminum Conductor Aluminum Alloy Reinforced (ACAR) bare comnductor 250sqmm 12/7 Standard IEC61089



Application:

Used as bare overhead transmission cable and as primary and secondary distribution cable. A good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design; for equal weight, ACAR offers higher strength and ampacity than ACSR.





Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized


Specification:


ACAR bare conductor meets or exceeds the following ASTM specifications:

• B230 Aluminum 1350-H19 Wire for Electrical Purposes.

• B398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.

• B524 Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Alloy Reinforced (ACAR, 1350/6201).


Aluminum 1350-H19 wires, concentrically stranded about an aluminum-alloy 6201-T81 core. Although the alloy strands generally comprise the core of the conductor, in some constructions they are distributed in layers throughout the aluminum 1350-H19 strands.




Technical parameters



Aluminum Conductors Aluminum Alloy Reinforced IEC 61089
Characteristics of A1/A2 Conductors
Code number Diameter No. of wires Areas Linear mass
kg/km
Rated strength
kN
D.C resistance
Ohm/km
Wire
mm
Cond.
mm
A1 A2 A1
mm2
A2
mm2
Total
mm2
16 1.76 5.28 4 3 9.73 7.3 17 46.6 3.85 1.7896
25 2.2 6.6 4 3 15.2 11.4 26.6 72.8 5.93 1.1453
40 2.78 8.35 4 3 24.3 18.3 42.6 116.5 9.25 0.7158
63 3.49 10.5 4 3 38.3 28.7 67.1 183.5 14.38 0.4545
100 4.4 13.2 4 3 60.8 45.6 106 291.2 22.52 0.2863
125 2.97 14.9 12 7 83.3 48.6 132 362.7 27.79 0.2302
160 3.36 16.8 12 7 107 62.2 169 464.2 35.04 0.1798
200 3.76 18.8 12 7 133 77.8 211 580.3 43.13 0.1439
250 4.21 21 12 7 167 97.2 264 725.3 53.92 0.1151
250 3.04 21.3 18 19 131 138 269 742.2 60.39 0.1154
315 3.34 23.4 30 7 263 61.3 324 892.6 60.52 0.0916
315 3.42 23.9 18 19 165 174 339 935.1 76.09 0.0916
400 3.76 26.3 30 7 334 77.8 411 1133.5 75.19 0.0721
400 3.85 27 18 19 210 221 431 1187.5 95.58 0.0721
450 3.99 27.9 30 7 375 87.6 463 1275.2 84.59 0.0641
450 4.08 28.6 18 19 236 249 485 1335.9 107.52 0.0641
500 4.21 29.4 30 7 417 97.3 514 1416.9 93.98 0.0577
500 4.31 30.1 18 19 262 277 539 1484.3 119.47 0.0577
560 4.45 31.2 30 7 467 109 576 1586.9 105.26 0.0515
560 3.45 31 54 7 504 65.4 570 1571.9 101.54 0.0516
630 3.71 33.4 42 19 454 205 660 1820.0 130.25 0.0458
630 3.79 34.1 24 37 271 417 688 1897.5 160.19 0.0458
710 3.94 35.5 42 19 512 232 743 2051.2 146.78 0.0407
710 4.02 36.2 24 37 305 470 775 2138.4 180.53 0.0407
800 4.18 37.6 42 19 577 261 838 2311.2 165.39 0.0361
800 4.27 38.4 24 37 344 530 873 2409.5 203.41 0.0361
900 4.43 39.9 42 19 649 294 942 2600.1 186.06 0.0321
900 3.66 40.2 54 37 567 388 955 2638.4 199.54 0.0321
1000 3.8 41.8 72 19 816 215 1032 2849.1 190.94 0.0289
1000 3.85 42.4 54 37 630 432 1061 2931.6 221.71 0.0289
1120 4.02 44.2 72 19 914 241 1155 3191.0 213.85 0.0258
1120 4.08 44.9 54 37 705 483 1189 3283.4 248.32 0.0258
1250 4.25 46.7 72 19 1020 269 1289 3561.4 238.68 0.0231
1250 4.31 47.4 54 37 787 539 1327 3664.5 277.14 0.0231
1400 4.5 49.4 72 19 1143 302 1444 3988.8 267.32 0.0207


Product show:



Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089 0



Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089 1



Overhead Transmission Aluminum Conductor Alloy Reinforced Bare 250sqmm 12/7 IEC61089 2



Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
