Aerial Bundled ABC Aluminum Cable Wire Overhead Line 630mm2

Product Details

Place of Origin: Wuzhi, Henan, China

Brand Name: Zhenglan Cable

Certification: ISO, 3C, CE, Etc

Model Number: Aerial Bundled Cable ABC Cable Aluminum Cable Manufacturer Wire Overhead Line

Payment & Shipping Terms

Minimum Order Quantity: 200-1000m depends on cable's nominal cross sectional

Price: 0.5-100USD/m

Packaging Details: Wooden drum, steel wooden drum or as request

Delivery Time: 7-10 Working Days depends on actual quantity

Payment Terms: L/C, T/T, Western Union

Supply Ability: 80000m/day

Get Best Price
High Light:

Aerial Bundled ABC Aluminum Cable

,

630mm2 ABC Aluminum Insulated Cable

,

ABC Aluminum Insulated Cable Overhead Line

Outer Sheath:
PVC
Insulation:
XLPE
Size:
6~630mm2
Conductor Shape:
Circular
Conductor:
Aluminum
Color:
Black
Outer Sheath:
PVC
Insulation:
XLPE
Size:
6~630mm2
Conductor Shape:
Circular
Conductor:
Aluminum
Color:
Black
Aerial Bundled ABC Aluminum Cable Wire Overhead Line 630mm2

Aerial Bundled Cable ABC Cable Aluminum Cable Manufacturer Wire Overhead Line



Application:

Multicore aluminum core low voltage 4Cx70mm2 xlpe insulated power cable are used for electricity supply in low voltage installation system  for power stations, industry and switchgear as well as for urban supply networks, indoors, cable trunking, outdoors and burried in the ground,


Construction:
ConductorClass 2 stranded aluminum as per IEC 60228 or as per ASTMB230/230M
InsulationXLPE material and thickness shall be as per IEC 60502-1 rated for 90°C continuous operation.

Outer Sheath: PVC Type ST2 as per IEC 60502-1 or low smoke Halogen free Polyolefin ST7.

Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, UV Resistance PVC, Low Smoke Zero Halogen are available on special request. Also, special sheathing materials such as MDPE or HDPE are available on request.



Operating characteristics
1. Cable laying temperature: ≥0°C
2. Cable conductor long-term allowable working temperature:≤90°C
3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
4. Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm

Note: D is actual outer diameter of the cable



Aerial Bundled Cable ABC Cable Aluminum Cable Manufacturer Wire Overhead Line:


Conductor dimensions (mm2) Insulation thickness (mm) Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Aluminum core
4C 4C 4C
1.5 0.7 1.8 11.1 167
2.5 0.7 1.8 12.1 141
4 0.7 1.8 13.2 172
6 0.7 1.8 14.4 217
10 0.7 1.8 17.2 282
16 0.7 1.8 19.8 378
25 0.9 1.8 23.2 527
35 0.9 1.8 26.1 659
50 1 1.9 29.7 840
70 1.1 2 30 1163
95 1.1 2.1 34.2 1524
120 1.2 2.3 37.2 1898
150 1.4 2.4 41.2 2369
185 1.6 2.6 46.2 2955
240 1.7 2.8 53.3 3777
300 1.8 3 59.4 4630
400 2 3.3 68.4 5877

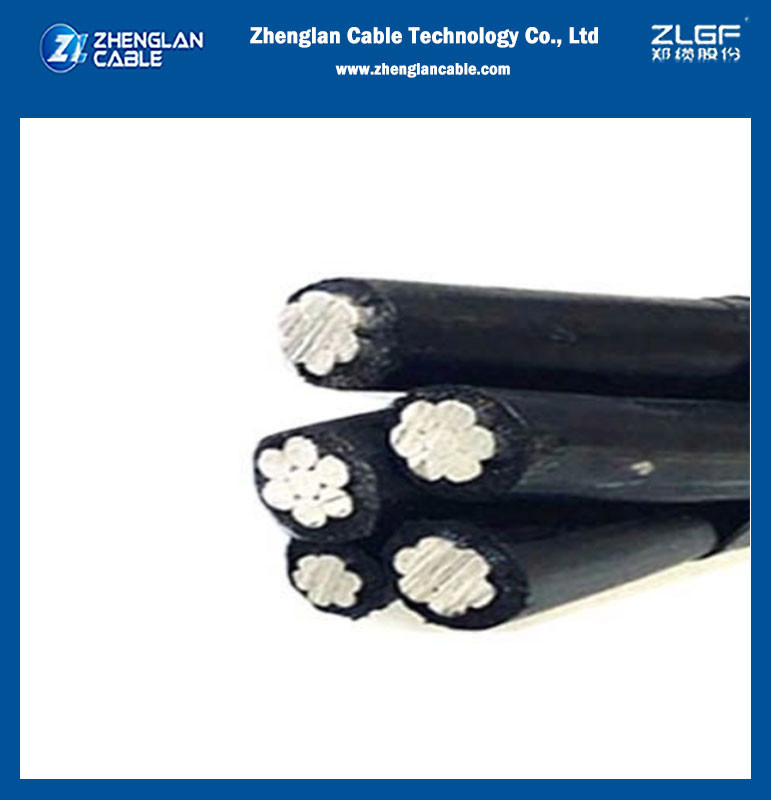

Aerial Bundled Cable ABC Cable Aluminum Cable Manufacturer Wire Overhead Line picture:

Aerial Bundled ABC Aluminum Cable Wire Overhead Line 630mm2 0Aerial Bundled ABC Aluminum Cable Wire Overhead Line 630mm2 1



Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
