ACSR Overhead Bare Conductor With Code Is 16~1120 Basic Design To BS 215-2 / BS EN 50182 / IEC 61089 (AAC, AAAC, ACSR)

ACSR Overhead Bare Conductor With Code Is 16~1120 Basic Design To BS 215-2 / BS EN 50182 / IEC 61089 (AAC, AAAC, ACSR)
ACSR Overhead Bare Conductor With Code Is 16~1120 Basic Design To BS 215-2 / BS EN 50182 / IEC 61089 (AAC, AAAC, ACSR)

Large Image :  ACSR Overhead Bare Conductor With Code Is 16~1120 Basic Design To BS 215-2 / BS EN 50182 / IEC 61089 (AAC, AAAC, ACSR)

Product Details:
Place of Origin: China
Brand Name: Zhenglan cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: ACSR Overhead Bare Conductor
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters
Packaging Details: Wooden drum, wood and steel drum, as customer's request
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,

ACSR Overhead Bare Conductor With Code Is 16~1120 Basic Design To BS 215-2 / BS EN 50182 / IEC 61089 (AAC, AAAC, ACSR)

Description
Usage: Overhead Power Transmission Material: Aluminum&STEEL
High Light:

acsr aluminum conductor steel reinforced

,

overhead line conductor

Overhead Bare Conductor Which The Code Is 16~1120 Basic Design To BS 215-2 / BS EN 50182 / IEC 61089 (AAC, AAAC, ACSR)



Overhead Bare Conductor APPLICATION:



Bare aluminum conductors, especially in the form of Aluminum Conductors Steel Reinforced (ACSR), have been widely used for Overhead Transmission Lines as the most cost-effective and dependable product.



As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC grade Aluminum Wires over a high strength coated steel core. The core may be single wire or stranded, depending on the size. Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application.



ACSR has long been widely used as overhead high-tension transmission lines and has an established reputation for economy and dependability.

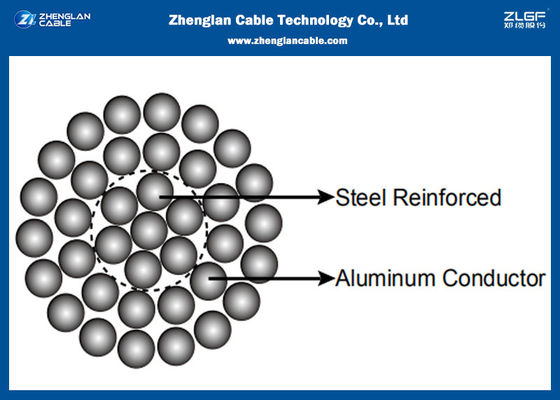

Overhead Bare Conductor CONSTRUCTION

ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H16

on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.



ACSR is according to electrical and mechanical strength requirements of transmission or distribution cable, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.





Overhead Bare Conductor  STANDARD:

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards





Overhead Bare Conductor  CHARACTERISTICS:

1. Simple construction;

2. Easy installation and maintenance;

3. Lower price and large transmission capacity;

4. Better for long distance power transmission;



ELECTRICAL PROPERTIES:



Density@20℃ Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C Aluminium: 0.00403 (°C)
Resistivity@20°C Aluminium: 0.00403 (°C)
Linear Expansivity Aluminium: 23 x10 (°C)
Galvanised Steel: 11.5 x10 (1/°C)

Service Conditions

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m2
Seismic Acceleration 0.12 - 0.05g
Isokeraunic Level 10 – 18
Relative Humidity 5 – 100%



CONSTRUCTION PARAMETERS:

IEC 61089





CODE



Nominal Area

Stranding Overall Overall Diameter



Weight

Breaking

Load

Electrical

Resistance

@20℃

Current

Rating*

AL Steel Total AL Steel
  mm2 mm2 mm2 No.xmm No.xmm mm Kg/Km KN Ω/Km A
16 16 2.67 18.7 6/1.84 1/1.84 5.52 64.6 6.08 1.7934 85
25 25 4.17 29.2 6/2.30 1/2.30 6.9 100.9 9.13 1.1478 112
40 40 6.67 46.7 6/2.91 1/2.91 8.73 161.5 14.4 0.7174 150
63 63 10.5 73.5 6/3.66 1/3.66 10.98 254.4 21.63 0.4555 198
100 100 16.7 117 6/4.61 1/4.61 13.83 403.8 34.33 0.2869 263
125 125 6.94 132 18/2.97 1/2.97 14.85 397.9 29.17 0.2304 299
125 125 20.4 145 26/2.47 7/1.92 15.64 503.9 45.69 0.231 302
160 160 8.89 169 18/3.36 1/3.36 16.8 509.3 36.18 0.18 347
160 160 26.1 186 26/2.80 7/2.18 17.74 644.9 57.69 0.1805 351
200 200 11.1 211 18/3.76 1/3.76 18.8 636.7 44.22 0.144 398
200 200 32.6 233 26/3.13 7/2.43 19.81 806.2 70.13 0.1444 402
250 250 24.6 275 22/3.80 7/2.11 21.53 880.6 68.72 0.1154 458
250 250 40.7 291 26/3.50 7/2.72 22.16 1007.7 87.67 0.1155 461
315 315 21.8 337 45/2.99 7/1.99 23.91 1039.6 79.03 0.0917 526
315 315 51.3 366 26/3.93 7/3.05 24.87 1269.7 106.83 0.0917 530
400 400 27.7 428 45/3.36 7/2.24 26.88 1320.1 98.36 0.0722 607
400 400 51.9 452 54/3.07 7/3.07 27.63 1510.3 123.04 0.0723 610
450 450 31.1 481 45/3.57 7/2.38 28.56 1485.2 107.47 0.0642 651
450 450 58.3 508 54/3.26 7/3.26 29.34 1699.1 138.42 0.0643 655
500 500 34.6 35 45/3.76 7/2.51 30.09 1650.2 119.41 0.0578 693
500 500 64.8 565 54/3.43 7/3.43 30.87 1887.9 153.8 0.0578 697
560 560 38.7 599 45/3.98 7/2.65 31.83 1848.2 133.74 0.0516 741
560 560 70.9 631 54/3.85 19/2.18 32.68 2103.4 172.59 0.0516 745
630 630 43.6 674 45/4.22 7/2.81 33.75 2079.2 150.45 0.0459 794
630 630 79.8 710 54/3.85 19/2.31 34.65 2366.3 191.77 0.0459 798
710 710 49.1 759 45/4.48 7/2.99 35.85 2343.2 169.56 0.0407 851
710 710 89.9 800 54/4.09 19/2.45 36.79 2666.8 216.12 0.0407 856
800 800 34.6 835 72/3.76 7/2.51 37.61 2480.2 167.41 0.0361 910
800 800 66.7 867 84/3.48 7/3.48 38.28 2732.7 205.33 0.0362 912
800 800 101 901 54/4.34 19/2.61 39.09 3004.9 243.52 0.0362 916
900 900 38.9 939 72/3.99 7/2.66 39.9 2790.2 188.33 0.0321 972
900 900 75 975 84/3.69 7/3.69 40.59 3074.2 226.5 0.0322 974
1000 1000 43.2 1043 72/4.21 7/2.80 42.08 3100.3 209.26 0.0289 1031
1120 1120 47.3 1167 72/4.45 19/1.78 44.5 3464.9 234.53 0.0258 1096
1120 1120 91.2 1211 84/4.12 19/2.47 45.31 3811.5 283.17 0.0258 1100
