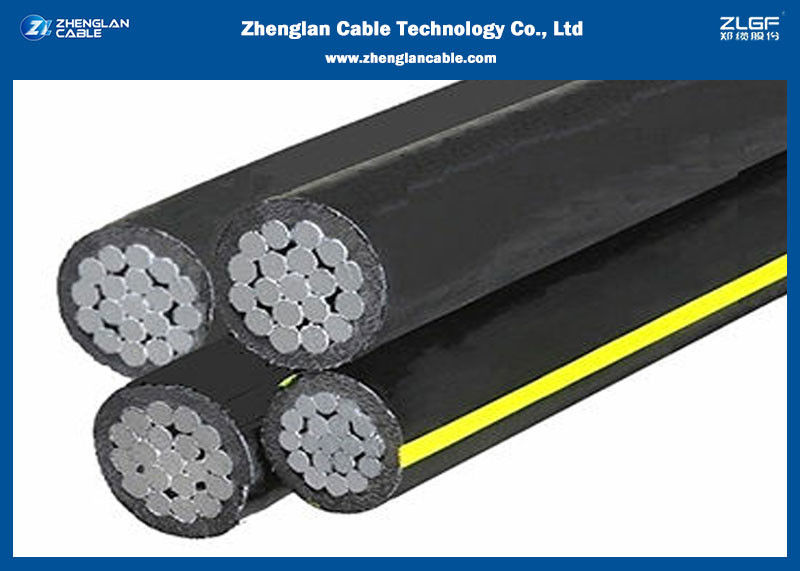

IEC Standard Overhead Insulated Cable , 10kV ABC Quadruplex Service Drop Cable

IEC Standard Overhead Insulated Cable , 10kV ABC Quadruplex Service Drop Cable
IEC Standard Overhead Insulated Cable , 10kV ABC Quadruplex Service Drop Cable IEC Standard Overhead Insulated Cable , 10kV ABC Quadruplex Service Drop Cable

Large Image :  IEC Standard Overhead Insulated Cable , 10kV ABC Quadruplex Service Drop Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: JKLY-10,JKLHYJ-10,JKYJ-10,JKTRYJ-1
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 100Km/Month

IEC Standard Overhead Insulated Cable , 10kV ABC Quadruplex Service Drop Cable

Description
Insulation Material: PVC/XLPE Usage: Overhead
Type: Low Voltage/Medium Voltage Standards: GB/T14049-2008
Conductor Material: Aluminum Color: Black
High Light:

overhead electric cables

,

flexible building wire

IEC Standard Overhead Insulated Cable , 10kV ABC Quadruplex Service Drop Cable



Place of Origin:Henan,China (Mainland)
Brand Name:ZHENGLAN
Insulation Material:PVC/XLPE
Application:Overhead
Conductor Material:Aluminum
Color:black
Standards:GB/T14049-2008
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Overhead Insulated Cable Description


ABC cable The cable bundle The three single core cables are bundle around the galvanized steel catenary in a right hand lay. Operating temperature: A .Normal operation 90oC; B. Emergency operation 105oC. Short circuit operation250oC. This cable can be used for aerial as well as underground installation. Non Metallic Screened HV ABC conductors Phase conductors are stranded circular compacted aluminum alloy 1350 to H68 condition. The standard catenary is bare stranded circular compacted all aluminum alloy AAAC/1220 conductor. For special applications, such as high wind locations, aluminum-clad steel-reinforced catenaries are available. Conductor Screen, Insulation and Insulation Screen Semi-conductive conductor screen, XLPE insulation and semi-conductive insulation screen are triple extruded. The insulation screen is hand strippable without preheating and complies with strippability and adhesion tests given in AS/NZS 3599.

Overhead Insulated Cable Application

Aerial bundled cables are mainly used for secondary overhead lines on poles or as feedersto residential premises.

Standard
Basic design to IEC 60502 / AS/NZS 3599-1 standards

Construction
Phase Conductor: Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen: Extruded semi-conductive layer.
insulation: XLPE.
insulation Screen: Extruded semi-conductive layer.
metallic Screen(optional): Copper wire screen or copper tape screen.
Separator: Semi-conductive swellable tape.
outer Sheath: HDPE.
Support Conductor: Galvanized steel wires.
Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

Model Description
JKYJ-10 Copper core XLPE insulated aerial insulated cable rated voltage 10kV
JKTRYJ-10 Flexible copper core XLPE insulated aerial insulated cable rated voltage 10kV
JKLHYJ-10 Aluminum alloy core XLPE insulated aerial insulated cable rated voltage 10kV
JKY-10 Copper core PE insulated aerial insulated cable rated voltage 10kV
JKTRY-10 Flexible copper core PE insulated aerial insulated cable rated voltage 10kV
JKLY-10 Aluminum core PE insulated aerial insulated cable rated voltage 10kV
JKLHY-10 Aluminum alloy core PE insulated aerial insulated cable rated voltage 10kV



Why Choose Zhenglan Cable:>OEM/ODM services provided>Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007>Registered capital of $30 million and factory covers an area of 60,000㎡>Advanced test equipment and procedures, 100% inspection before factory>Enough stocks and the higest efficient shipping time guarranteed >Professional pre-sales and after-sales services provided
