Nominal Section:16~630mm² 6/10KV MV XLPE insulated power cable /PVC jacket cable(CU/PVC/XLPE/LSZH/DSTA)

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: Nominal Section:16~630mm² 6/10KV MV XLPE insulated power cable

Payment & Shipping Terms

Minimum Order Quantity: 200 meters

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Get Best Price
Highlight:

medium voltage underground cable

,

multi conductor power cable

Jacket:
PVC
Insulation Material:
XLPE
Size:
16~630
Type:
MV
Application:
Construction
Number Of Cores:
3
Jacket:
PVC
Insulation Material:
XLPE
Size:
16~630
Type:
MV
Application:
Construction
Number Of Cores:
3
Nominal Section:16~630mm² 6/10KV MV XLPE insulated power cable /PVC jacket cable(CU/PVC/XLPE/LSZH/DSTA)

Nominal Section:16~630mm² 6/10KV MV XLPE insulated power cable /PVC jacket cable(CU/PVC/XLPE/LSZH/DSTA)

1.Application
Hard Skin Standard Fire Resistant Cables for use primarily in fire detection, fire alarm, voice alarm, and emergency lighting circuits. These cables are designed to continue to operate for a period of time in a fire situation. 'Standard' fire resistance is recommended for general use.

2.Product Standard
IEC60502

3.Characteristics
Voltage Rating 300/500V
Operating Temperature -40°C to +90°C Minimum
Bending Radius 6 x overall diameter



Nom.

Cross-

Section

Area

  Unarmoured Cables


Nom.

Insulation

Thickness

Copper

Tape

Thickness

Copper

Wire

Screen

Area*

Nom.

Sheath

Thickness

Approx.

Overall

Diameter



mm² mm mm mm² mm mm kg/km
16 3.4 0.1 16 1.8 18 450 350
25 3.4 0.1 16 1.8 20 560 400
35 3.4 0.1 16 1.8 21 680 460
50 3.4 0.1 16 1.8 22 810 520
70 3.4 0.1 16 1.8 24 1050 620
95 3.4 0.1 16 1.8 25 1320 730
120 3.4 0.1 16 1.8 27 1580 840
150 3.4 0.1 25 1.9 28 1880 960
185 3.4 0.1 25 1.9 30 2250 1100
240 3.4 0.1 25 2.0 33 2870 1350
300 3.4 0.1 25 2.1 35 3490 1580
400 3.4 0.1 35 2.2 39 4350 1920
500 3.4 0.1 35 2.2 39.9 5235 2240
630 3.4 0.1 35 2.3 43.7 6675 2765

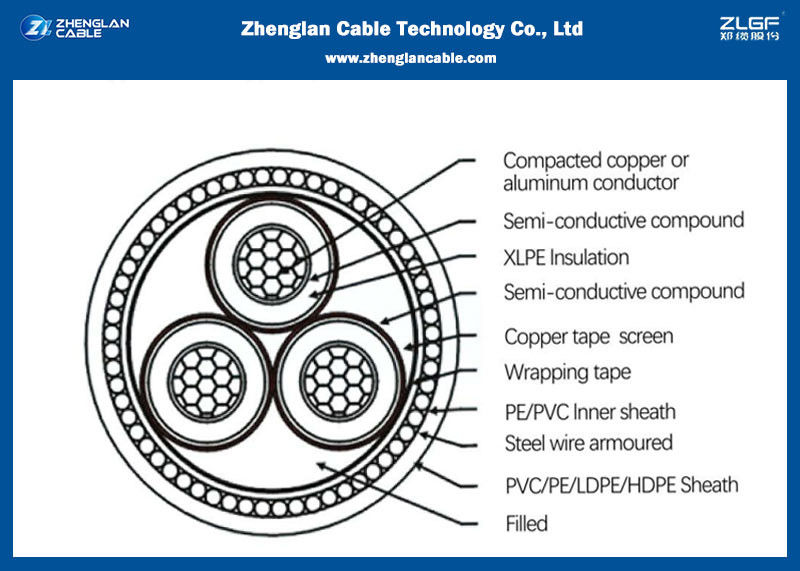

Nominal Section:16~630mm² 6/10KV MV XLPE insulated power cable /PVC jacket cable(CU/PVC/XLPE/LSZH/DSTA) 0

Nominal Section:16~630mm² 6/10KV MV XLPE insulated power cable /PVC jacket cable(CU/PVC/XLPE/LSZH/DSTA) 1
