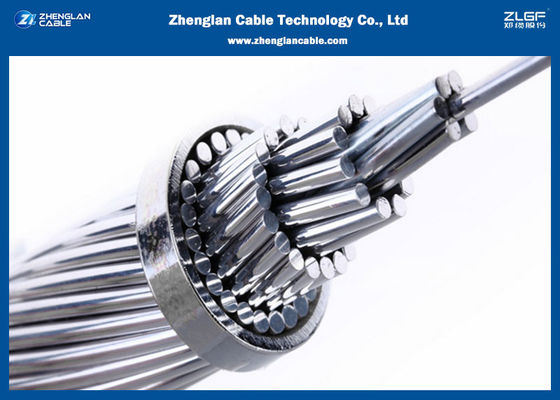

AAC Overhead Bare Conductor Wire/AWG Cable (Nominal Area:10~1500mm2), (AAC,AAAC,ACSR)

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: Nominal Area:500mm2 AAC Overhead Bare Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: 300 meters

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 15 days

Payment Terms: L/C, T/T,

Get Best Price
Highlight:

bare electrical wire

,

all aluminum conductor

Material:
AL
Out Sheath Color:
No
Core:
Normal Or Customized
Cable Drum Length:
Normal Or Customized
Characted:
Bare Conductor
Armoured:
No
Nominal Area:
10~1500
Material:
AL
Out Sheath Color:
No
Core:
Normal Or Customized
Cable Drum Length:
Normal Or Customized
Characted:
Bare Conductor
Armoured:
No
Nominal Area:
10~1500
AAC Overhead Bare Conductor Wire/AWG Cable (Nominal Area:10~1500mm2), (AAC,AAAC,ACSR)

Overhead Bare Conductor Wire(Nominal Area:500mm2), AAC Conductor according to IEC 61089



AWG Cable​ APPLICATION

AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%.



AWG Cable​  STANDARD

Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards.



Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.



AWG Cable​  ELECTRICAL PROPERTIES



density@20ºC 2.703 kg/dm
Temperature Coefficient@20°C 0.00403 (°C)
resistivity@20°C 0.028264
linear Expansivity 23 x10 (°C)
Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 - 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%



TECHNICAL DATA

Numbers of Wires Final modules of Elasticity Coeficient of linear Expansion
AL Kg/mm2 Lb/in2 1/Cº 1/Fº
7 6000 8.5 x106 23.0 x10-6 112.8 x10-6
19 5700 8.1 x106 23.0 x10-6 112.8 x10-6
37 5700 8.1 x106 23.0 x10-6 112.8 x10-6
61 5500 7.8 x106 23.0 x10-6 112.8 x10-6
91 5500 7.8 x106 23.0 x10-6 112.8 x10-6



CONSTRUCTION PARAMETERS

• IEC 60189

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
10 10 7/1.35 4.05 27.4 1.95 2.8633 62
16 16 7/1.71 5.13 43.8 3.04 1.7896 84
25 25 7/2.13 6.39 68.4 4.5 1.1453 110
40 40 7/2.70 8.1 109.4 6.8 0.7158 147
63 63 7/3.39 10.17 172.3 10.39 0.4545 195
100 100 19/2.59 12.95 274.8 17 0.2877 259
125 125 19/2.89 14.45 343.6 21.25 0.2302 297
160 160 19/3.27 16.35 439.8 26.4 0.1798 345
200 200 19/3.66 18.3 549.7 32 0.1439 396
250 250 19/4.09 20.45 687.1 40 0.1151 454
315 315 37/3.29 23.03 867.9 51.97 0.0916 522
400 400 37/3.71 25.97 1102 64 0.0721 603
450 450 37/3.94 27.58 1239.8 72 0.0641 647
500 500 37/4.15 29.05 1377.6 80 0.0577 688
560 560 37/4.39 30.73 1542.9 89.6 0.0515 736
630 630 61/3.63 32.67 1738.3 100.8 0.0458 789
710 710 61/3.85 34.65 1959.1 113.6 0.0407 845
800 800 61/4.09 36.81 2207.4 128 0.0361 905
900 900 61/4.33 38.97 2483.3 144 0.0321 967
1000 1000 61/4.57 41.13 2759.2 160 0.0289 1026
1120* 1120 91/3.96 43.56 3093.5 179.2 0.0258 1091
1250* 1250 91/4.18 45.98 3452.6 200 0.0231 1157
1400* 1400 91/4.43 48.73 3866.9 224 0.0207 1226
1500* 1500 91/4.58 50.38 4143.1 240 0.0193 1270
