0.6/1KV Low Voltage Single Core Power Cable (Armoured) , XLPE Insulated Cable according to IEC 60502-1 (CU/PVC/XLPE/LSZH

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 0.6/1KV Single Core Power Cable (Armoured) XLPE Insulated

Payment & Shipping Terms

Minimum Order Quantity: 300 meters

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 12 days

Payment Terms: L/C, T/T,

Get Best Price
Highlight:

xlpe underground cable

,

xlpe insulated pvc sheathed cable

Material:
CU
Application:
Power Station
Insulation:
XLPE
Out Sheath Color:
Black Or Customized
Core:
1
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
Material:
CU
Application:
Power Station
Insulation:
XLPE
Out Sheath Color:
Black Or Customized
Core:
1
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
0.6/1KV Low Voltage Single Core Power Cable (Armoured) , XLPE Insulated Cable according to IEC 60502-1 (CU/PVC/XLPE/LSZH

0.6/1KV Low Voltage Single Core Power Cable (Armoured) , XLPE Insulated Cable according to IEC 60502-1

Description:


0.6/1KV XLPE Insulated Cables (Armoured)
IEC60502,IEC60228,GB/T 12706.1-2008
CE,CCC,KEMA,ISO

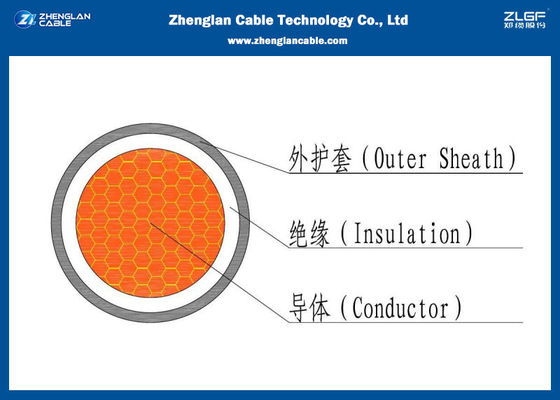

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Application:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request

Insulation:
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):
1 Core: Red or Black;   2 Cores: Red, Black;    3 Cores: Red, Yellow, Blue;   4 Cores: Red, Yellow, Blue, Black;     5 Cores: Red, Yellow, Blue, Black, Green;  Above 5 Cores: Black Cores with White numerals

Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.

Armour:
Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths:
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
0.6/1KV Low Voltage Single Core Power Cable (Armoured) , XLPE Insulated Cable according to IEC 60502-1 (CU/PVC/XLPE/LSZH 00.6/1KV Low Voltage Single Core Power Cable (Armoured) , XLPE Insulated Cable according to IEC 60502-1 (CU/PVC/XLPE/LSZH 1
Cable Parameters:
Single Core Power Cable (Armoured)

Nominal

Area

Approx

Conductor

Diameter

Nominal

Insulation

Thickness

Nominal

Bedding Thickness

Nominal Alum Wire dia.

Nominal

Sheath

thickness

Approx.

Overall

Diameter

Approx.

Weight

mm² mm mm mm mm mm mm Kg/Km
1x50 8.8 1.0 1.0 1.25 1.8 19.5 730
1x70 10.6 1.1 1.0 1.25 1.8 21.5 970
1x95 12.4 1.1 1.0 1.6 1.8 24 1220
1x120 14 1.2 1.0 1.6 1.8 25.5 1520
1x150 15.5 1.4 1.0 1.6 1.8 27.5 1920
1x185 17.4 1.6 1.0 1.6 1.8 30 2320
1x240 20.3 1.7 1.0 1.6 1.9 33 2920
1x300 22.7 1.8 1.0 1.6 1.9 35 3650
1x400 25.4 2.0 1.2 2.0 2.1 40.5 4670
1x500 28.8 2.2 1.2 2.0 2.2 44.5 5870
1x630 30.4 2.4 1.2 2.0 2.3 49 7360
1x800 - 2.6 1.4 2.5 2.5 55.5 9360
1x1000 - 2.8 1.4 2.5 2.7 61 11350
