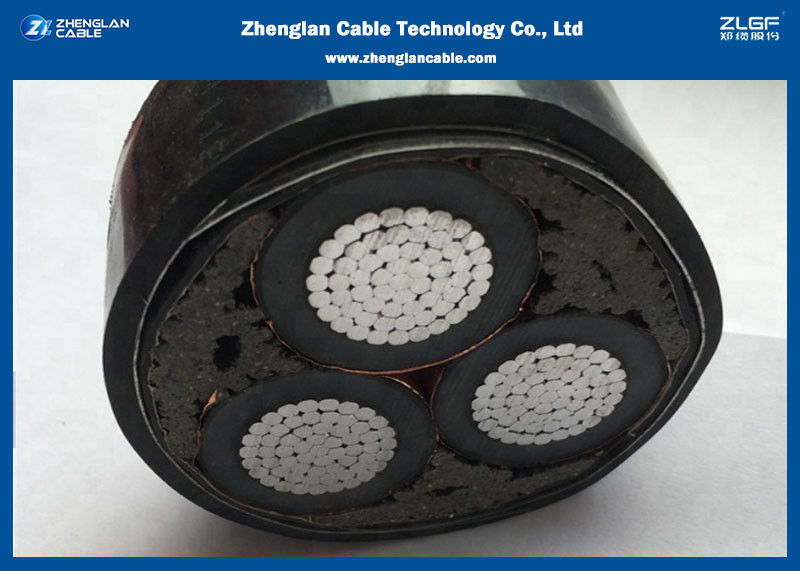

Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)

Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)
Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)
Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA) Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA) Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA) Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA) Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)

Large Image :  Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: ZR-YJV22-8.7/10KV-3*150MM2-#8207
Payment & Shipping Terms:
Minimum Order Quantity: 200 meters
Price: 0.2-70USD/m
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 420KM/week

Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)

Description
Conductor Material: Copper/Aluminum Jacket: PVC
Insulation Material: XLPE Size: 1.5~1000mm2
Type: Low Voltage Application: Construction
Number Of Cores: 3+1 Rated Voltage: 0.6/1KV
High Light:

pvc insulated flexible cable

,

pvc sheathed power cable

Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)

1.Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage
Application: Construction
Conductor Material: Copper/Aluminum
Jacket: PVC
Sizes: 1.5~1000mm2
Insulation color: Red, yellow, green all according to clients demand
Number of cores: 3+1cores
Rated voltage: 0.6/1KV
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

2.Cable structure

- Stranded bare copper conductor according to IEC 60228

- Core insulation of XLPE (cross-linked polyethylene)

- Color coded cores according to HD 308.S2

- PVC inner sheath

- Outer black sheath, PVC self-extinguishing and flame retardant,

test method IEC 60332-1 and BS 4066 PT1

3.Technical data

- Power and control cable according to BS 5467, IEC 60502

- Temperature at conductor max. +90 °C

- Temperature during installation from 0 °C to +70 °C

- Nominal voltage U o /U 0,6/1 kV

- Test voltage a.c. 3.5 kV

- Minimum bending radius 12x cable diameter

4.Application

These power and control armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards or subscriber networks, where mechanical damages to the cable may occur.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
    Model Description
    YJV(YJLV) Copper(Aluminum) core XLPE insulated PVC sheathed power cable
    YJV22(YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and PVC sheathed power cable
    YJV32(YJLV32) Copper(Aluminum) core XLPE insulated steel wire armoured and PVC sheathed power cable
    ZR-YJV(ZR-YJLV) Copper(Aluminum) core XLPE insulated flame retardant PVC sheathed power cable
    ZR-YJV22(ZR-YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and flame retardant PVC sheathed power cable
    ZR-YJV32(ZR-YJLV32)

    Copper(Aluminum) core XLPE insulated steel wire armoured and flame retardant PVC sheathed power cable

  • Two cores(unarmoured) Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA)

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
2x1.5 1.38 0.7 1.8 10.0 125
2x2.5 1.76 0.7 1.8 11.5 155
2x4 2.25 0.7 1.8 12.5 195
2x6 2.76 0.7 1.8 13.5 255
2x10 4.0 0.7 1.8 15.5 370
2x16 5.0 0.7 1.8 17 0 500
2x25 6.3 0.9 1.8 20.0 700
2x35 7.4 0.9 1.8 22.0 900
2x50 8.8 1.0 1.8 25.0 1250
2x70 10.6 1.1 1.8 29.0 1600
2x95 12.4 1.1 1.9 32.0 2250
2x120 14.0 1.2 2.0 36.0 2750
2x150 15.5 1.4 2.2 40.0 3510
2x185 17.4 1.6 2.3 44.0 4200
2x240 20.3 1.7 2.5 50 .0 5500
2x300 22.7 1.8 2.6 55.0 6950
2x400 25.4 2.0 2.9 60.0 8400





Aluminium XLPE PVC Insulated Cables 300mm2 For Protecting And Measuring System (AL/PVC/LSZH/STA) 0
