Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 0.6/1KV Three Cores Power Cable (Armoured) XLPE Insulated
Payment & Shipping Terms
Minimum Order Quantity: 300 meters
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 12 days
Payment Terms: L/C, T/T,
Material: |
99.99% Oxyzen Free Copper |
Application: |
Power Station |
Insulation: |
XLPE |
Out Sheath Color: |
Black Or Customized |
Core: |
3 |
Cable Mark: |
Ink Printing Or Embossing Content Customized |
Characted: |
Armoured |
Voltage: |
0.6/1KV |
Material: |
99.99% Oxyzen Free Copper |
Application: |
Power Station |
Insulation: |
XLPE |
Out Sheath Color: |
Black Or Customized |
Core: |
3 |
Cable Mark: |
Ink Printing Or Embossing Content Customized |
Characted: |
Armoured |
Voltage: |
0.6/1KV |
0.6/1KV Low Voltage Three Cores Power Cable (Armoured) , XLPE Insulated Cable according to IEC 60502-1
Description:
0.6/1KV XLPE Insulated Cables (Armoured)
IEC60502,IEC60228,GB/T 12706.1-2008
CE,CCC,KEMA,ISO

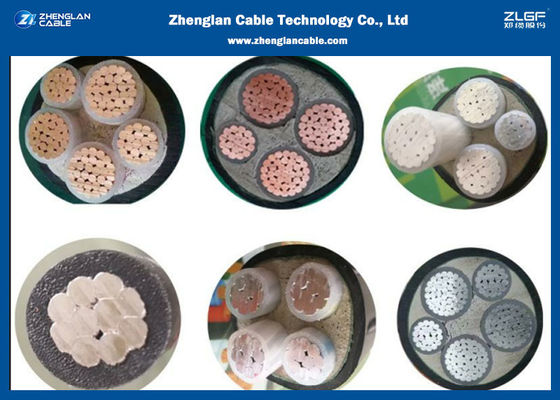

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Noted: Insulation color as per standards or customer requirement.
Application:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request
Certificates:
CE, ROHS,KEMA and more others at request
Insulation:
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
Colour Code Colour Code (1):
1 Core: Red or Black; 2 Cores: Red, Black; 3 Cores: Red, Yellow, Blue; 4 Cores: Red, Yellow, Blue, Black; 5 Cores: Red, Yellow, Blue, Black, Green; Above 5 Cores: Black Cores with White numerals
Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.
Armour:
Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths:
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
Cable Parameters:
Three Cores Power Cable (Armoured)
Nominal Area |
Approx Conductor Diameter |
Nominal Insulation thickness |
Nominal bedding thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Approx. Weight |
mm² | mm | mm | mm | mm | mm | mm | Kg/km |
3x1.5 | 1.38 | 0.7 | 1.2 | 0.9 | 1.8 | 15 | 380 |
3x2.5 | 1.76 | 0.7 | 1.2 | 0.9 | 1.8 | 15.5 | 400 |
3x4 | 2.25 | 0.7 | 1.2 | 0.9 | 1.8 | 16.5 | 460 |
3x6 | 2.76 | 0.7 | 1.2 | 0.9 | 1.8 | 18 | 540 |
3x10 | 4.0 | 0.7 | 1.2 | 0.9 | 1.8 | 19.5 | 750 |
3x16 | 5.0 | 0.7 | 1.2 | 1.25 | 1.8 | 22.5 | 1000 |
3x25 | 6.3 | 0.9 | 1.2 | 1.6 | 1.8 | 26 | 1510 |
3x35 | 7.4 | 0.9 | 1.2 | 1.6 | 1.8 | 28 | 1950 |
3x50 | 8.8 | 1.0 | 1.2 | 1.6 | 1.9 | 32 | 2350 |
3x70 | 10.6 | 1.1 | 1.2 | 2.0 | 2.0 | 35 | 3230 |
3x95 | 12.4 | 1.1 | 1.2 | 2 .0 | 2.1 | 39 | 4050 |
3x120 | 14.0 | 1.2 | 1.2 | 2.0 | 2.3 | 43 | 5230 |
3x150 | 15.5 | 1.4 | 1.4 | 2.5 | 2.4 | 47 | 6750 |
3x185 | 17.4 | 1.6 | 1.4 | 2.5 | 2.6 | 52 | 8230 |
3x240 | 20.3 | 1.7 | 1.5 | 2.5 | 2.7 | 59 | 10510 |
3x300 | 22.7 | 1.8 | 1.6 | 2.5 | 2.9 | 64 | 13210 |
3x400 | 25.4 | 2.0 | 1.6 | 2.5 | 3.2 | 74 | 16100 |
