Building And House Wire For IEC 60227 /GB/T5023.3-2008 Standard/BV Cable(450/750) PVC Insulated Use For Home Or Building

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: BV Cable(450/750) PVC insulated

Payment & Shipping Terms

Minimum Order Quantity: 100 meters

Packaging Details: Rolls or Customerised

Delivery Time: 5-10 days

Payment Terms: L/C, T/T,

Supply Ability: 5 Million one year

Get Best Price
High Light:

stranded copper wire

,

two core and earth cable

Material:
99.99% Oxygen Free Copper
Sheath:
PVC Insulated
Application:
Use For Home Or Building
Conductor Type:
Stranded
Colour:
Standard Or Customerised
Core:
1
Sign:
Standard Or Customerised
Material:
99.99% Oxygen Free Copper
Sheath:
PVC Insulated
Application:
Use For Home Or Building
Conductor Type:
Stranded
Colour:
Standard Or Customerised
Core:
1
Sign:
Standard Or Customerised
Building And House Wire For IEC 60227 /GB/T5023.3-2008 Standard/BV Cable(450/750) PVC Insulated Use For Home Or Building



BV Cable(450/750) PVC insulated cables twin and earth house wiring cable-ZR&NH&WDZR&FY



BV Cable Construction:
Conductor:
solid annealed copper class 1
Stranded copper, class 2
Insulation: PVC



450/750V Parameter

Core number/sectional area(mm²) Core no./diameter(mm) Outer diameter(mm) Weight (kg/km) 20℃conductor resistance(Ω/km)
Cu Al Cu Al
1×1.5(A) 1/1.38 3.2 20.3   12.1
1×1.5(B) 7/0.52 3.3 21.6   12.1
1×2.5(A) 1/1.78 3.9 31.6 17 7.41 11.80
1×2.5(B) 7/0.68 4.0 34.8   7.41
1×4(A) 1/2.25 4.4 47.1 22 4.61 7.39
1×4(B) 7/0.85 4.6 50.3
1×6(A) 1/2.76 5.0 50.3 29 3.08 4.91
1×6(B) 7/1.04 5.2 53.7   3.08
1×10 7/1.35 6.4 119 62 1.83 3.08
1×16 7/1.70 7.8 179 78 1.15 1.91
1×25 27/2.04 9.7 281 118 0.727 1.20
1×35 27/2.52 10.9 381 156 0.524 0.866
1×50 19/1.78 12.8 521 215 0.387 0.641
1×70 19/2.14 14.4 734 282 0.268 0.443
1×95 19/2.52 17.1 962 385 0.193 0.320
1×120 37/2.03 18.8 1180 431 0.153 0.253
1×150 37/2.25 20.9 1470 539 0.124 0.208
1×185 37/2.52 23.3 1810 666 0.0991 0.164



A--stands for solid annealed copper class 1; B-- stands for Stranded copper, class 2



BV Cable Electrical characteristics:
Rated voltage Uo/U (Um) : 300/500V; 450/750V
Test voltage: 2000V(300/500V); 2500V(450/750V)

BV Cable Standards:

300/500V---60227 IEC 05(BV) / GB/T5023.3-2008
450/750V---60227 IEC 01(BV) / GB/T5023.3-2008


Physical features:
Bending radius: 15 x Ø
Service temperature:+70℃,+90℃,105℃ available
Insulation resistance: 10 MΩ x km


BV Cable Application: These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings


Packing: 100m per roll (per coil or plastic reel, as your request)

Remarks: Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.
NH cable (fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.
LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable) is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.
Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.

BV Cable Data Sheet
300/500V

Core number/sectional area(mm²) Core no./diameter(mm) Outer diameter(mm) Weight(kg/km) 20℃conductor resistance(Ω/km)
1×0.5 1/0.80 2.3 8.5 36.0
1×0.75(A) 1/0.97 2.5 11.1 24.5
1×0.75(B) 7/0.37 2.6 12.0 24.5
1×1.0(A) 1/1.13 2.6 12.0 24.5
1×1.0(B) 7/0.43 2.7 13.9 18.1


A--stands for solid annealed copper class 1; B-- stands for Stranded copper, class 2

450/750V



Core number/sectional area

(mm²)

Insulation thickness(mm) Outer diameter(mm) 20℃conductor resistance(Ω/km) 70℃ minimum insulation resistance(mΩ/km)
1×0.75 0.7 2.9 36.0 0.013
1×1.0 0.7 3.1 18.1 0.012
1×1.5 0.7 3.4 12.1 0.011
1×2.5 0.8 4.1 7.41 0.011
1×4 0.8 4.8 4.61 0.009
1×6 0.8 5.3 3.08 0.0084
1×10 1.0 7.3 1.83 0.0072
1×16 1.0 8.6 1.15 0.0062
1×25 1.2 10.2 0.727 0.0058
1×35 1.2 11.7 0.524 0.0052

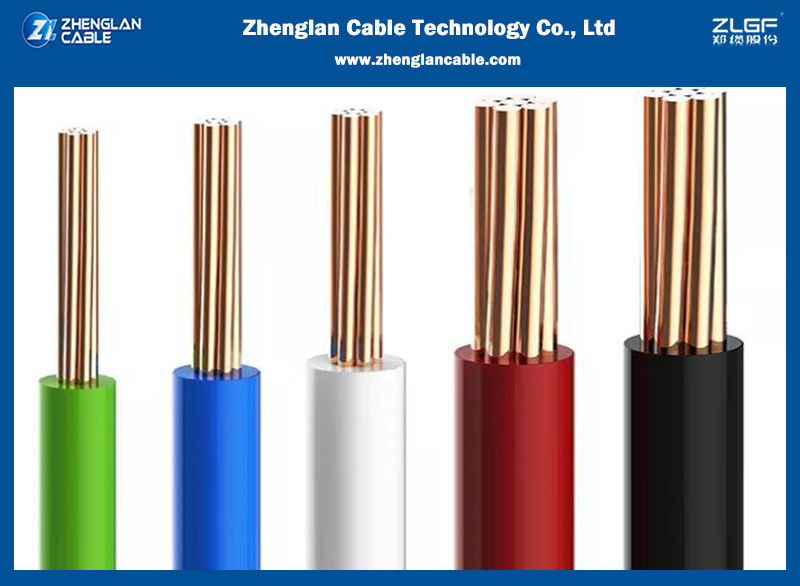

Product show
