Product Details:
|
| Material: | Copper | Sheath: | PVC / XLPE Insulated |
|---|---|---|---|
| Application: | For Electrical Machine | Colour: | Standard Or Customerised |
| Core: | 19 | ||
| High Light: | multi conductor control cable,power and control cable |
||
300V CVV 19C Electrical Control Cable 300/500V For IEC 60502 Type Cable(CVV/CVV-S/CVV-SWA)/Nominal Section:0.5~6mm²
IEC 60502 Type Cable
0.6/1 kV CVV
IEC 60502 (2-41 core)

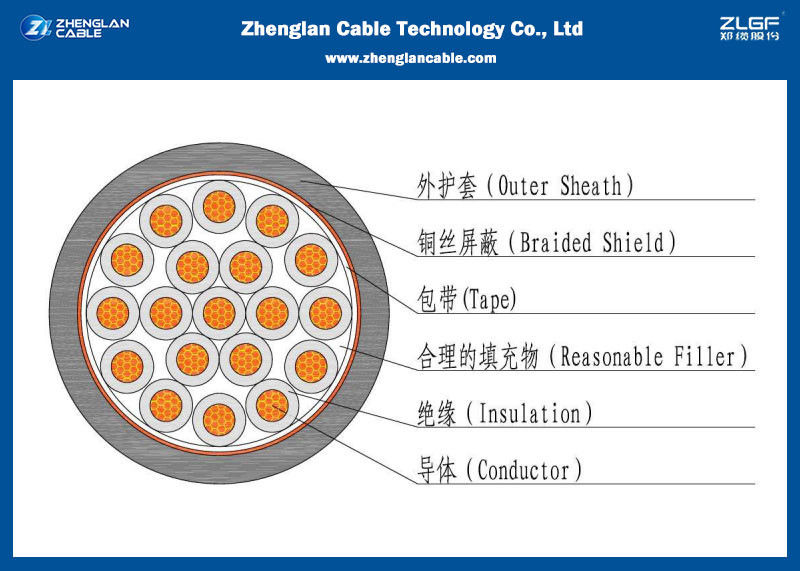

Conductor: Concentric Stranded copper wire
Insulation: PVC Black color
Identification : Printed White number on the surface of Black insulation
Filler: Suitable filler
Binding tape: Suitable tape
Sheath : PVC Black color
Electrical Control Cable Application: For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.
19 Core CVV Control Cable
| No. of core | Nominal cross- sectional area sq.mm |
No.& dia. of wires No./mm |
Thickness of insulation mm |
Thickness of sheath mm |
Overall diameter (Approx.) mm |
Maximum conductor resistance (at20C) Ohm/km |
Minimum insulation resistance (at70C) Ohm/km |
Cable weight (Approx.) kg/km |
Standard Length m |
| 19 | 0.5 | 7/0.30 | 0.8 | 1.8 | 18.0 | 36.0 | 0.0162 | 365 | 500/D |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 19.0 | 24.5 | 0.0142 | 445 | 500/D | |
| 1 | 7/0.40 | 0.8 | 1.8 | 19.5 | 18.1 | 0.0135 | 480 | 500/D | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 21.5 | 12.1 | 0.0115 | 620 | 500/D | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 24.0 | 7.41 | 0.0093 | 905 | 500/D | |
| 4 | 7/0.85 | 1.0 | 1.8 | 29.5 | 4.61 | 0.0092 | 1385 | 500/D | |
| 6 | 7/1.04 | 1.0 | 1.9 | 32.5 | 3.08 | 0.0078 | 1885 | 500/D |
