Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design

Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design
Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design
Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design

Large Image :  Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: BV
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters
Packaging Details: 100m in coil or as customized
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 70000m/day

Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design

Description
Conductor Material: 99.99% Oxygen-free Copper Application: Used In House Or Building
Shelf Life: 30 Years Conductor Type: Solid 1 Or Stranded Class 2
Sheathed: PVC Type ST5 Type: Insulated
Rate Voltage: 300/500V,450/750V Color: Blue, Red, White, Yellow, Black
High Light:

copper building wire

,

flexible building wire

300/500V non-flexible pvc insulated copper wire single solid core building wire


★ Product Introduction:

300/500V non-flexible pvc insulated single solid core building wire construction
conductor are solid or stranded, high conductivity plain annealed copper wires meeting the requirements of the class in BS 6360 and IEC 228 specifications for "Conductors in insulated cables with solid copper conductors are offered up to 1 Sq.mm.

The insulation of standard wiring cables is PVC grade Type T1 1 of Bs 7655 Formerly BS 6746) suitable for a maximum continous conductor operating temperature of 70C



★ Features:
Place of Origin:Henan, China (Mainland)
Brand Name: ZHENGLAN
Model Number: BV
Type: Insulated
Application: used in the fix installation
Shelf Life: 30 years
Color: Red/Yellow/Blue/Green/Black...
Insulation Material: PVC/XLPE
Packaging Details: 100m in coil or other as customized
Descriptions
Code designation: 60227 IEC (International)

★ Technical Parameters:

300/500V Single core Non- flexible copper wire Data sheet


Core number/sectional area(mm²) Core no./diameter(mm) Outer diameter(mm) Weight(kg/km) 20℃conductor resistance(Ω/km)
1×0.5 1/0.80 2.3 8.5 36.0
1×0.75(A) 1/0.97 2.5 11.1 24.5
1×0.75(B) 7/0.37 2.6 12.0 24.5
1×1.0(A) 1/1.13 2.6 12.0 24.5
1×1.0(B) 7/0.43 2.7 13.9 18.1


A--stands for solid annealed copper class 1; B-- stands for Stranded copper, class 2



★ Products show:

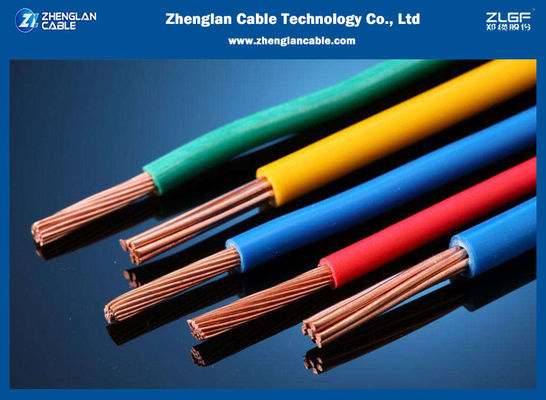

Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design 0

Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design 1



★ About us

We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.



The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.



Light Weight PVC Insulated Building Wire And Cable Single Solid Core Design 2



★ FAQ



A: Is your company a factory or a trade company?

B: Factory located in middle of China

A: How long can I expect to get the sample?

B: After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.

A:What are your payment terms?

B: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.

A: What’s the delivery time?

B: Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.

A: What is your MOQ?

B: Generally it is 5000m.
