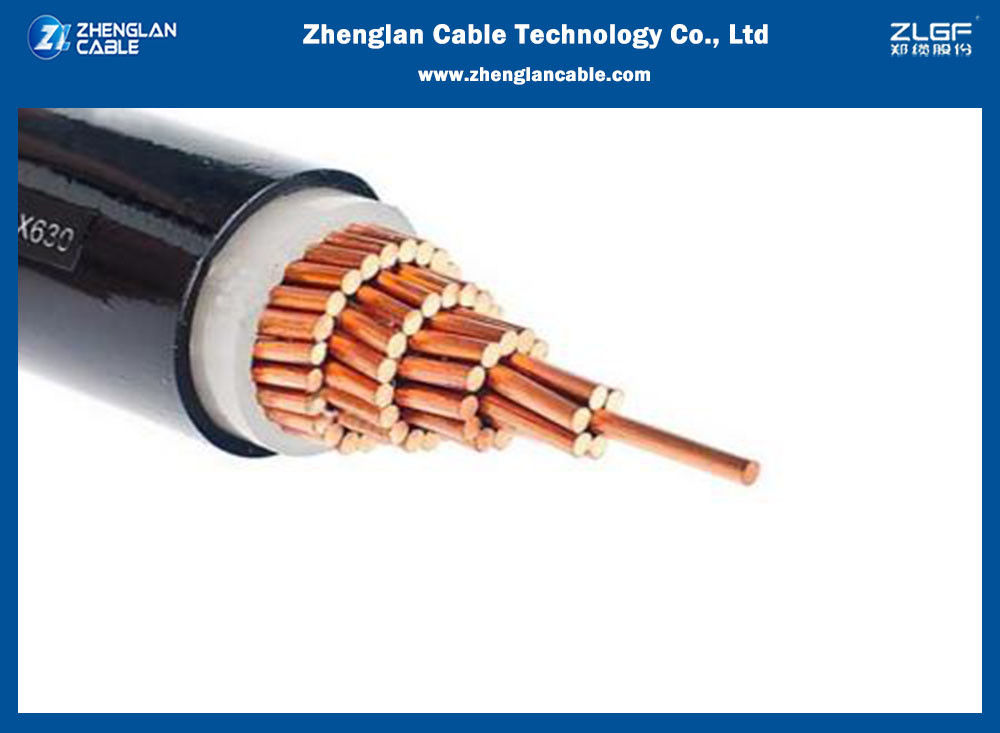

8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical

8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical
8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical
8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical 8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical 8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical 8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical 8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical

Large Image :  8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 18/30KV,8.7/15KV MV single/three Cores Power Cable (Unarmoured)
Payment & Shipping Terms:
Minimum Order Quantity: 300 meters
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 12-15 days for burk order
Payment Terms: L/C, T/T,

8.7 / 15KV Unarmoured Medium Voltage Power Cables Single / Three Core Electrical

Description
Material: CU Out Sheath Color: Black Or Customized
Core: 1/3 Cable Drum Length: 300~450 Meter Per Drum
Characted: Uarmoured Application: Construction
High Light:

medium voltage underground cable

,

xlpe medium voltage cables

18/30KV,8.7/15KV,Unarmoured Medium Voltage(MV) Single/Three Core Electrical Cables with XLPE insulation facture





Quick Details

Place of Origin:Henan, China

Brand Name:Zhenglan

Insulation Material:XLPE

Type:Medium Voltage

Application:Construction

Conductor Material:Aluminum

Jacket:PVC

Rated voltage:1-35KV

Conductor:Copper/Aluminum

Insulation:XLPE

Number of Cores:1 core,3 cores

Standard:IEC6,BS,VDE,AS/NZS

Package:Iron Or Wooden Drum

Supply Ability

Supply Ability:100000 Meter/Meters per Month

Packaging & Delivery

Packaging Details :Iron Or Wooden Drum

Port:Qingdao, Shanghai;



Construction:

Voltage: 3.6KV to 35kv

Conductor: Solid or stranded Copper/Aluminum,Stranded class 2

Insulation: XLPE (Cross-linked Polyethylene)

Inner sheath: PVC

Armour type: non-armoured;

Outer sheath: PVC /PE;

Colour: Black or according your request.

Nominal Cross-sectional Areas: 25 mm2, 35mm2, 50 mm2, 70mm2, 95 mm2, 120 mm2, 150 mm2, 185 mm2, 240 mm2,300 mm2, 400 mm2, 500 mm2, 630 mm2, 800 mm2



Usage Characteristics

Minimum installation temperature: 0°C ;Maximum installation temperature: +60°C

Installation type: Outdoor – Direct burial; Minimum operating temperature:-15°C

Maximum operating temperature: 90°C; Short-circuit max. conductor temperature: 250°C

Flame retardant: BS EN 60332 / IEC 60332-1



Standards:

IEC6,BS,VDE,UL,AS/NZS etc or others as per customer's country



Type Core Rate voltage kV
3.6/6,6/6 6/10,8.7/10 8.7/15,12/20 18/20,26/35
Nominal Cross Section mm2
YJV YJLV 1 25~300 25~300 35~300 50~300
YJV YJLV 3 25~300 25~400 35~300 50~300
Type Name Application
Cu conductor AL Conductor
YJV YJLV XLPE Insulated,PVC or PE S heathed Power Cable for laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid.


Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
