Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: RVV 300/500V (GB/T5023.3-2008 or 60227 IEC52）
Payment & Shipping Terms
Minimum Order Quantity: 100 meters
Packaging Details: 100m/roll, with wooden box, as customer's request.
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Conductor Material: |
99.99% Oxygen-free Copper |
Sheath: |
PVC |
Application: |
Used In The Switch Control |
Shelf Life: |
30 Years |
Color: |
Red/Yellow/Blue/Green/Black... |
Insulation: |
PVC |
Conductor Material: |
99.99% Oxygen-free Copper |
Sheath: |
PVC |
Application: |
Used In The Switch Control |
Shelf Life: |
30 Years |
Color: |
Red/Yellow/Blue/Green/Black... |
Insulation: |
PVC |
RVV 300/500V (GB/T5023.3-2008 or 60227 IEC)with the cores from 2~41/ PVC insulated and jacket
Application:
Mainly used in power lines, control lines and signal transmission lines for electrical appliances, instrumentation, electronic equipment and automation devices, specifically used in anti-theft alarm systems, building intercom systems, etc.
Construction
Conductor: flexible conductor class5 (GB/T 3956 class 5 or IEC60228.5)
Core number: 2core to 41core
Insulation: compound PVC
Outer sheath:compound PVC
Rated voltage
300/500V (GB/T5023.3-2008 or 60227 IEC52)
Service temperature: -30~ +70℃
Bending radius: 15D
Packaging: 100m/roll or as request
300/500V Parameter
|
Core number/sectional area (mm²) |
Insulation thickness(mm) | Outer sheath thickness(mm) | Outer diameter(mm) | 70℃minimum insulation resistance(mΩ/km) |
| 2×1.0 | 0.6 | 0.8 | 5.2×7.3 | 0.010 |
| 2×1.5 | 0.7 | 0.8 | 5.8×8.0 | 0.010 |
| 2×2.5 | 0.8 | 1.0 | 7.1×10.0 | 0.0090 |
| 2×4.0 | 0.8 | 1.0 | 7.9×11.6 | 0.0085 |
| 2×4.0 | 0.8 | 1.1 | 12.4 | 0.0070 |
| 2×6.0 | 0.8 | 1.1 | 8.8×13.4 | 0.0080 |
| 2×6.0 | 0.8 | 1.1 | 14.5 | 0.0080 |
| 2×10.0 | 0.8 | 1.2 | 14.3 | 0.056 |
| 3×4.0 | 0.8 | 1.2 | 13.5 | 0.0070 |
| 3×6.0 | 0.8 | 1.2 | 14.0 | 0.0070 |
| 4×4.0 | 0.8 | 1.2 | 14.6 | 0.0070 |
| 4×6.0 | 0.8 | 1.2 | 16.0 | 0.0060 |
| 4×10.0 | 1.0 | 1.4 | 19.0 | 0.0056 |
| 5×4.0 | 0.8 | 1.4 | 16.5 | 0.0070 |
| 5×6.0 | 1.0 | 1.4 | 17.5 | 0.0060 |
| 5×10.0 | 1.2 | 1.6 | 22.0 | 0.0056 |
| 6×0.75 | 0.4 | 0.8 | 9.6 | 0.011 |
| 6×1.0 | 0.6 | 1.0 | 11.0 | 0.010 |
| 6×1.5 | 0.7 | 1.1 | 13..3 | 0.010 |
| 6×2.5 | 0.8 | 1.2 | 15.8 | 0.0090 |
| 7×0.75 | 0.4 | 0.8 | 9.6 | 0.011 |
| 7×1.0 | 0.6 | 1.1 | 11.0 | 0.010 |
| 7×1.5 | 0.7 | 1.1 | 13.3 | 0.010 |
| 7×2.5 | 0.8 | 1.2 | 16.0 | 0.0090 |
| 8×0.75 | 0.4 | 1.0 | 10.6 | 0.011 |
| 8×1.0 | 0.6 | 1.2 | 13.2 | 0.010 |
| 8×1.5 | 0.7 | 1.2 | 14.2 | 0.010 |
| 10×0.5 | 0.4 | 1.0 | 10.5 | 0.012 |
| 10×0.75 | 0.4 | 1.0 | 13.2 | 0.011 |
| 10×1.0 | 0.6 | 1.2 | 14.5 | 0.010 |
| 10×1.5 | 0.7 | 1.4 | 16.7 | 0.010 |
| 10×2.5 | 0.8 | 1.5 | 20.0 | 0.009 |
| 12×0.5 | 0.4 | 1.0 | 11.0 | 0.012 |
| 12×0.75 | 0.4 | 1.2 | 13.2 | 0.011 |
| 15×0.75 | 0.4 | 1.2 | 14.0 | 0.011 |
| 15×1.0 | 0.6 | 1.2 | 15.5 | 0.010 |
| 16×0.75 | 0.4 | 1.2 | 14.0 | 0.010 |
| 16×1.0 | 0.6 | 1.2 | 15.5 | 0.010 |
| 19×0.75 | 0.4 | 1.2 | 15.0 | 0.011 |
| 19×1.0 | 0.6 | 1.2 | 17.8 | 0.010 |
| 20×0.5 | 0.4 | 1.2 | 14.0 | 0.012 |
| 20×0.75 | 0.4 | 1.2 | 15.5 | 0.011 |
| 20×1.0 | 0.6 | 1.2 | 18.3 | 0.010 |
| 24×0.75 | 0.4 | 1.2 | 17.0 | 0.011 |
| 24×1.0 | 0.6 | 1.2 | 20.5 | 0.010 |
| 25×0.75 | 0.4 | 1.2 | 17.1 | 0.011 |
| 25×1.0 | 0.6 | 1.2 | 20.8 | 0.010 |
| 30×0.75 | 0.4 | 1.4 | 19.5 | 0.011 |
| 30×1.0 | 0.6 | 1.4 | 22.6 | 0.010 |
| 37×0.75 | 0.4 | 1.4 | 21.6 | 0.011 |
| 37×1.0 | 0.6 | 1.4 | 23.0 | 0.010 |
| 40×0.75 | 0.4 | 1.4 | 21.8 | 0.011 |
| 40×01.0 | 0.6 | 1.4 | 25.5 | 0.010 |
| 41×0.75 | 0.4 | 1.4 | 22.5 | 0.011 |
| 41×0.75 | 0.6 | 1.4 | 27.0 | 0.010 |

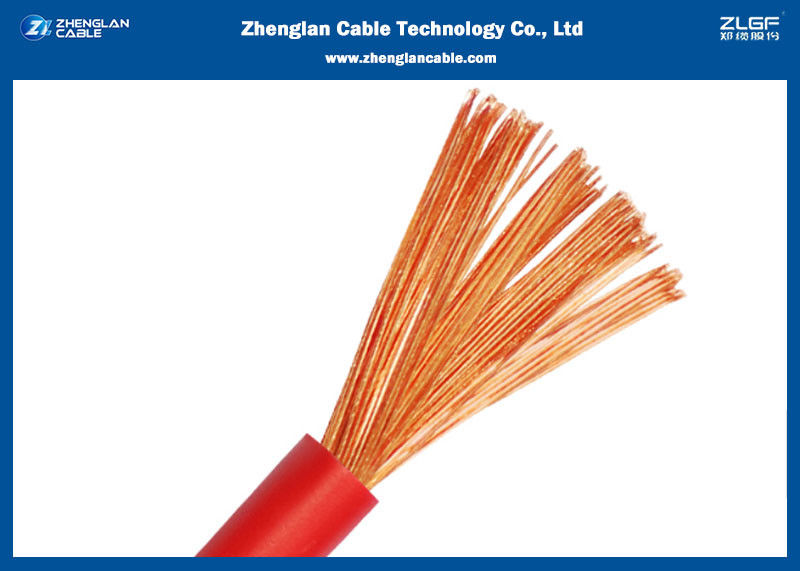

Prodyct show
Remarks: Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.
There are 3 grades of fire prevention available which are
Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.
Grade B Except the insulation material, all other materials are flame retardant.
Grade C Only the sheath material is flame retardant
NH cable (fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.
LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.
Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.
Why you choose us?
OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
FAQ:
Q1:Is your company a factory or a trade company?
Factory, more than 20 years in China
Q2:How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
Q3:What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
Q4:What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
Q5:What is your MOQ?
Generally it is 3000m.
