Home > Products > Bare Aluminum Conductor > Overhead Transmission All Aluminum Alloy Conductors / Durable AAAC Cables

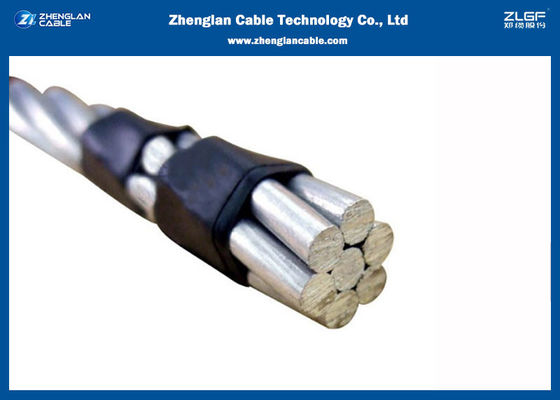

Overhead Transmission All Aluminum Alloy Conductors / Durable AAAC Cables

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: AAAC Overhead Bare Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Supply Ability: 100KM/Month

Get Best Price
Highlight:

all aluminum conductor

,

bare electrical wire

Material:
Aluminium Alloy
Size:
AWG,mm2 Or Customized
Quality:
100% Test
Standard::
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,CSA C49
Standard:
BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6
Material:
Aluminium Alloy
Size:
AWG,mm2 Or Customized
Quality:
100% Test
Standard::
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,CSA C49
Standard:
BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6
Overhead Transmission All Aluminum Alloy Conductors / Durable AAAC Cables

China Supply Overhead Transmission All Aluminum Alloy Conductors AAC Cables





AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.



Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Rated Voltage: 35kv/110kv/220kv/500kv
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized


Overhead Transmission All Aluminum Alloy Conductors / Durable AAAC Cables 0


Standard:
Construction as per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,CSA C49

Application:
AAAC (All Aluminum Alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes particularly favorable when ice and win loadings are low.



Technical parameters

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
  mm2 No.x mm mm Kg/Km KN Ω/Km A
16 18.4 7/1.83 5.49 50.4 5.43 1.7896 86
25 28.8 7/2.29 6.87 78.7 8.49 1.1453 113
40 46 7/2.89 8.67 125.9 13.58 0.7158 151
63 72.5 7/3.63 10.89 198.3 21.39 0.4545 200
100 115 19/2.78 13.9 316.3 33.95 0.2877 266
125 144 19/3.10 15.5 395.4 42.44 0.2302 305
160 184 19/3.51 17.55 506.1 54.32 0.1798 355
200 230 19/3.93 19.65 632.7 67.91 0.1439 407
250 288 19/4.39 21.95 790.8 84.88 0.1151 466
315 363 37/3.53 24.71 998.9 106.95 0.0916 535
400 460 37/3.98 27.86 1268.4 135.81 0.0721 618
450 518 37/4.22 29.54 1426.9 152.79 0.0641 663
500 575 37/4.45 31.15 1585.5 169.76 0.0577 706
560 645 61/3.67 33.03 1778.4 190.14 0.0516 755
630 725 61/3.89 35.01 2000.7 213.9 0.0458 809
710 817 61/4.13 37.17 2254.8 241.07 0.0407 866
800 921 61/4.38 39.42 2540.6 271.62 0.0361 928
900* 1036 91/3.81 41.91 2861.1 305.58 0.0321 992
1000* 1151 91/4.01 44.11 3179 339.53 0.0289 1051
1120* 1289 91/4.25 46.75 3560.5 380.27 0.0258 1118
1250* 1439 91/4.49 49.39 3973.7 424.41 0.0231 1185






Overhead Transmission All Aluminum Alloy Conductors / Durable AAAC Cables 1



Overhead Transmission All Aluminum Alloy Conductors / Durable AAAC Cables 2
The reason you choose us:

  • We are profeesional cable supplier for more than 10 years.
  • Not only provide you good-quality products,but also service you well.
  • We have high work efficency.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
