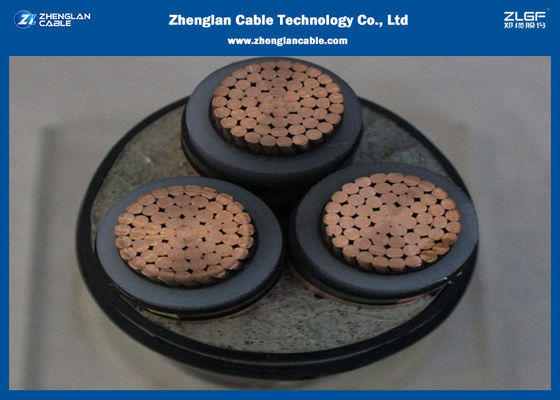

112/20KV Three Cores Armoured Power Cable , MV Power Cable MV IEC 60502/60228 Standard(CU/PVC/XLPE/LSZH/DSTA)

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 12/20KV Three Cores Power Cable (Armoured)

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiable

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 12 days

Payment Terms: L/C, T/T,

Get Best Price
Highlight:

underground armoured cable

,

multi core armoured cable

Material:
CU
Out Sheath Color:
Black Or Customized
Core:
3
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
Material:
CU
Out Sheath Color:
Black Or Customized
Core:
3
Cable Mark:
Ink Printing Or Embossing Content Customized
Cable Drum Length:
300~450 Meter Per Drum
Characted:
Armoured
112/20KV Three Cores Armoured Power Cable , MV Power Cable MV IEC 60502/60228 Standard(CU/PVC/XLPE/LSZH/DSTA)

12/20KV Medium Voltage Three Cores Power Cable (Armoured) , Insulated Cable according to IEC 60502/60228



Three Cores Power Cable APPLICATIONS:

The three core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1.8/3KV to 26/35KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.



Three Cores Power Cable STANDARD:

IEC 60502 Part 2(3.6/6KV to 18/30KV)



Three Cores Power Cable CONSTRUCTION:

Conductor: Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.

Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound applied on top of a semi-conducting tape. The conductor screen is applied under triple extrusion process over the conductor along with the insulation and the insulation screen. The extruded semi-conducting compound is firmly bonded to the insulation to exclude all air voids and can be easily hand stripped on site. The conductor screen is not necessary for both PVC and EPR/HEPR insulated 1.8/3.6KV and 3.6/6KV cables.



Insulation: Insulation is of polyvinyl chloride (PVC) intended for 1.8/3.6KV and 3.6/6KV cables, cross-linked polyethylene compound (XLPE)



Noted:Three Core Cables to BS 6622/BS 7835/IEC 60502/VDE 0276



Three Cores Power Cable Properties

Special features which we can offer for MV cables:

l Watertight construction (both radial and longitudinal).

l Lead sheath available for options.

l Resistant to heavy vibration.

l Available in long delivery lengths to reduce number of joints.

l Copper or aluminum conductor up to 630mm².

l Metallic sheath and radial moisture barrier made of copper wire or tape.

l Different options for outer PE jackets (LDPE, MDPE & HDPE).

l Different options for LSF, LSZH & FRPVC, being anti-termite or UV resistant as per BS 7835, IEC 60332 etc.

l Strippable insulation screen.

l Metallic screen made of multiple layers of copper tapes or a combination of copper wires and tapes to increase the earth fault current carrying capacity.

l Increased armour conductivity by insertion of hard drawn copper wires in armour.

Cable Construction

medium voltage cables are manufactured using the monosil process. We provide the highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of PVC insulated cables for use up to 6KV and XLPE/EPR insulated cables for use at voltages up to 35 KV. The materials are all kept in cleanliness-controlled conditions throughout the production process in order to ensure the absolute homogeneity of the finished insulation materials.

Conductors

Either aluminium or copper conductors are used. Conductors up to 630mm² will be circular, compacted & stranded and shall comply with IEC 60228 class 2. 630mm² conductor will be circular stranded type on which a layer of semi-conducting tape will be applied.



Conductor Screen

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field. By careful material selection and special attention to process parameters, we produce the insulation screen layers with the required degree of stripping force as stipulated by the applicable national or international standard.

Insulation

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.



Inner Sheath (Bedding) for Armoured Cables

Extruded layer of PVC or PE is applied over the laid up cores for armoured cables. PVC is normally of grade ST2 and PE of grade ST7 as per IEC 60502 Part 2.

Armouring

In case of armoured cables, the armour is applied helically over inner sheath. For single core cables, it is of aluminium wires and for multicore cables, the armour can be of one among the following options:

a) Galvanized steel wire.

b) Galvanized steel tape.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE. our

medium voltage cables are normally supplied with red PVC over sheaths complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.



Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.



Cable Parameters:
12/20KV Medium Voltage Three Cores Power Cable (Amoured)





Nom.

Cross-

Section

Area

  Unarmoured Cables Aluminium Wire Armoured Cables

Nom.

Insulation

Thickness

Copper

Tape

Thickness

Copper

Wire

Screen

Area*

Nom.

Sheath

Thickness

Approx.

Overall

Diameter



Nom.

Bedding

Thickness

Armour

Wire

Size

Nom.

Sheath

Thickness

Approx.

Overall

Diameter



mm² mm mm mm² mm mm kg/km mm mm mm mm kg/km
25 5.5 0.1 16 1.8 24 720 560 1.2 1.6 1.8 29 1200 980
35 5.5 0.1 16 1.8 25 840 620 1.2 1.6 1.9 30 1350 1070
50 5.5 0.1 16 1.8 26 990 690 1.2 2.0 2.0 33 1550 1250
70 5.5 0.1 16 1.8 28 1230 800 1.2 2.0 2.1 35 1840 1420
95 5.5 0.1 16 1.9 30 1530 940 1.2 2.0 2.1 37 2160 1570
120 5.5 0.1 16 2.0 31 1810 1050 1.2 2.0 2.2 38 2470 1730
150 5.5 0.1 25 2.0 33 2110 1190 1.2 2.0 2.2 40 2810 1890
185 5.5 0.1 25 2.1 35 2510 1360 1.2 2.0 2.3 42 3240 2090
240 5.5 0.1 25 2.1 38 3130 1610 1.3 2.5 2.4 45 4150 2580
300 5.5 0.1 25 2.2 40 3760 1860 1.3 2.5 2.5 48 4800 2890
400 5.5 0.1 35 2.3 43 4650 2220 1.4 2.5 2.6 52 5780 3350
500 5.5 0.1 35 2.4 46 5530 2545 1.5 2.5 2.7 55 6850 3850
630 5.5 0.1 35 2.5 50 6700 3100 1.5 2.5 2.9 60 8380 4400



OEM/ODM services provided;Why Choose Zhenglan Cable:

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
