Product Details
Place of Origin: China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: 0.6/1KV Low Smoke Zero Halogen Cables Five Cores Cable
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum, as customer's request
Delivery Time: 15 days
Payment Terms: L/C, T/T,
Material: |
Copper |
Armoured: |
STA Or SWA |
Cores: |
4 Cores |
Standard: |
IEC 60502 |
Insulation: |
XLPE |
Jacket: |
PVC |
Voltage: |
0.6/1kv |
Characterstic: |
LSZH/LSOH |
Material: |
Copper |
Armoured: |
STA Or SWA |
Cores: |
4 Cores |
Standard: |
IEC 60502 |
Insulation: |
XLPE |
Jacket: |
PVC |
Voltage: |
0.6/1kv |
Characterstic: |
LSZH/LSOH |

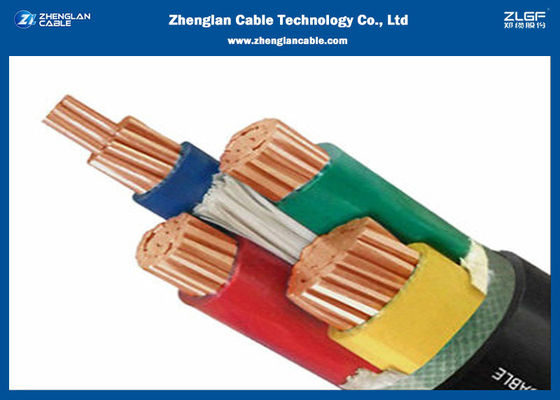

0.6/1KV 4 Cores LSZH Power Cable / Cu(AL)/XLPE/SWA/PVC LV Armoured Cable Application
Cu(AL)/XLPE/SWA/PVC LV armoured Cable is a aluminum or copper cable with XLPE insulation SWA Armour. They are used for power networks, direct burial, outdoors, indoors and in cable ducts for electricity supply in low voltage installation system
Cu(AL)/XLPE/SWA/PVC LV armoured Cable construction
Conductors: Plain annealed stranded copper
Insulation: XLPE (Cross linked polyethylene)
Bedding: PVC (Polyvinyl-Chloride)
Armour/Protection: SWA (Galvanised single wire armour)
Sheath/Jacket: PVC (Polyvinyl-Chloride)
Colour: Black
Voltage: 600/1000v
Operating temperature: Maximum 90°C. Minimum bending 0°C
Standard:
BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V
IEC60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV
Flame Propagation Test to BS EN 60332-1-2 for single cable
Cu(AL)/XLPE/SWA/PVC LV armoured Cable parameters
|
Nominal Area |
Approx Conductor Diameter |
Nominal Insulation thickness |
Nominal bedding thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Approx. Weight |
| mm² | mm | mm | mm | mm | mm | mm | Kg/km |
| 4x1.5 | 1.6 | 0.7 | 1 | 0.9 | 1.8 | 15 | 415 |
| 4x2.5 | 2 | 0.7 | 1 | 0.9 | 1.8 | 17.5 | 490 |
| 4x4 | 2.6 | 0.7 | 1 | 0.9 | 1.8 | 19 | 600 |
| 4x6 | 3.1 | 0.7 | 1 | 0.9 | 1.8 | 20 | 730 |
| 4x10 | 4 | 0.7 | 1 | 1.25 | 1.8 | 23 | 970 |
| 4x16 | 5 | 0.7 | 1 | 1.6 | 1.8 | 26 | 1520 |
| 4x25 | 6.3 | 0.9 | 1 | 1.6 | 1.8 | 29 | 2010 |
| 4x35 | 7.4 | 0.9 | 1 | 1.6 | 1.9 | 31 | 2560 |
| 4x50 | 8.8 | 1 | 1 | 1.6 | 2.1 | 36 | 3350 |
| 4x70 | 10.6 | 1.1 | 1.2 | 2 | 2.2 | 40 | 4680 |
| 4x95 | 12.4 | 1.1 | 1.2 | 2 | 2.4 | 44 | 5710 |
| 4x120 | 14 | 1.2 | 1.4 | 2.5 | 2.5 | 50 | 7500 |
| 4x150 | 15.5 | 1.4 | 1.4 | 2.5 | 2.6 | 55 | 9010 |
| 4x185 | 17.4 | 1.6 | 1.4 | 2.5 | 2.8 | 61 | 10820 |
| 4x240 | 20.3 | 1.7 | 1.6 | 2.5 | 3.1 | 69 | 13630 |
| 4x300 | 22.7 | 1.8 | 1.6 | 2.5 | 3.2 | 75 | 16820 |
| 4x400 | 25.4 | 2 | 1.8 | 3.15 | 3.4 | 83 | 22230 |
