LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable

LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable
LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable

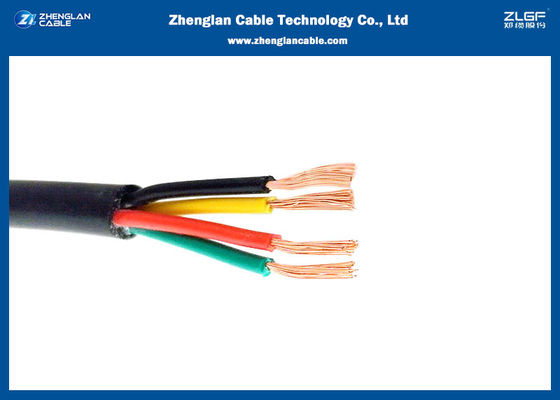

Large Image :  LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: KVV22
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls or Customerised
Delivery Time: 10 days based on one of 20 ft container
Payment Terms: L/C, T/T,
Supply Ability: 2 million one month

LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable

Description
Name: Electrical Control Cable Insulation: PVC Insulated
Application: Station Control Circuits Colour: Standard Or Customerised
Core: 2-37 Character: Armoured
Running Voltage: 450/750V;0.6/1KV Conductor: Class 5 Copper Wire
Jacket: PVC Armour: STA
High Light:

1KV multicore control cable

,

LSZH flexible control cable

LSZH Flexible Copper XLPE/PVC Electrical Control Cable up to 1KV



IEC 60502 Type Cable


IEC 60502 (2-37 core)

Conductor: Concentric Stranded copper wire
Insulation: PVC Black color
Identification : Printed White number on the surface of Black insulation
Filler: Suitable filler
Binding tape: Suitable tape
Sheath : PVC Black color
Application: For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable 0

2 Core KVV22 Control Cable



No.of core Nominal cross-sectional area sq.mm No.&dia.of wires No./mm Thickness of insulation mm Thickness of inner sheath mm Thickness of outer sheath mm Overall diameter (Approx.)
mm
Maximum conductor resistance (at 20C)
Ohm/km
Minimum insulation resistance
(at 70C)
Ohm/km
Cable weight
(Approx.)
kg/km
Standard Length
m
2 0.5 7/0.30 0.8 1.0 1.8 12.5 36.0 0.0162 180 500/D
0.75 7/0.37 0.8 1.0 1.8 13.0 24.5 0.0142 195 500/D
1 7/0.40 0.8 1.0 1.8 13.0 18.1 0.0135 205 500/D
1.5 7/0.50 0.8 1.0 1.8 14.0 12.1 0.0115 230 500/D
2.5 7/0.67 0.8 1.0 1.8 15.0 7.41 0.0093 280 500/D
4 7/0.85 1.0 1.0 1.8 17.0 4.61 0.0092 375 500/D
6 7/1.04 1.0 1.0 1.8 18.5 3.08 0.0078 450 500/D


LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable 1



LSZH Flexible Copper XLPE/PVC 1KV Electrical Control Cable 2

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
