Home > Products > Bare Aluminum Conductor > Overhead 50mm2 With Structure 7/3.3mm Under BS50182 AAAC Conductor

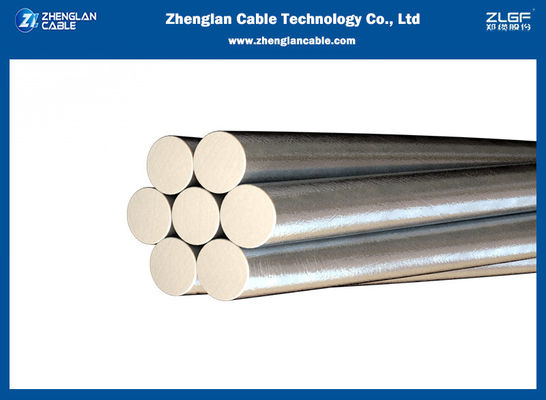

Overhead 50mm2 With Structure 7/3.3mm Under BS50182 AAAC Conductor

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: Bare Aluminum Conductor

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Supply Ability: 100KM/Month

Get Best Price
Highlight:

7/3.3mm all aluminium alloy conductor

,

BS50182 bare aluminum wire

Material:
Aluminium Alloy
Size:
35mm2
Quality:
BS Standard
Standard::
Construction As Per BS 50182
Brand:
Zhenglan Cable
Material:
Aluminium Alloy
Size:
35mm2
Quality:
BS Standard
Standard::
Construction As Per BS 50182
Brand:
Zhenglan Cable
Overhead 50mm2 With Structure 7/3.3mm Under BS50182 AAAC Conductor

Overhead conductor AAAC 50mm2 with structure 7/3.3mm under BS50182





APPLICATION

AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.



STANDARD

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.



CONSTRUCTION

AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.

This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.





ELECTRICAL PROPERTIES

density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
resistivity@20°C 0.0326 Ohms mm2/m
linear Expansivity 23 x10-6 (°C)







SERVICE CONDITIONS

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 - 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%



Bare all aluminum alloy conductor AAAC 50mm2 with stranding7/3.3mm technical data



AAAC conductor

Bare all aluminum alloy conductor AAAC 50mm2 with stranding7/3.3mm package



Overhead 50mm2 With Structure 7/3.3mm Under BS50182 AAAC Conductor 1

Bare all aluminum alloy conductor AAAC 50mm2 with stranding7/3.3mm test

Overhead 50mm2 With Structure 7/3.3mm Under BS50182 AAAC Conductor 2



Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.



FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
