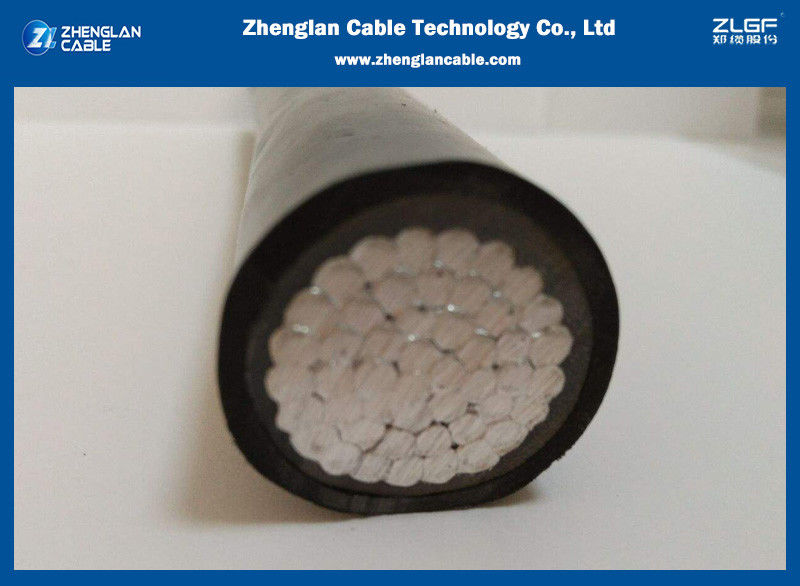

Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable

Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable
Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable
Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable

Large Image :  Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 0.6/1KV AL/xlpe/pvc
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: 0.3USD-2USD/m
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15days
Payment Terms: L/C, T/T,
Supply Ability: 10000m/day

Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable

Description
Material: AL Insulation: Xlpe
Out Sheath Color: Black Or Customized Core: 1
Cable Length: As Per Requirement Voltage: 0.6/1kv
Character: Unarmoured Sheath: Pvc, Pe, Lsoh
High Light:

1Cx185sqmm Single Core Aluminum Cable

,

XLPE Single Core Aluminum Cable

,

1Cx185sqmm single core aluminium wire

Low voltage xlpe insulated pvc sheathed single core aluminum cable 1Cx185sqmm





Construction:

Conductors: Copper , round standed or Shaped, Class 2 to IEC 60228, BS EN 60228.



Noted: Insulation color as per standards or customer requirement.



Application:

These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706.2-2008

Other standards such as BS7870,DIN and ICEA upon request





Insulation:

XLPE Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.



Colour Code Colour Code:

1 Core: Red or Black;

2 Cores: Red, Black;

3 Cores: Red, Yellow, Blue;

4 Cores: Red, Yellow, Blue, Black;

5 Cores: Red, Yellow, Blue, Black, Green;

Above 5 Cores: Black Cores with White numerals



Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.



Low voltage xlpe insulated pvc sheathed single core aluminum cable 1Cx185sqmm​ Parameters:

Single core(unarmoured)

Nominal

Cross

Section

Diameter of Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
1x4 2.25 1.0 1.4 7.5 95
1x6 2.76 1.0 1.4 8.0 120
1x10 4.0 1.0 1.4 9.0 165
1x16 5.0 1.0 1.4 10.0 230
1x25 6.3 1.2 1.4 12.0 340
1x35 7.4 1.2 1.4 13.0 450
1x50 8.8 1.4 1.4 14.5 570
1x70 10.6 1.4 1.4 16.0 800
1x95 12.4 1.6 1.5 18.5 1070
1x120 14.0 1.6 1.5 20.0 1200
1x150 15.5 1.8 1.6 22.0 1600
1x185 17.4 2.0 1.7 24.0 1980
1x240 20.3 2.2 1.7 27.0 2560
1x300 22.7 2.4 1.8 30.0 3180
1x400 25.4 2.6 1.9 33.0 4060
1x500 28.8 2.8 2.0 37.0 5140
1x630 30.4 2.8 2.2 42.0 6600



Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable 0





Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable 1



Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable 2

Test equipment

Xlpe Insulated Pvc Sheathed 1Cx185sqmm Single Core Aluminum Cable 3





Why Choose Zhenglan Cable:



  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
