|Name:||12kv XLPE Insulated HDPE Sheathed Aerial Spaced Cable 1Cx95sqmm||Structure:||AL/XLPE/HDPE|
|Conductor Material:||Aluminum||Insulation Material:||XLPE|
|Outer Sheath Color:||Black||Application:||Overhead Transmission Use|
|Quality:||Confirm To IEC60502-2||Standard:||ISO 9001:2015|
1Cx95sqmm SAC Cable,
12kv SAC Cable,
1Cx95sqmm spaced aerial cable
12kv XLPE insulated HDPE sheathed aerial spaced cable 1Cx95sqmm
Description of 12kv XLPE insulated HDPE sheathed aerial spaced cable 1Cx95sqmm
Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield: Semi-conducting cross-linkedin polythylene
Insulation: cross-linked polyethylene
Sheath: high density polyethylene
Operating voltage: 10kV, 11kv 15kv 24kv 25kv 35kv
Max. permissible continuous operating temperature of conductor with XLPE insulation: 90°C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250°C
The ambient temperature under installation should not be lower than: -20°C
The bending radius of cable is recommended as following:
Single core cable: not less than 20 times of the diameter of cable
Multi-core cable: not less than 15 times of the diameter of cable
XLPE insulated aerial cable as a new-type aerial cable is used for overhead electric power transmission and distribution, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA
12kv XLPE insulated HDPE sheathed aerial spaced cable 1Cx95sqmm technical parameters with reference to IEC60502
|Nominal cross sectional area||Diameter of conductor||Thickness of insulation||Thickness of outer sheath||Approx. overall diameter||DC resistance of conductor at 20oC||Approx. weight|

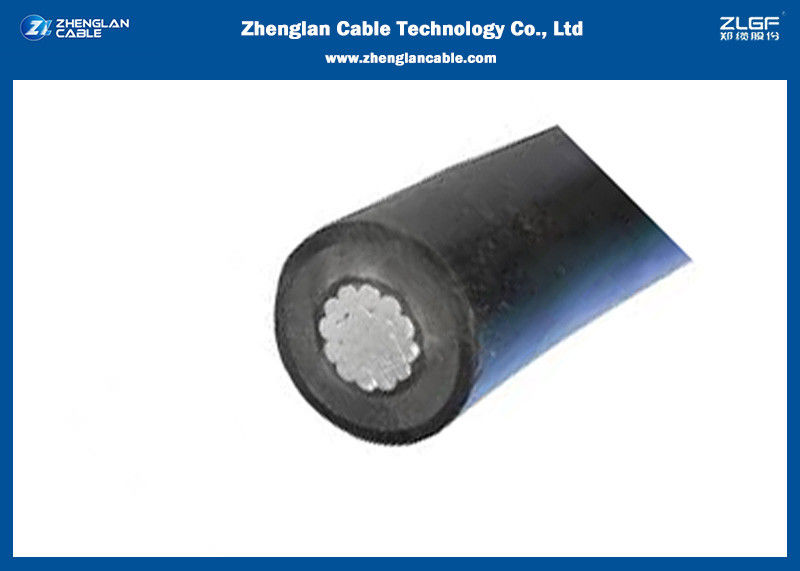

12kv XLPE insulated HDPE sheathed aerial spaced cable 1Cx95sqmm images
12kv XLPE insulated HDPE sheathed aerial spaced cable 1Cx95sqmm packages
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.
Our main products are
overhead power transmission use bare conductor(ACSR, AAC, etc)
1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
450/750V instrument use control cable (shielded or unshielded)
300/300V, 300/500V, 450/750V fixed installation use building wire
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
