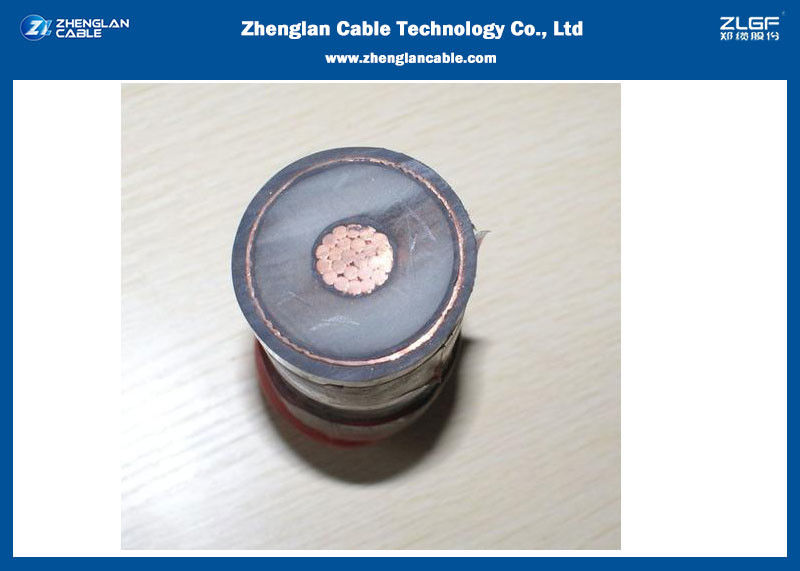

6/10KV Copper or Aluminum Conductor XLPE Insulated 120mm² MV Cables
APPLICATIONS:
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.
STANDARD:
IEC 60228 Conductors of insulate cables
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV)
Noted:Single Core Cables to BS 6622/BS 7835/IEC 60502/VDE 0276
Cable Construction
Cable Parameters:
6/10KV Medium Voltage Single Core Power Cable (Amoured)
Nom. Cross-Section Area |
Aluminium Wire Armoured Cables | |||||
Nom. Bedding Thickness | Armour Wire Size | Nom. Sheath Thickness | Approx. Overall Diameter | kg/km | ||
mm² | mm | mm | mm | mm | ||
16 | 1.2 | 1.6 | 1.8 | 24 | 770 | 670 |
25 | 1.2 | 1.6 | 1.8 | 25 | 910 | 750 |
35 | 1.2 | 1.6 | 1.8 | 26 | 1040 | 820 |
50 | 1.2 | 1.6 | 1.8 | 28 | 1190 | 900 |
70 | 1.2 | 1.6 | 1.9 | 29 | 1470 | 1040 |
95 | 1.2 | 1.6 | 2 | 31 | 1780 | 1190 |
120 | 1.2 | 2 | 2 | 34 | 2150 | 1410 |
150 | 1.2 | 2 | 2.1 | 35 | 2480 | 1560 |
185 | 1.2 | 2 | 2.1 | 37 | 2890 | 1730 |
240 | 1.2 | 2 | 2.2 | 40 | 3570 | 2050 |
300 | 1.2 | 2 | 2.3 | 42 | 4230 | 2330 |
400 | 1.3 | 2.5 | 2.4 | 47 | 5320 | 2890 |
500 | 1.4 | 2.5 | 2.5 | 51 | 6510 | 3530 |
630 | 1.5 | 2.5 | 2.6 | 56 | 7960 | 4050 |
