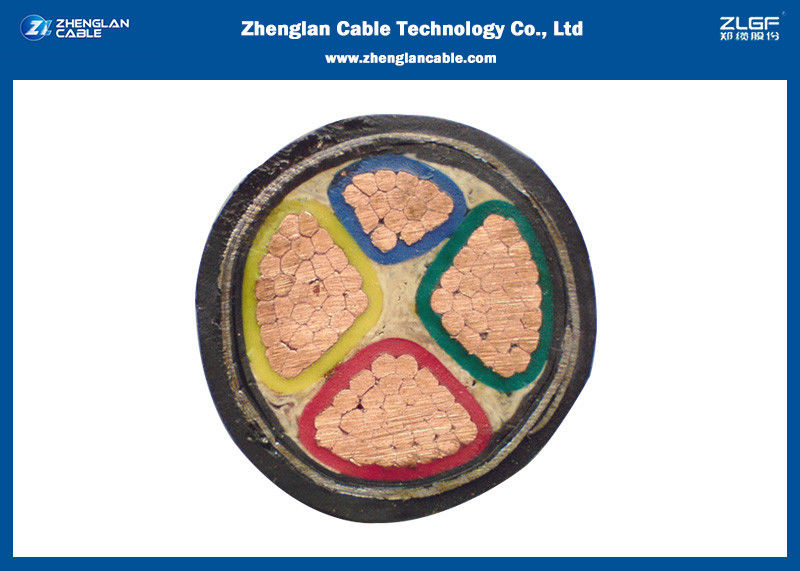

1kv STA Armored 4Cx50sqmm LV Underground Cable

1kv STA Armored 4Cx50sqmm LV Underground Cable
1kv STA Armored 4Cx50sqmm LV Underground Cable
1kv STA Armored 4Cx50sqmm LV Underground Cable 1kv STA Armored 4Cx50sqmm LV Underground Cable 1kv STA Armored 4Cx50sqmm LV Underground Cable

Large Image :  1kv STA Armored 4Cx50sqmm LV Underground Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 0.6/1KV cu/xlpe/pvc/sta(swa)/pvc
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: 0.3USD-2USD/m
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15days
Payment Terms: L/C, T/T,
Supply Ability: 10000m/day

1kv STA Armored 4Cx50sqmm LV Underground Cable

Description
Voltage: 0.6/1kv Material: CU
Insulation: Xlpe Character: Sta/swa Armoured
Sheath: Pvc Core: 4
Out Sheath Color: Black Or Customized Cable Length: As Per Requirement
Name: 1kv Flame Retardant STA Armored Cable 4Cx50sqmm LV Underground Cable Feature: Flame Retardant
High Light:

4Cx50sqmm LV Underground Cable

,

1kv LV Underground Cable

,

4Cx50sqmm copper armoured cable

Flame retardant 1kv 4Cx50sqmm LV STA armored underground power cable



Application:

0.6/1kv 4x50sqmm STA / SWA armored power cable are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



0.6/1kv 4x50sqmm STA / SWA armored power cable  Construction:

Conductors: Copper , round standed or Shaped, Class 2 to IEC 60228, BS EN 60228.



Core colours

without yellow-green core

2-cores: brown, blue

3-cores: brown, black, grey

4-cores: brown, black, grey, blue

with yellow-green core

3-cores: brown, blue, yellow-green

4-cores: brown, black, grey, yellow-green

5-cores: brown, black, grey, yellow-green, blue

Noted: Insulation color as per standards or customer requirement.





0.6/1kv 4x50sqmm STA / SWA armored power cable reference Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706.2-2008

Other standards such as BS7870,DIN and ICEA upon request





Insulation:

0.6/1kv 4x50sqmm STA / SWA armored power cable are XLPE Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.





Outer Sheath:  Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths:  0.6/1kv 4x50sqmm STA / SWA armored power cable  can be designed with special fire resistance PVC outer sheath to comply with the flame test requirements of IEC 60331 or flame retardant feature according to IEC60332,

Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards are also available



0.6/1kv 4x50sqmm STA / SWA armored power cable ​ Parameters:

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
4x1.5 1.38 0.7 1.8 11 170
4x2.5 1.76 0.7 1.8 12 230
4x4 2.25 0.7 1.8 14 305
4x6 2.76 0.7 1.8 15.5 400
4x10 4.0 0.7 1.8 18 585
4x16 5.0 0.7 1.8 20 835
4x25 6.3 0.9 1.8 22 1210
4x35 7.4 0.9 1.8 24.5 1670
4x50 8.8 1.0 1.8 26.5 2250
4x70 10.6 1.1 2.0 32 3015
4x95 12.4 1.1 2.1 36.5 4085
4x120 14.0 1.2 2.3 40.5 5320
4x150 15.5 1.4 2.4 44.5 44.5 6510
4x185 17.4 1.6 2.6 51 8050
4x240 20.3 1.7 2.8 58.5 58.5 10520
4x300 22.7 1.8 3 64.5 13130
4x400 25.4 2.0 3.3 73.5 16850





0.6/1kv 4x50sqmm STA / SWA armored power cable  reference images



1kv STA Armored 4Cx50sqmm LV Underground Cable 0

1kv STA Armored 4Cx50sqmm LV Underground Cable 1





1kv STA Armored 4Cx50sqmm LV Underground Cable 2

1kv STA Armored 4Cx50sqmm LV Underground Cable 3



Test equipment

1kv STA Armored 4Cx50sqmm LV Underground Cable 4



About zhenglan cable company



Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

1kv STA Armored 4Cx50sqmm LV Underground Cable 5



Why Choose Zhenglan Cable:



  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.



FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 1000-5000m.
